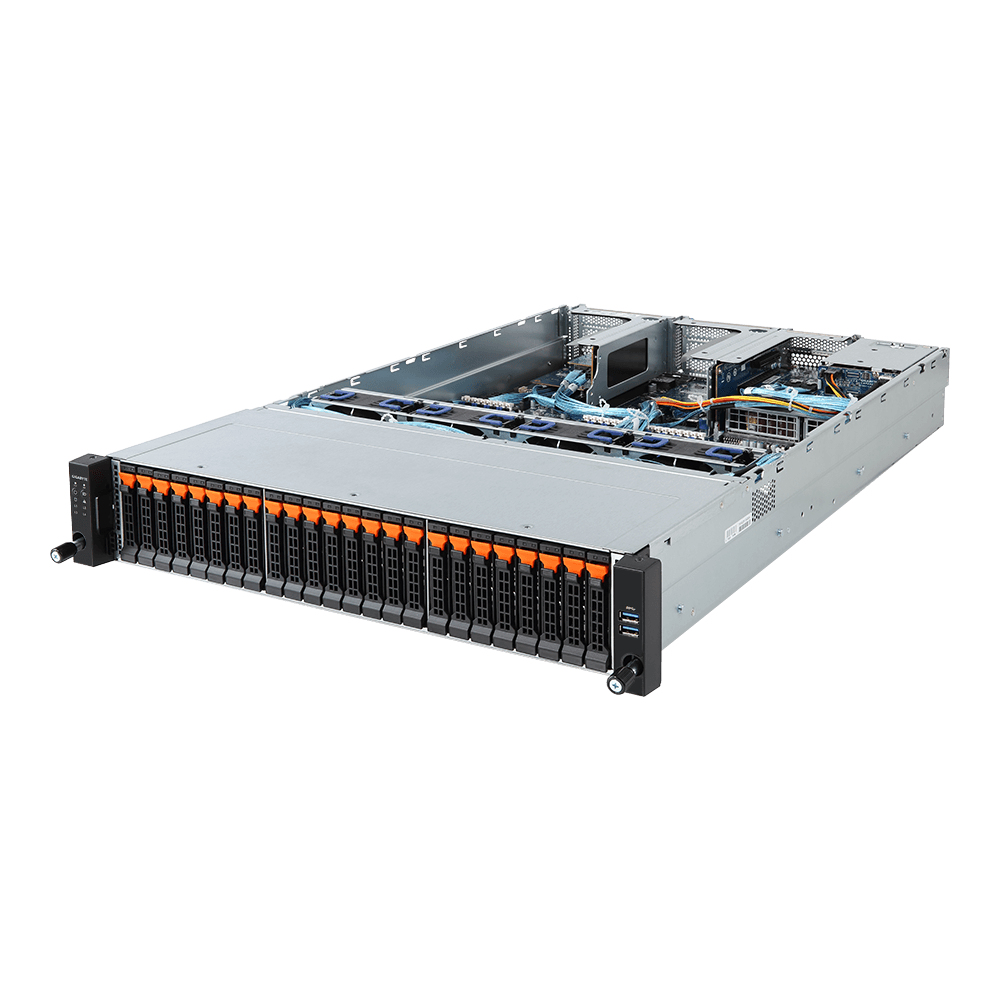

R281-Z92 Socket SP3 Rack (2U)
Model R281-Z92Part no. 6NR281Z92MR-00EAN 4719331181284
41 specifications
- Weight22 kg
- Built-in processorNo
- Number of DIMM slots32
- Number of storage drives supported26
- Ethernet LANYes
- USB 2.0 ports quantity0
Overview
- Weight
- 22 kg
- Built-in processor
- No
- Number of DIMM slots
- 32
- Number of storage drives supported
- 26
- Ethernet LAN
- Yes
- USB 2.0 ports quantity
- 0
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- R281-Z92
- Part numbers
- 6NR281Z92MR-00, 6NR281Z94MR-00, 6NR281Z92MR-00-2
- EAN / UPC
- 4719331181284, 4719331191016
- Also known as
- GIGABYTE R281-Z92 Socket SP3 Rack (2U)
Specifications
41 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor socket | Socket SP3 |
| Number of processors supported | 2 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 32 |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 128 GB |
| Maximum RDIMM memory | 64 GB |
| Supported RDIMM clock speeds | 2933,3200 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 26 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 26 |
| Supported storage drive types | HDD & SSD |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Fan diameter | 8 cm |
| Number of fans | 4 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 1600 W |
| Number of main power supplies | 2 |
| Number of redundant power supplies installed | 2 |
| AC input frequency | 50 - 60 Hz |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 710 mm |
| Height | 87 mm |
| Weight | 22 kg |
| Width | 438 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 982 mm |
| Package depth | 588 mm |
| Package height | 268 mm |
