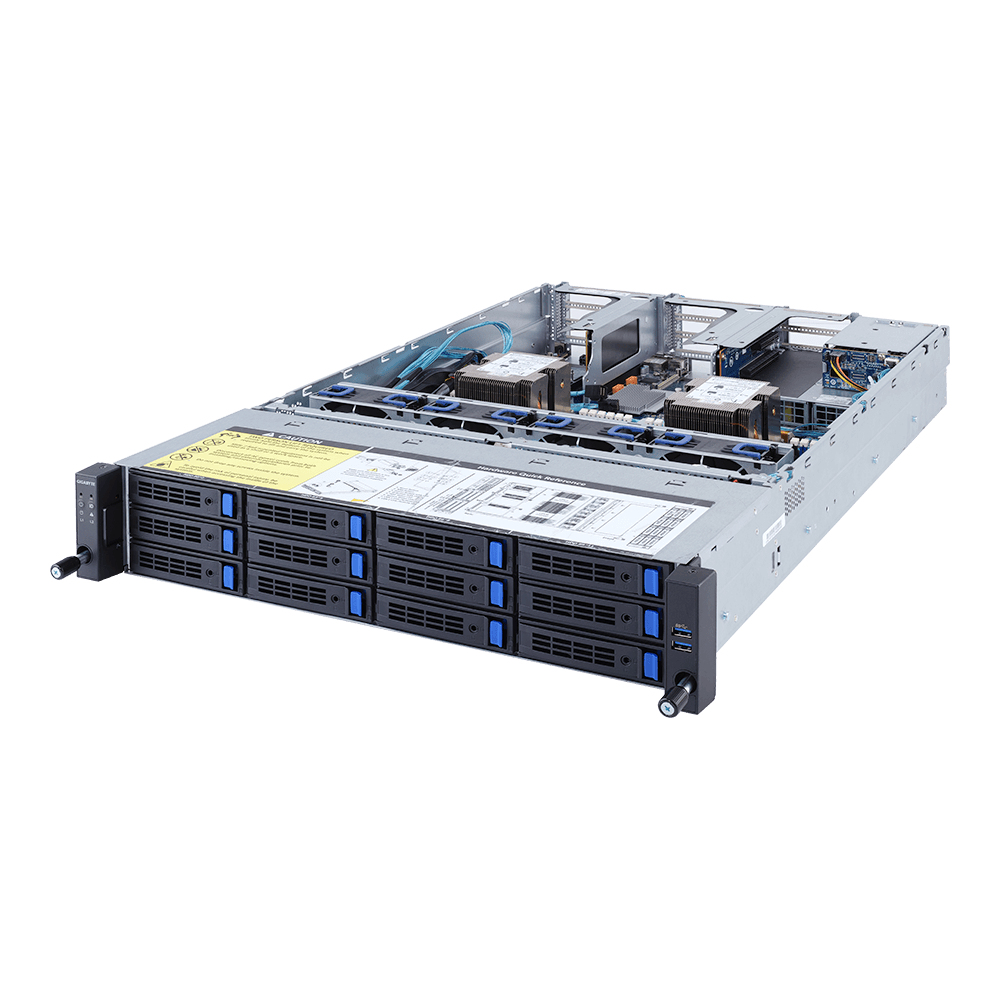

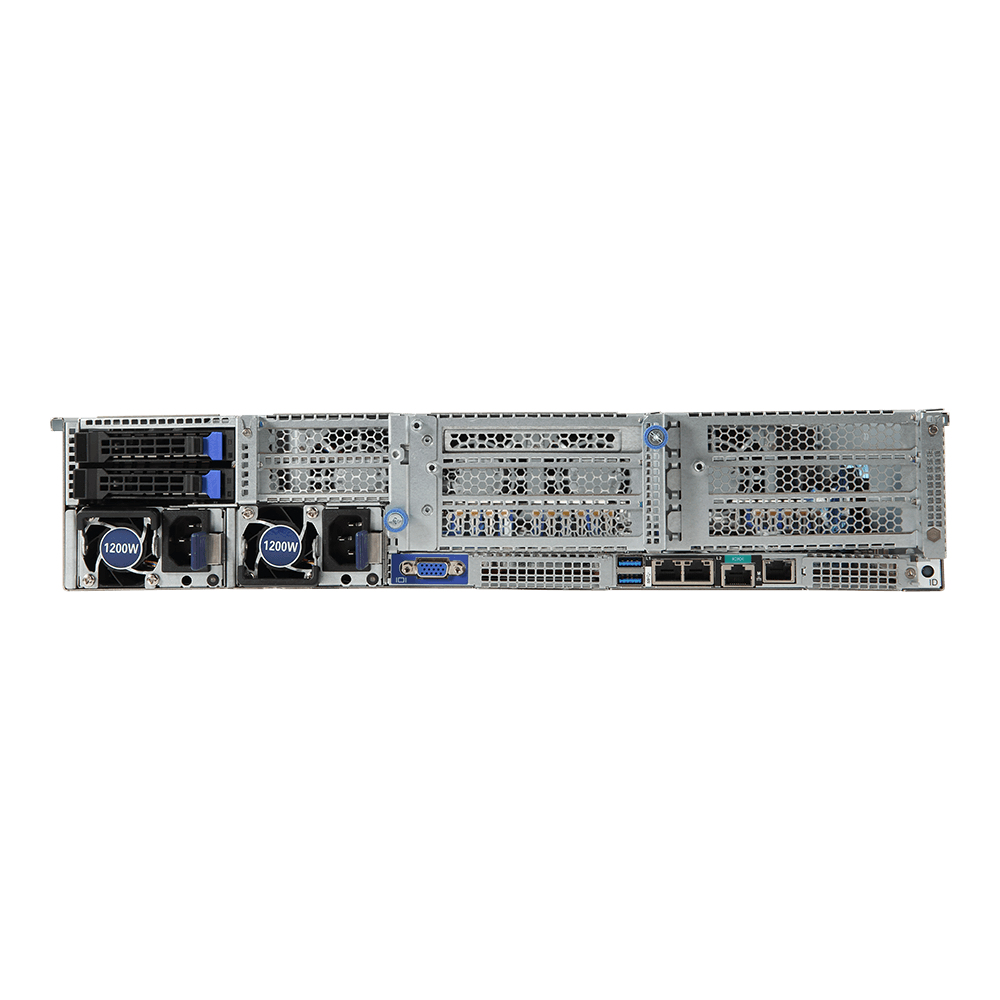

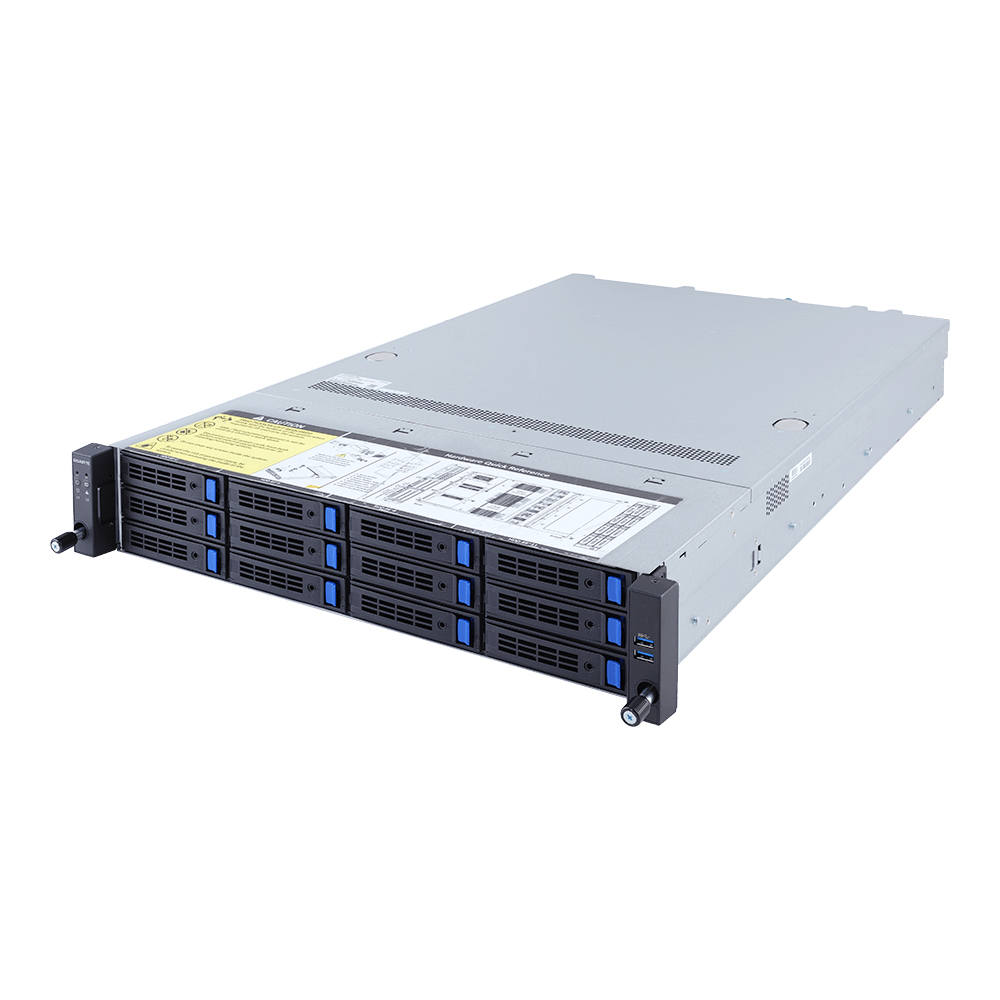

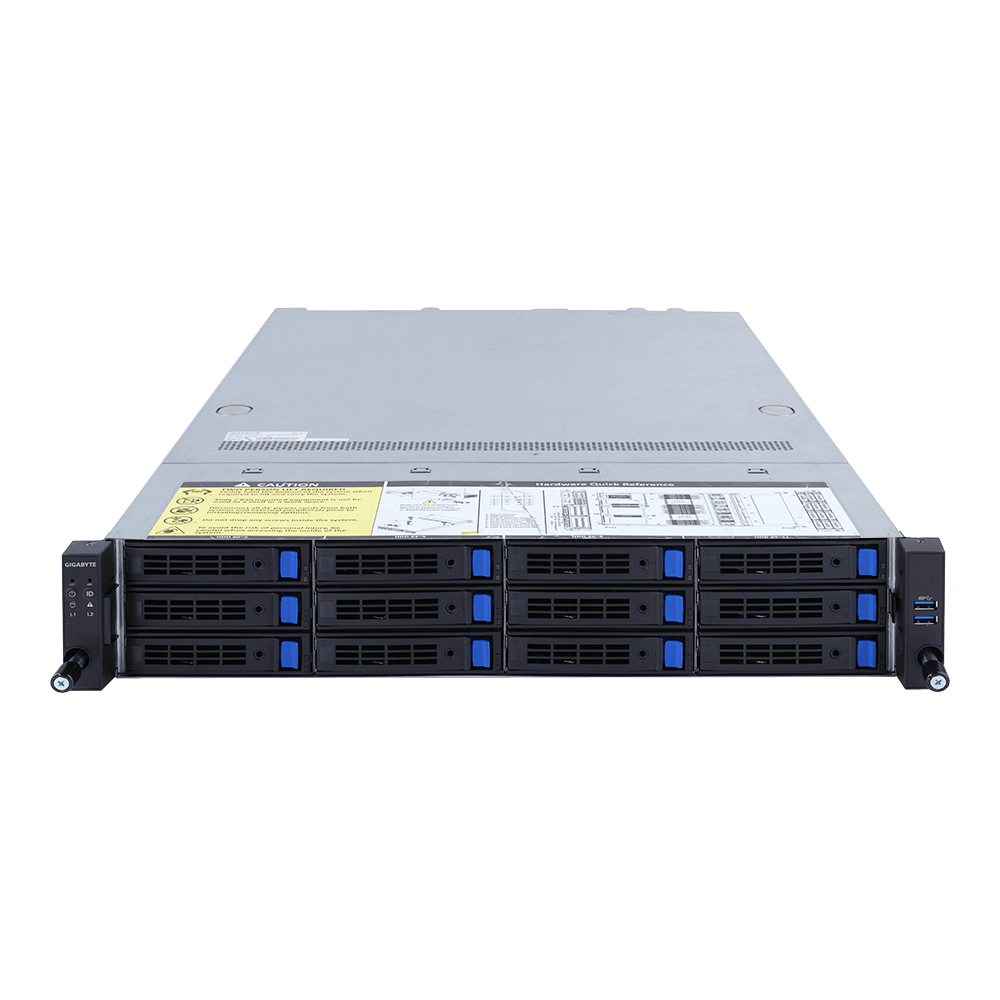

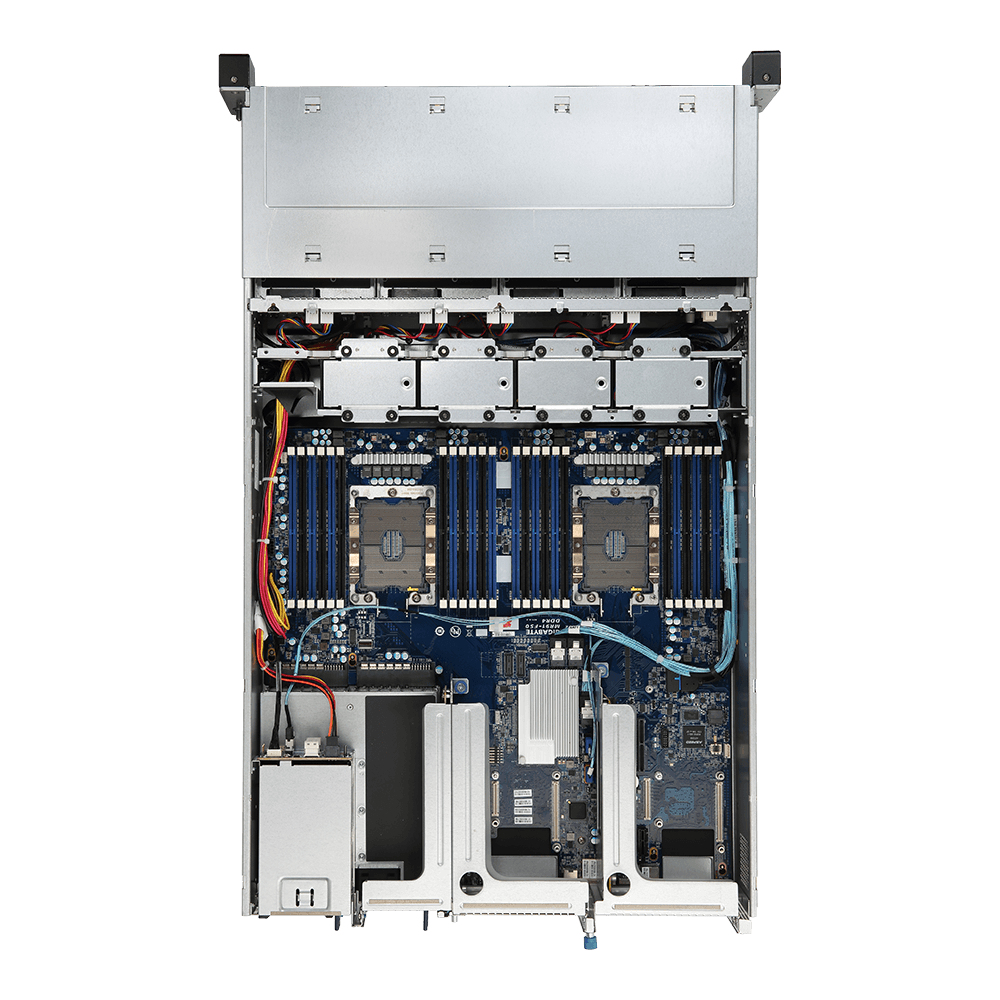

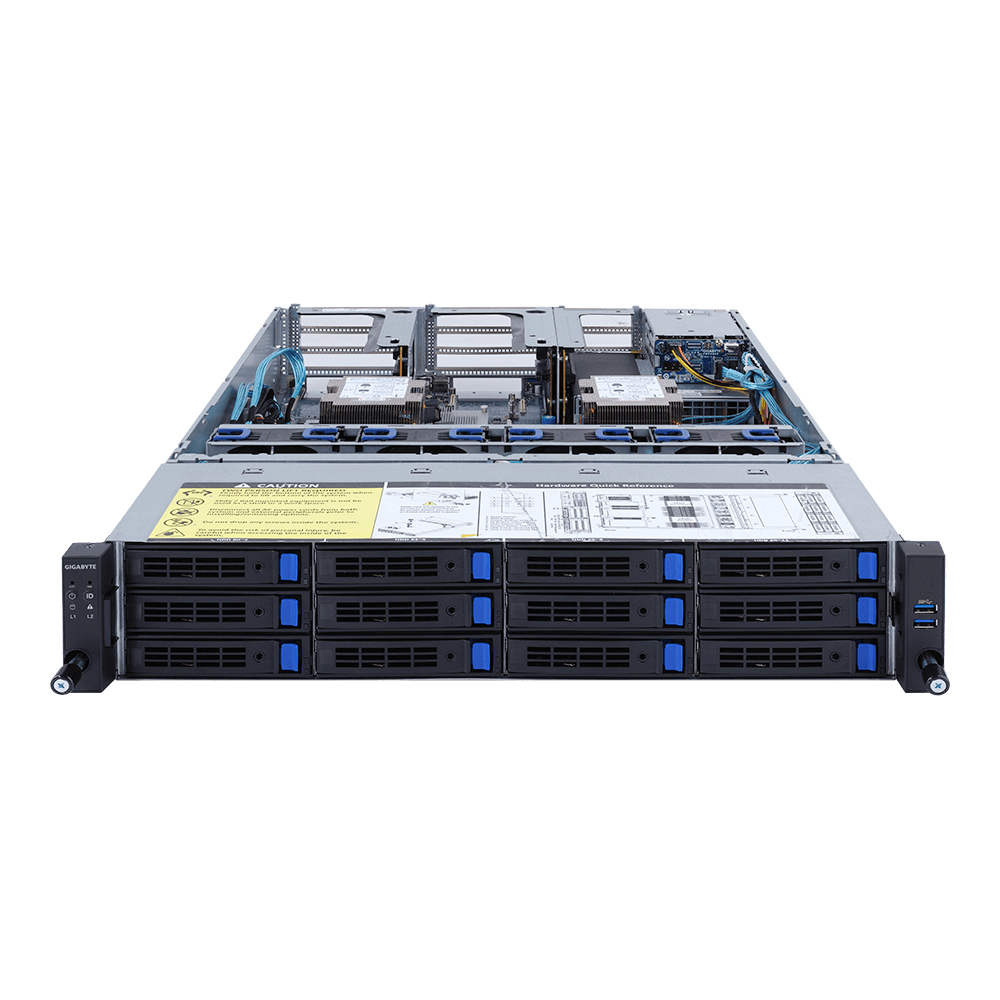

GIGABYTE R281-3C1 Intel® C621 LGA 3647 (Socket P) Rack (2U) Black, Grey
GIGABYTE

R281-3C1 Intel® C621 LGA 3647 (Socket P) Rack (2U) Black, Grey

Model R281-3C1Part no. 6NR2813C1MR-00EAN 4719331281328

53 specifications
  • Weight20 kg
  • ColourBlack, Grey
  • Built-in processorNo
  • Number of DIMM slots24
  • Hot-swap HDD baysYes
  • On-board graphics card modelAspeed AST2500
See all specifications

Overview

Weight
20 kg
Colour
Black, Grey
Built-in processor
No
Number of DIMM slots
24
Hot-swap HDD bays
Yes
On-board graphics card model
Aspeed AST2500
Brand
GIGABYTE
Model
R281-3C1
Part number
6NR2813C1MR-00
EAN / UPC
4719331281328
Also known as
GIGABYTE R281-3C1 Intel® C621 LGA 3647 (Socket P) Rack (2U) Black, Grey

Specifications

53 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetIntel® C621
Processor socketLGA 3647 (Socket P)
Number of processors supported2

Memory

Number of DIMM slots24
Supported memory typesDDR4-SDRAM
Maximum internal memory128 GB
Maximum RDIMM memory64 GB
Supported RDIMM clock speeds2133,2400,2666,2933 MHz
Memory voltage1.2 V
Memory channelsHexa-channel

Storage

Hot-swap HDD baysYes
Number of 3.5" bays12
Storage drive sizes supported2.5,3.5"
Supported storage drive typesHDD & SSD

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1
COM ports quantity1
Number of SATA III connectors2

Features

Trusted Platform Module (TPM)Yes

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (2U)
Product colourBlack, Grey
LED indicatorsYes
On/off switchYes
Reset buttonYes
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply1200 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current12-7 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth730 mm
Height87.5 mm
Weight20 kg
Width438 mm

Packaging data

Package width982 mm
Package depth588 mm
Package height268 mm
