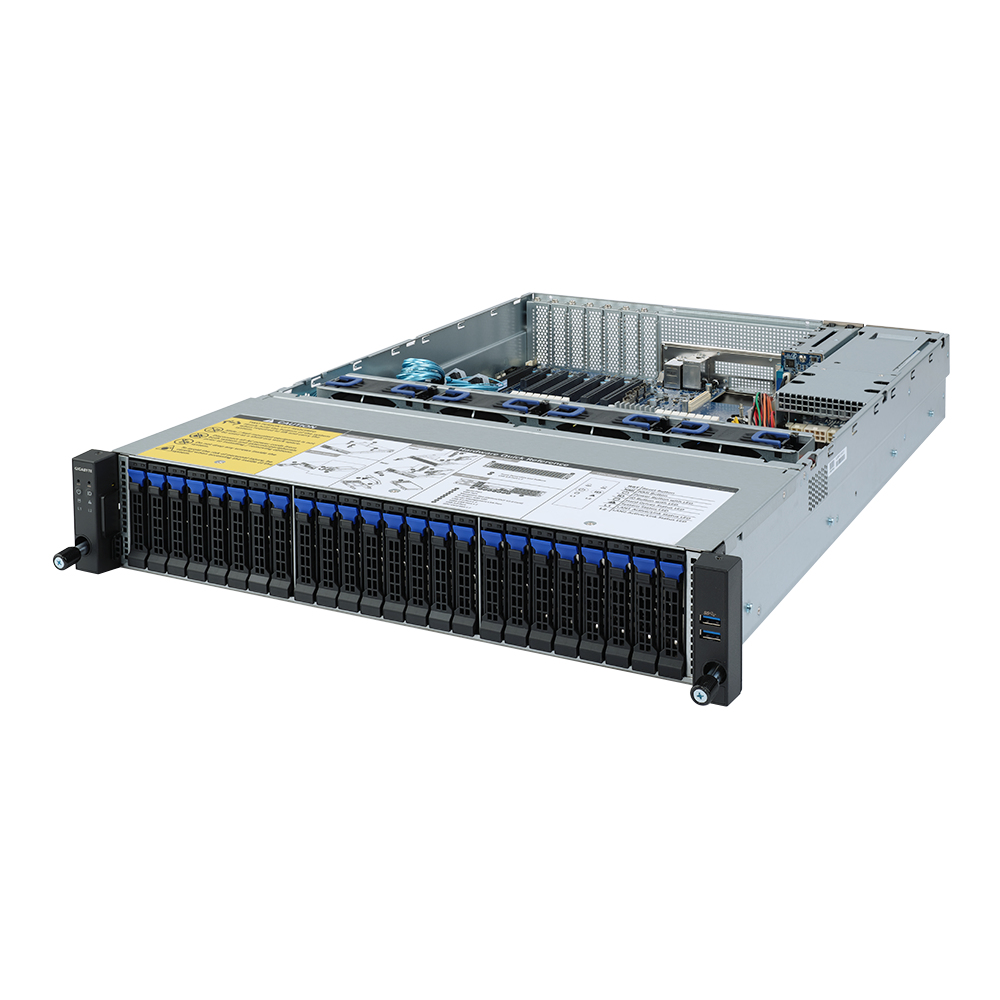

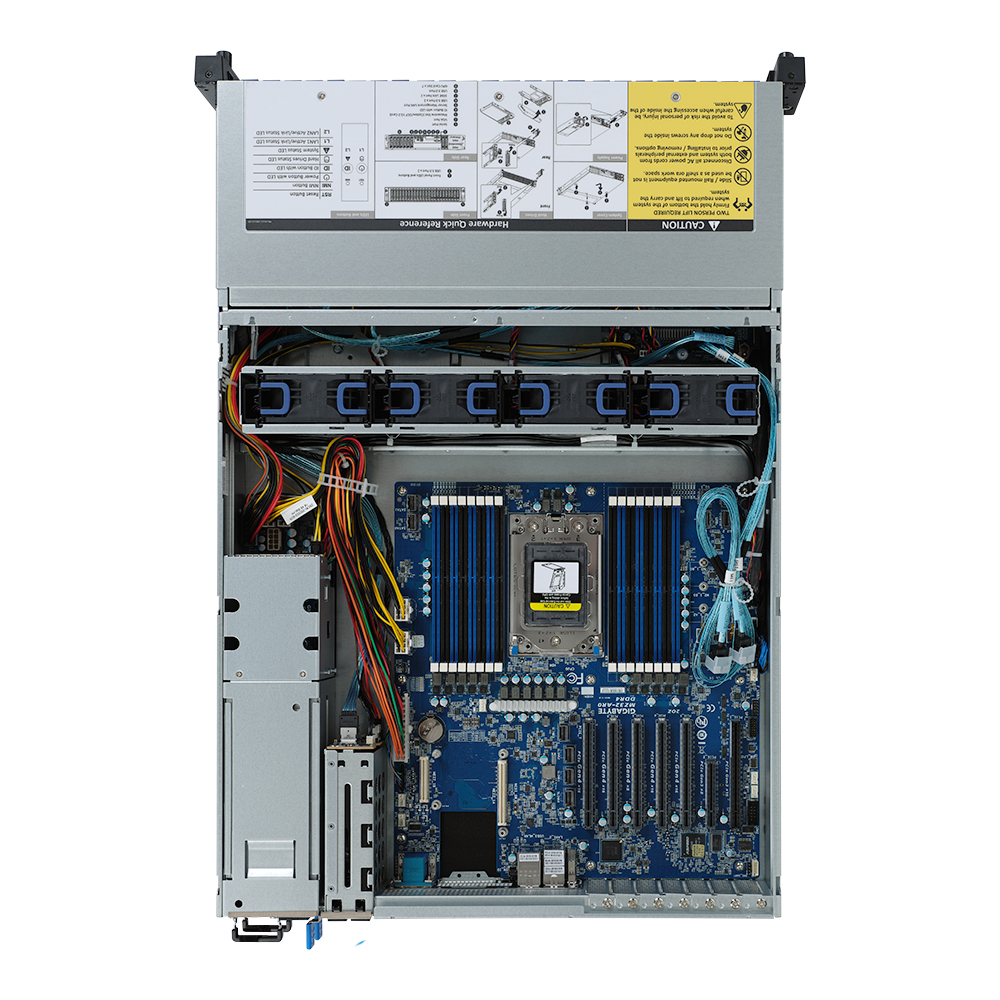

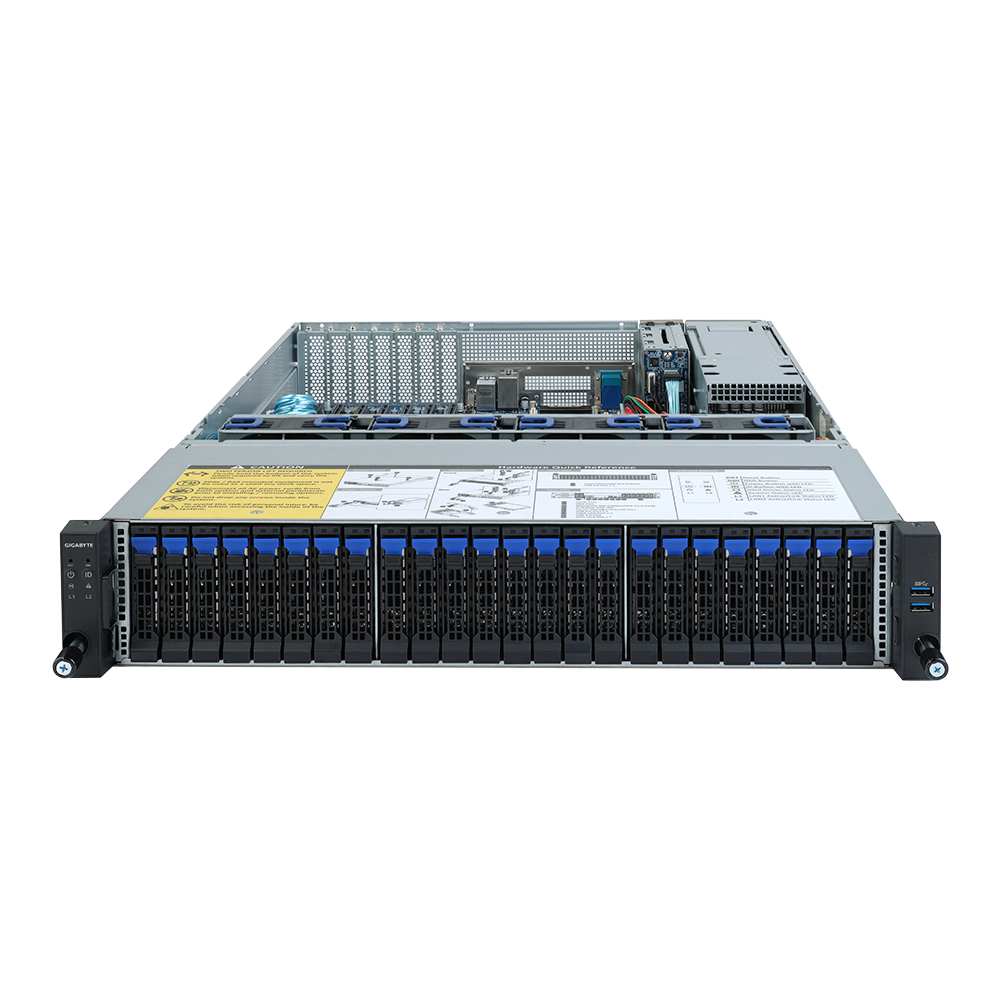

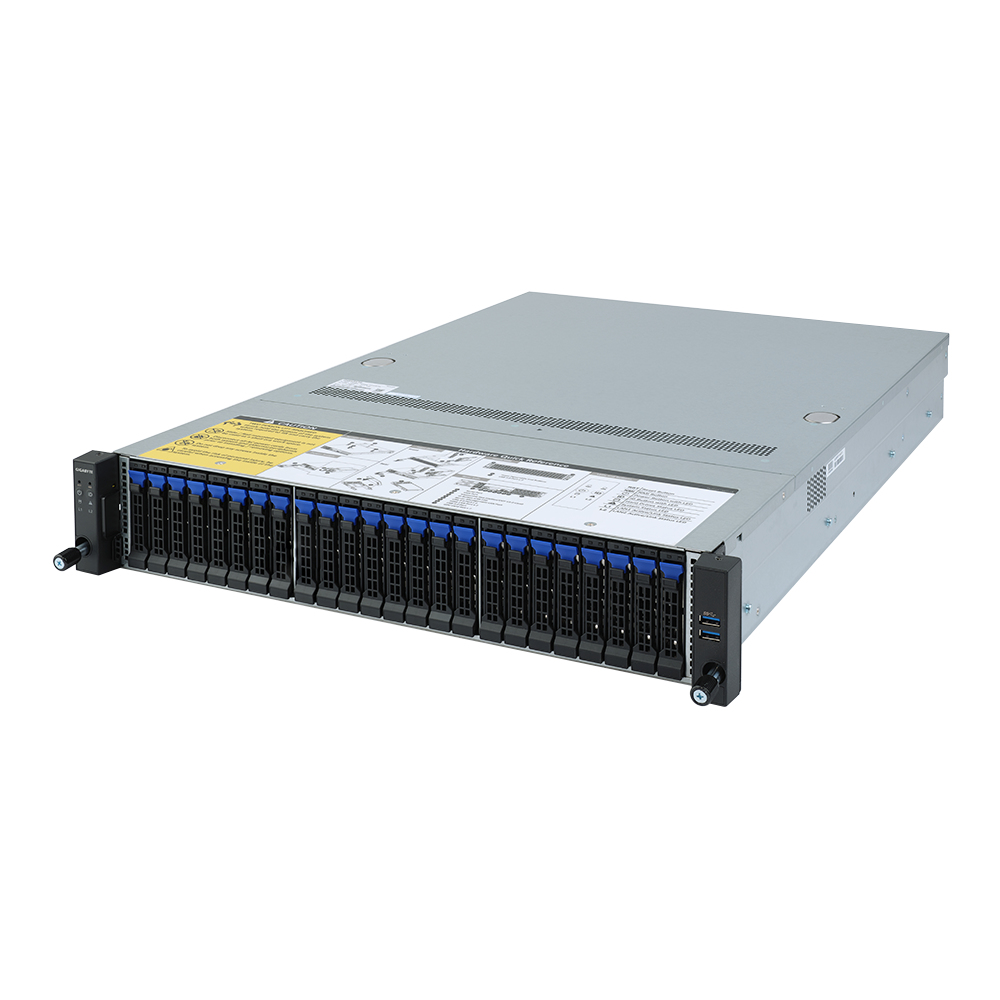

R272-Z31 Socket SP3 Rack (2U) Black
Model R272-Z31Part no. 6NR272Z31MR-00EAN 4719331191061
36 specifications
- ColourBlack
- Built-in processorNo
- Number of DIMM slots16
- Number of storage drives supported26
- On-board graphics card modelAspeed AST2500
- Ethernet LANYes
Overview
- Colour
- Black
- Built-in processor
- No
- Number of DIMM slots
- 16
- Number of storage drives supported
- 26
- On-board graphics card model
- Aspeed AST2500
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- R272-Z31
- Part numbers
- 6NR272Z31MR-00, R272-Z31
- EAN / UPC
- 4719331191061, 8592978249250, 889523019399
- Also known as
- GIGABYTE R272-Z31 Socket SP3 Rack (2U) Black
Specifications
36 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor socket | Socket SP3 |
| Number of processors supported | 1 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 16 |
| Supported memory types | DDR4-SDRAM |
| Supported RDIMM clock speeds | 2933,3200 MHz |
| Memory channels | Octa-channel |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 26 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 26 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2500 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Backplanes support | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| LED indicators | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Fan diameter | 8 cm |
| Number of fans | 4 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 800 W |
| Number of redundant power supplies installed | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 660 mm |
| Height | 87.5 mm |
| Width | 438 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 982 mm |
| Package depth | 588 mm |
| Package height | 268 mm |
