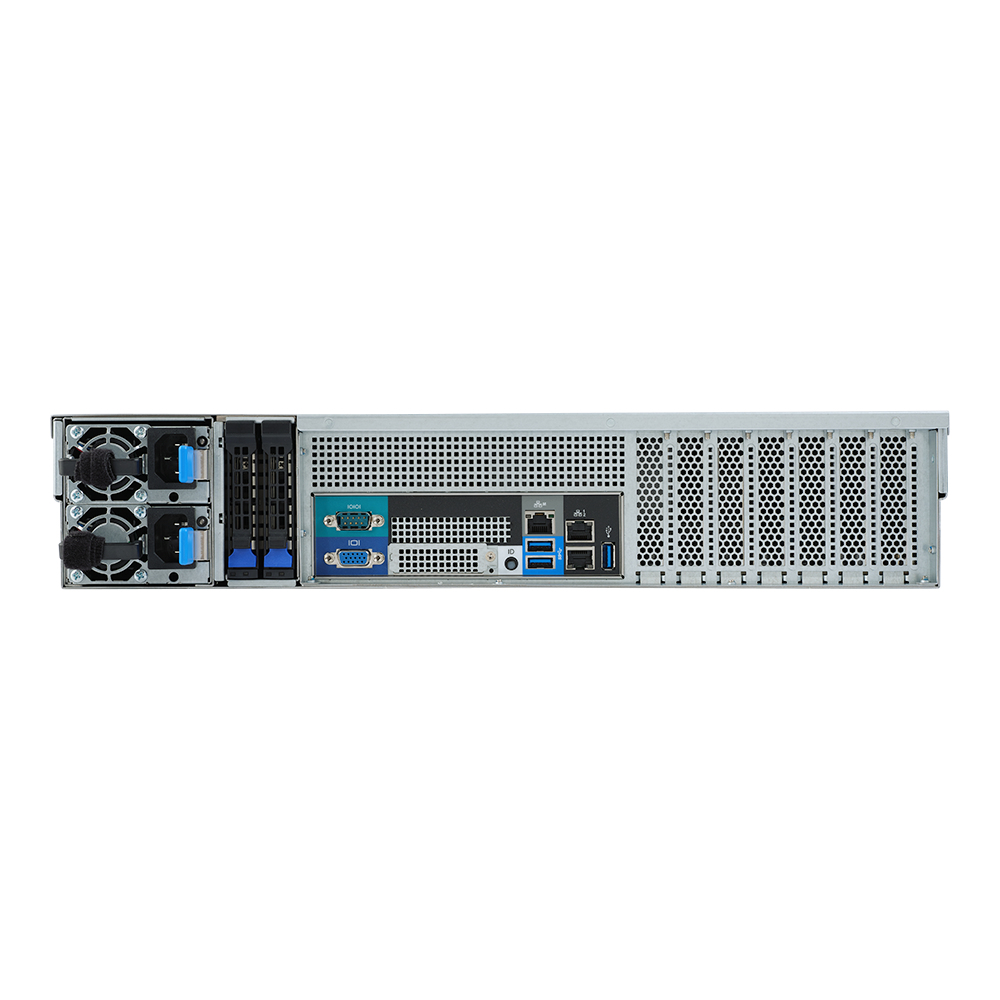

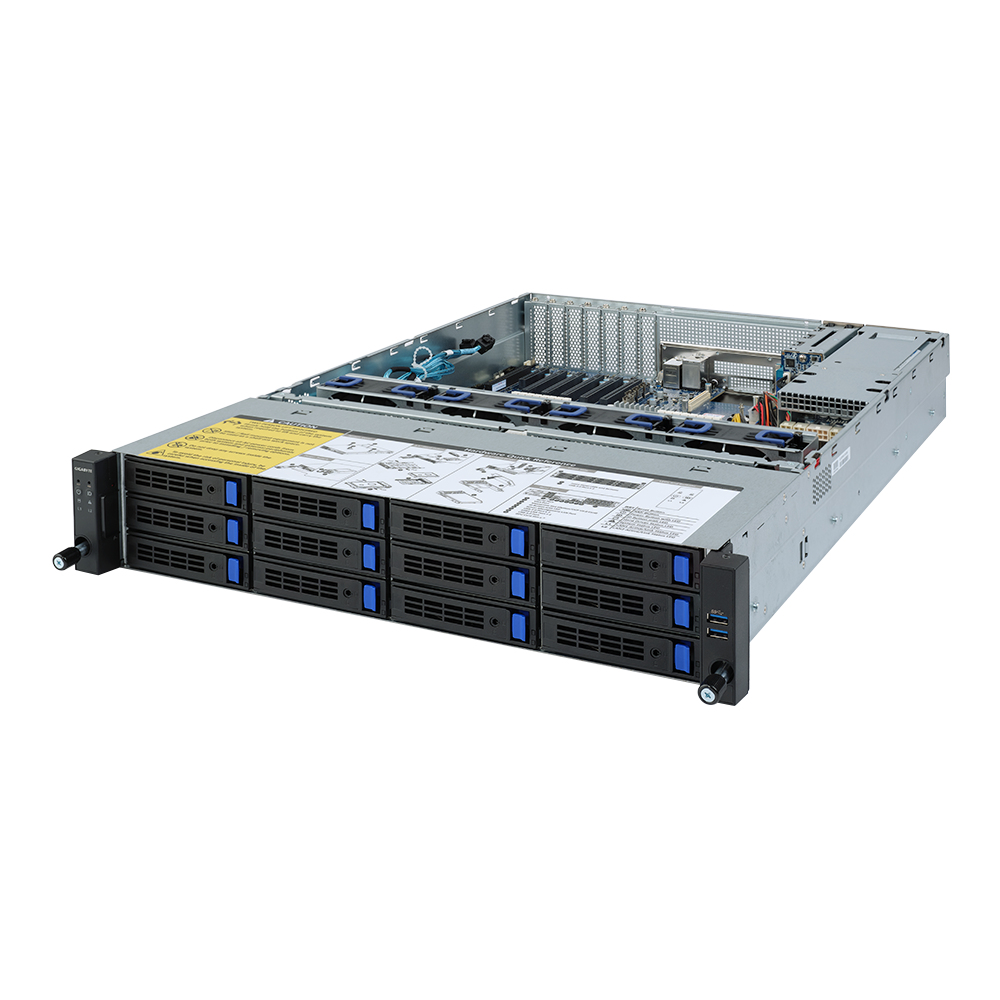

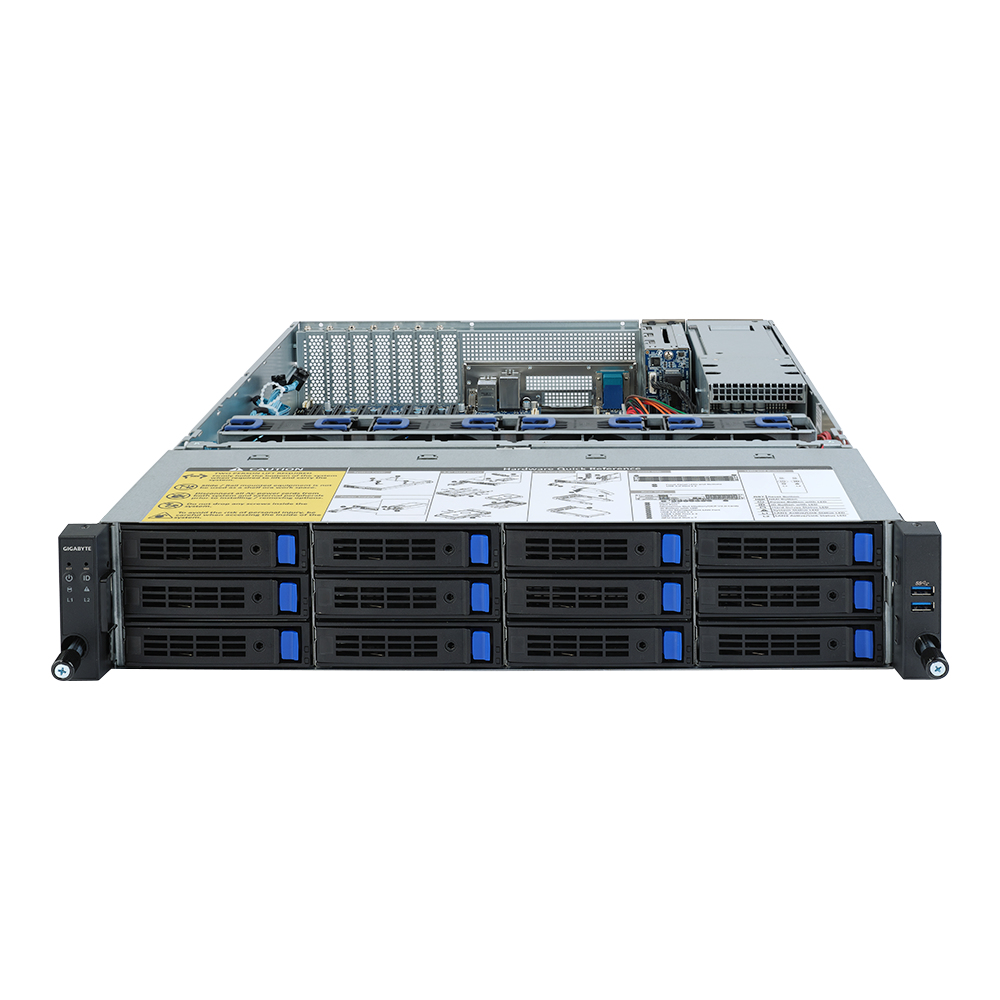

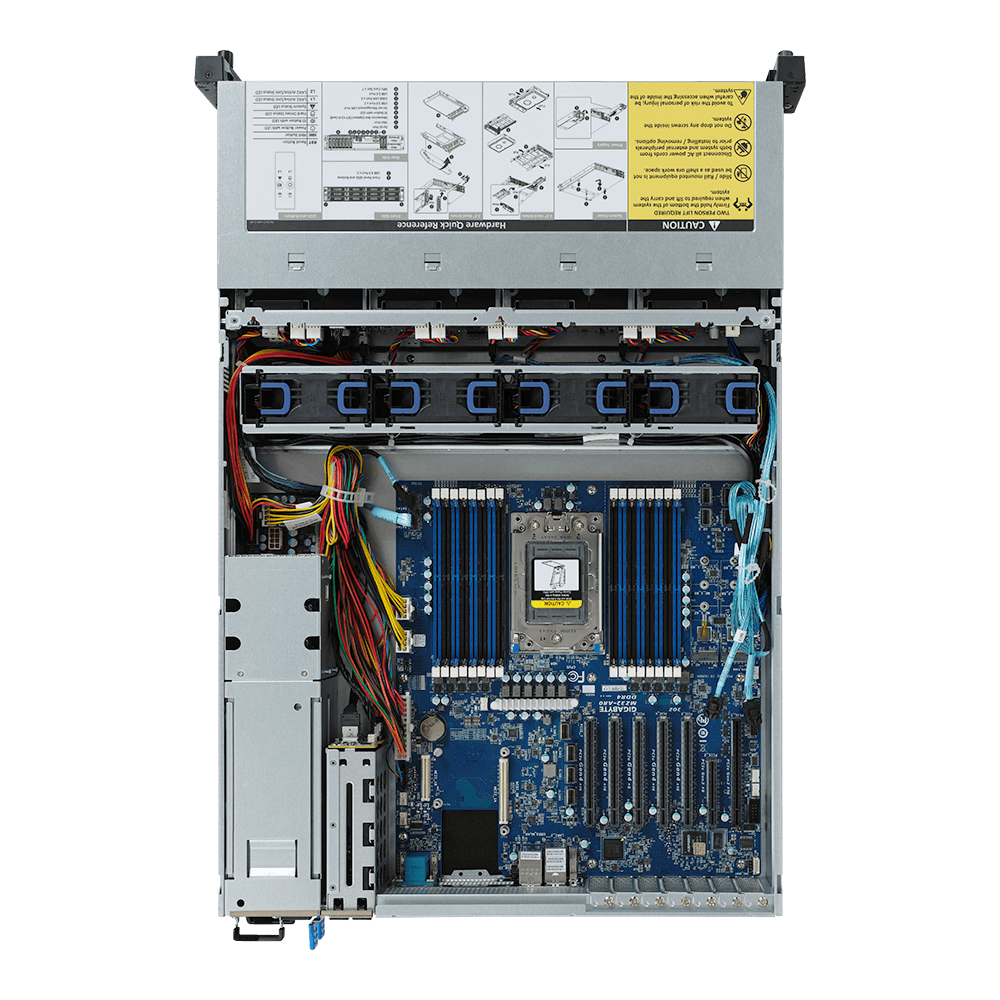

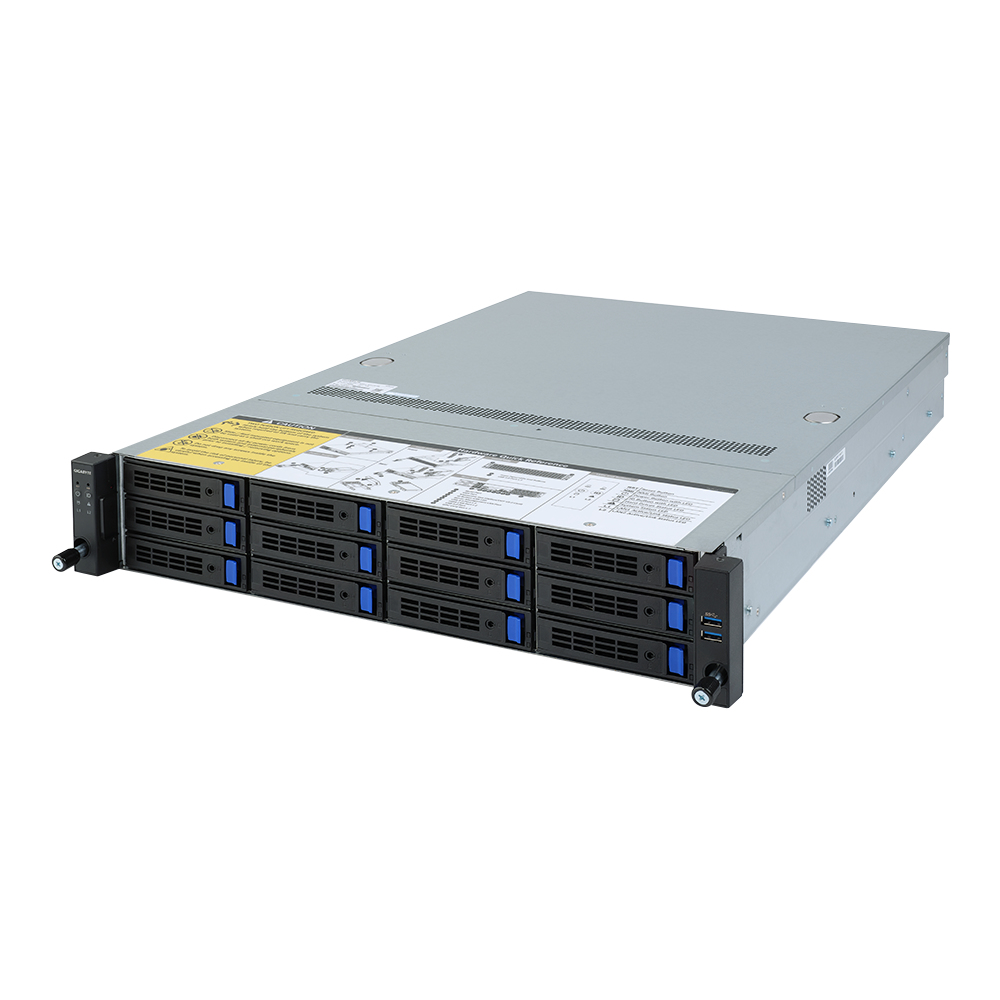

GIGABYTE R272-Z30 Rack (2U) Black
GIGABYTE

R272-Z30 Rack (2U) Black

Model R272-Z30Part no. 6NR272Z30MR-00EAN 4719331191054

42 specifications
  • ColourBlack
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported12
  • On-board graphics card modelAspeed AST2500
  • Ethernet LANYes
See all specifications

Overview

Colour
Black
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
12
On-board graphics card model
Aspeed AST2500
Ethernet LAN
Yes
Brand
GIGABYTE
Model
R272-Z30
Part numbers
6NR272Z30MR-00, R272-Z30
EAN / UPC
4719331191054, 889523019528
Also known as
GIGABYTE R272-Z30 Rack (2U) Black

Specifications

42 specifications in 13 groups

Processor

Built-in processorNo
Number of processors supported1

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Supported RDIMM clock speeds2933,3200 MHz
Memory channelsOcta-channel

Storage

Number of storage drives supported12
Hot-swap HDD baysYes
Number of 3.5" bays12
Storage drive sizes supported3.5"

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1
COM ports quantity1

Features

Backplanes supportYes

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (2U)
Product colourBlack
LED indicatorsYes
On/off switchYes
Reset buttonYes
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply800 W
Number of redundant power supplies installed2
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth660 mm
Height87.5 mm
Width438 mm

Packaging data

Package width982 mm
Package depth588 mm
Package height268 mm
