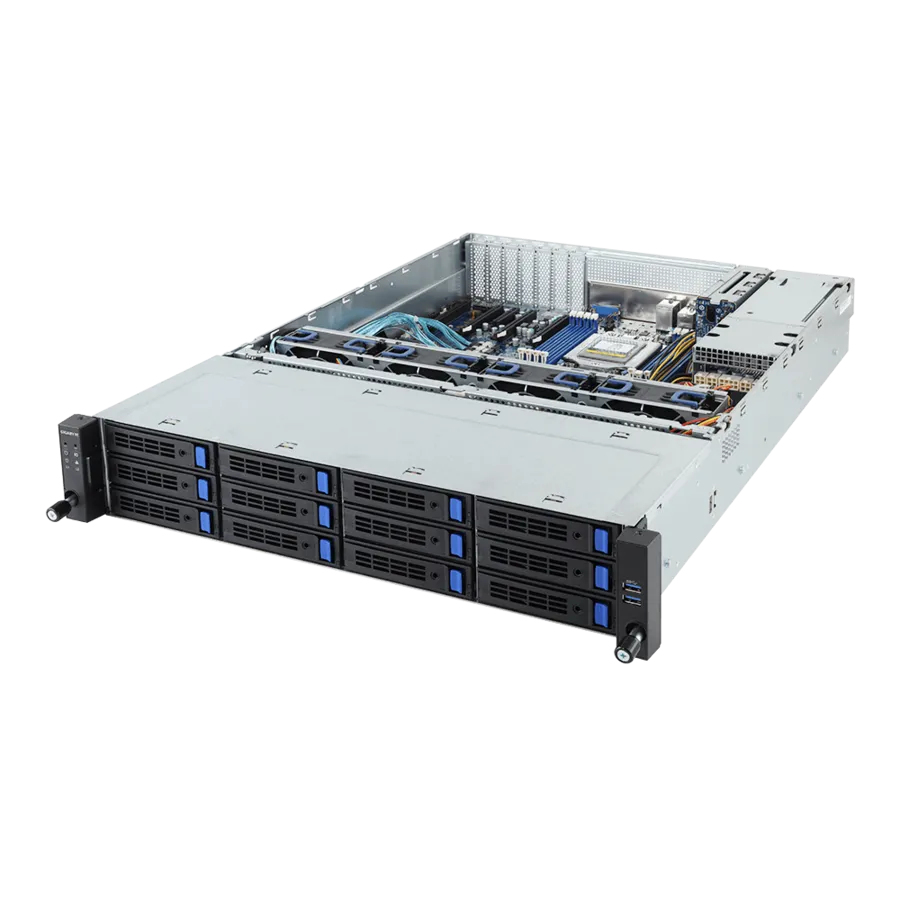

GIGABYTE R271-Z00 Socket SP3 Rack (2U)
GIGABYTE

R271-Z00 Socket SP3 Rack (2U)

Model R271-Z00Part no. 6NR271Z00MR-00EAN 4719331281540

53 specifications
  • Weight21 kg
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported12
  • On-board graphics card modelAspeed AST2500
  • Ethernet LANYes
See all specifications

Overview

Weight
21 kg
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
12
On-board graphics card model
Aspeed AST2500
Ethernet LAN
Yes
Brand
GIGABYTE
Model
R271-Z00
Part number
6NR271Z00MR-00
EAN / UPC
4719331281540
Also known as
GIGABYTE R271-Z00 Socket SP3 Rack (2U)

Specifications

53 specifications in 14 groups

Processor

Built-in processorNo
Processor socketSocket SP3

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities8GB, 16GB, 32GB, 64GB, 128GB
Maximum RDIMM memory64 GB
Supported RDIMM clock speeds2133 MHz

Storage

Number of storage drives supported12
Hot-swap HDD baysYes
Number of 3.5" bays12
Storage drive sizes supported3.5"
Supported storage drive typesHDD & SSD

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s

Ports & interfaces

USB 2.0 ports quantity1
VGA (D-Sub) ports quantity1
Serial ports quantity1

Expansion slots

PCI Express slots version3.0
PCI Express x8 slots2
PCI Express x16 slots5
Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Backplanes supportYes
Compatible operating systemsWindows Server 2012 R2 with Update Windows Server 2016 Red Hat Enterprise Linux 7.4 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (2U)
LED indicatorsHDD, LAN, Power, System
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply800 W
Number of main power supplies2
AC input voltage100 - 240 V
Input current10.4 A
Thermal Design Power (TDP)800 W
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth710 mm
Height87 mm
Weight21 kg
Width430 mm

Packaging data

Packaging content1 x R271-Z31 system 1 x CPU heatsink 1 x Quick Installation Guide 1 x Rail kit
Package width982 mm
Package depth588 mm
Package height268 mm
