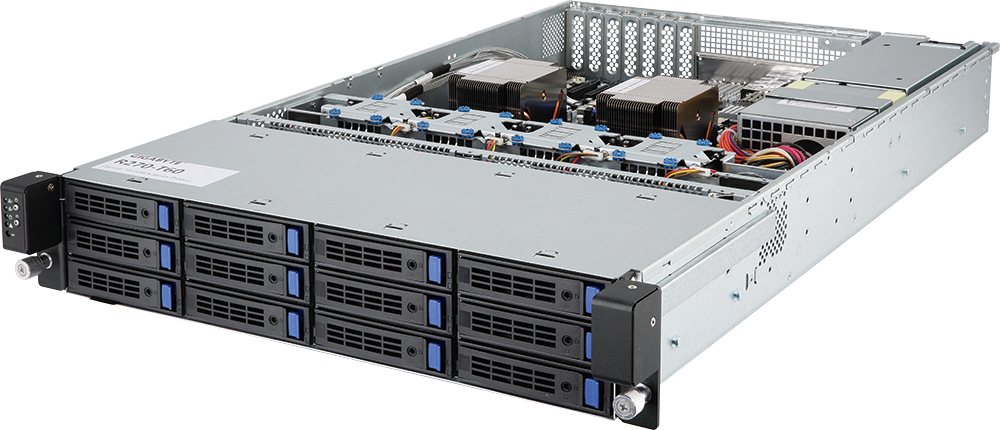

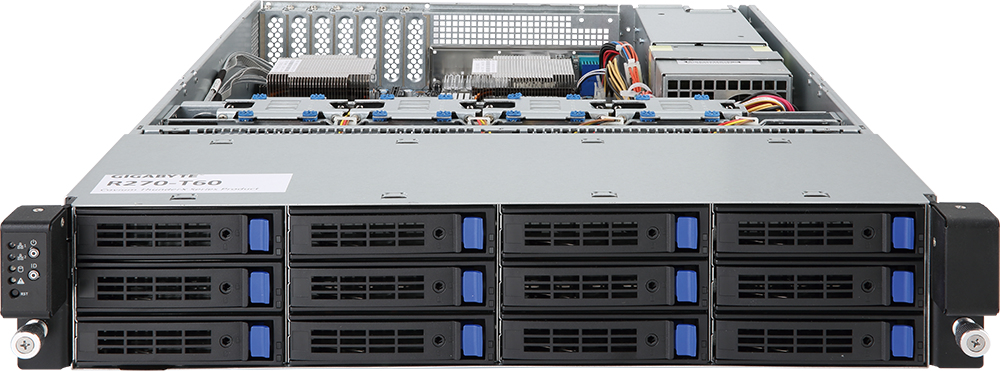

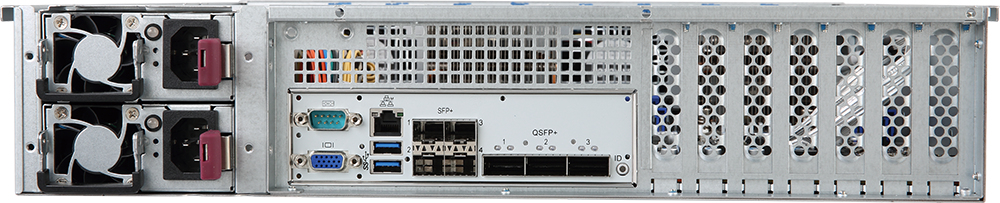

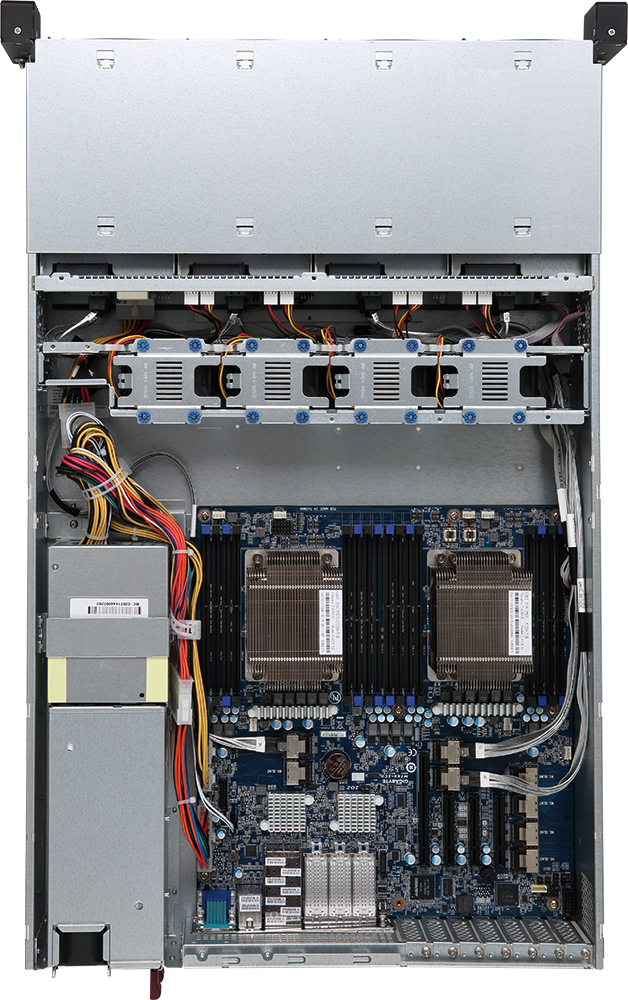

GIGABYTE R270-T68 BGA 2601 Rack (2U) Black
GIGABYTE

R270-T68 BGA 2601 Rack (2U) Black

Model R270-T68Part no. 6NR270T68MR-00

51 specifications
  • Weight21 kg
  • ColourBlack
  • Built-in processorYes
  • Number of DIMM slots16
  • Number of storage drives supported12
  • On-board graphics card modelAspeed AST2400
See all specifications

Overview

Weight
21 kg
Colour
Black
Built-in processor
Yes
Number of DIMM slots
16
Number of storage drives supported
12
On-board graphics card model
Aspeed AST2400
Brand
GIGABYTE
Model
R270-T68
Part number
6NR270T68MR-00
Also known as
GIGABYTE R270-T68 BGA 2601 Rack (2U) Black

Specifications

51 specifications in 13 groups

Processor

Built-in processorYes
Processor socketBGA 2601
Processor frequency2 GHz
Number of processors supported2

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Maximum RDIMM memory512 GB
Supported RDIMM clock speeds1866,2133 MHz
Memory channelsQuad-channel

Storage

Number of storage drives supported12
Hot-swap HDD baysYes
Storage drive sizes supported2.5,3.5"
Supported storage drive typesHDD

Graphics

On-board graphics card modelAspeed AST2400

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity1
COM ports quantity1
SFP+ module slots quantity4

Expansion slots

PCI Express x8 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots1

Features

Backplanes supportYes
Compatible operating systemsUbuntu 16.04.1 x64 SLES12 SP2 openSUSE Tumbleweed openSUSE Leap 42.1+ RHEL 7.3 x64 CentOS 7.3 x64

Design

Chassis typeRack (2U)
Product colourBlack
LED indicatorsYes
On/off switchYes
Reset buttonYes
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply750 W
Redundant power supply (RPS) supportYes
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current9.5/5 A
80 PLUS certification80 PLUS Gold

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth710 mm
Height87 mm
Weight21 kg
Width430 mm

Packaging data

Package width982 mm
Package depth268 mm
Package height588 mm
