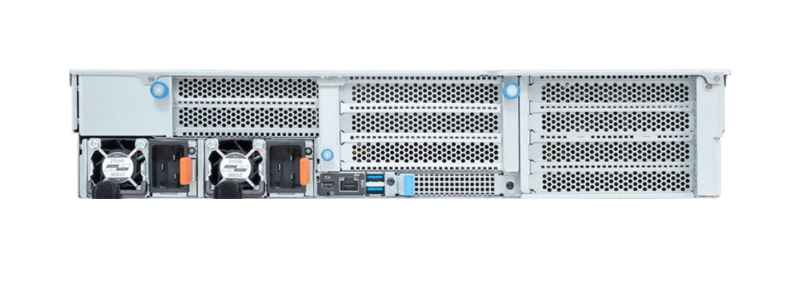

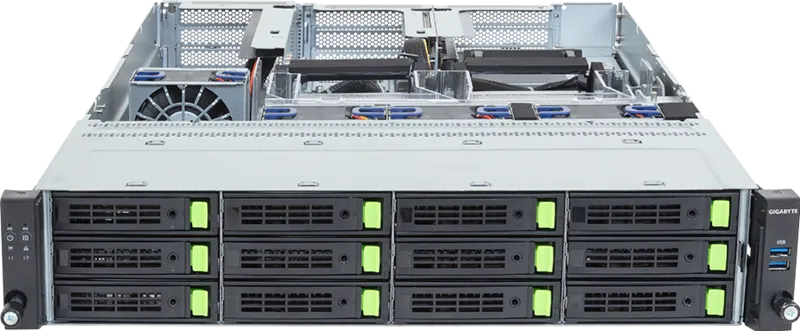

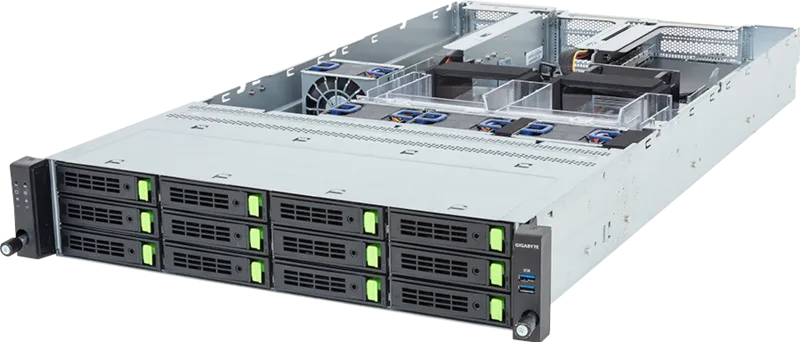

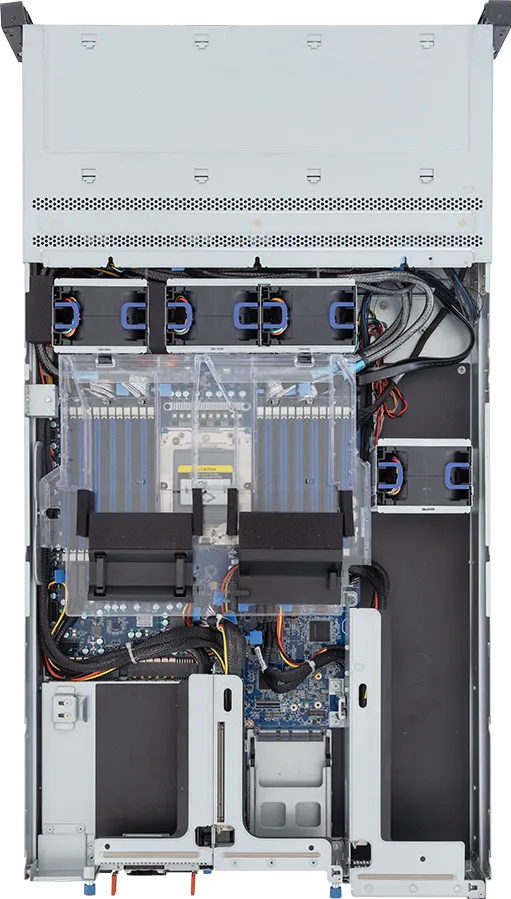

GIGABYTE R263-ZG0-AAL2 LGA 6096 Rack (2U) Black, Steel
GIGABYTE

R263-ZG0-AAL2 LGA 6096 Rack (2U) Black, Steel

Model R263-ZG0-AAL2Part no. 6NR263ZG0DR000ACL2EAN 4719331865092

47 specifications
  • Weight29.4 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots24
  • Number of storage drives supported14
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
29.4 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
24
Number of storage drives supported
14
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
R263-ZG0-AAL2
Part number
6NR263ZG0DR000ACL2
EAN / UPC
4719331865092
Also known as
GIGABYTE R263-ZG0-AAL2 LGA 6096 Rack (2U) Black, Steel

Specifications

47 specifications in 12 groups

Processor

Built-in processorNo
Processor socketLGA 6096
Number of processors supported1
Compatible processor seriesAMD EPYC 9005, AMD EPYC 9004

Memory

Number of DIMM slots24
Supported memory typesGDDR5
Memory channelsDodeca-channel

Storage

Number of storage drives supported14
Hot-swap HDD baysYes
Number of 2.5" bays12
Number of 3.5" bays12
Storage drive sizes supported2.5,3.5,M.2
RAID levels0, 1, 5, 10

Graphics

On-board graphics card modelAspeed AST2600

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1

Expansion slots

Number of M.2 (M) slots2

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsHDD, LAN, Power, System
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply2700 W
Number of main power supplies2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current12 - 16 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth815 mm
Height87.5 mm
Weight29.4 kg
Width438 mm

Packaging data

Packaging content1 x R263-ZG0-AAL2 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x GPU power cable (16-pin, 250mm) 2 x GPU power cables (16-pin, 450mm) 1 x GPU power cable (16-pin, 550mm) 1 x 2-Section Rail kit
Package width1082 mm
Package depth685 mm
Package height314 mm
Package weight31.4 kg
