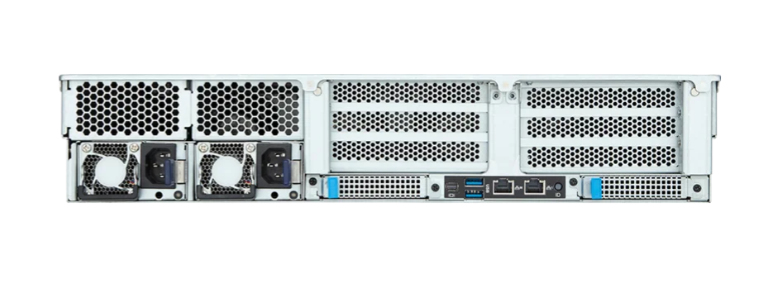

GIGABYTE R263-Z36-AAJ1 LGA 6096 Rack (2U) Black, Steel
GIGABYTE

R263-Z36-AAJ1 LGA 6096 Rack (2U) Black, Steel

Model R263-Z36-AAJ1Part no. 6NR263Z36DR000ADJ1

49 specifications
  • Weight16.4 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots12
  • Number of storage drives supported25
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
16.4 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
12
Number of storage drives supported
25
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
R263-Z36-AAJ1
Part number
6NR263Z36DR000ADJ1
Also known as
GIGABYTE R263-Z36-AAJ1 LGA 6096 Rack (2U) Black, Steel

Specifications

49 specifications in 13 groups

Processor

Built-in processorNo
Processor socketLGA 6096
Number of processors supported1
Compatible processor seriesAMD EPYC 9004, AMD EPYC 9005

Memory

Number of DIMM slots12
Supported memory typesGDDR5
Memory channelsDodeca-channel

Storage

Number of storage drives supported25
Hot-swap HDD baysYes
Number of 2.5" bays24
Storage drive sizes supported2.5,M.2

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I210-AT

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1

Expansion slots

Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsHDD, LAN, Power, System
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply2000 W
Number of main power supplies2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current13 - 10 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth710 mm
Height87.5 mm
Weight16.4 kg
Width438 mm

Packaging data

Packaging content1 x R263-Z36-AAJ1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x 2-Section Rail kit
Package width989 mm
Package depth594 mm
Package height279 mm
Package weight18.2 kg
