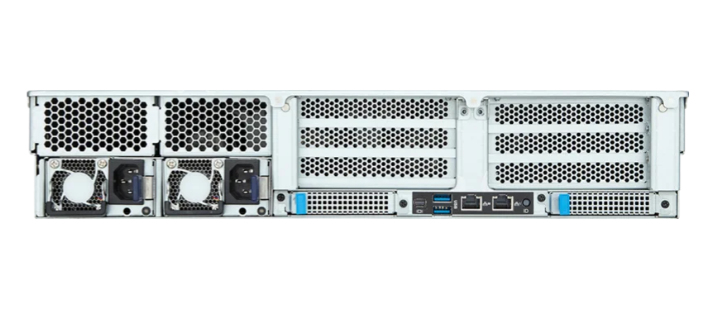

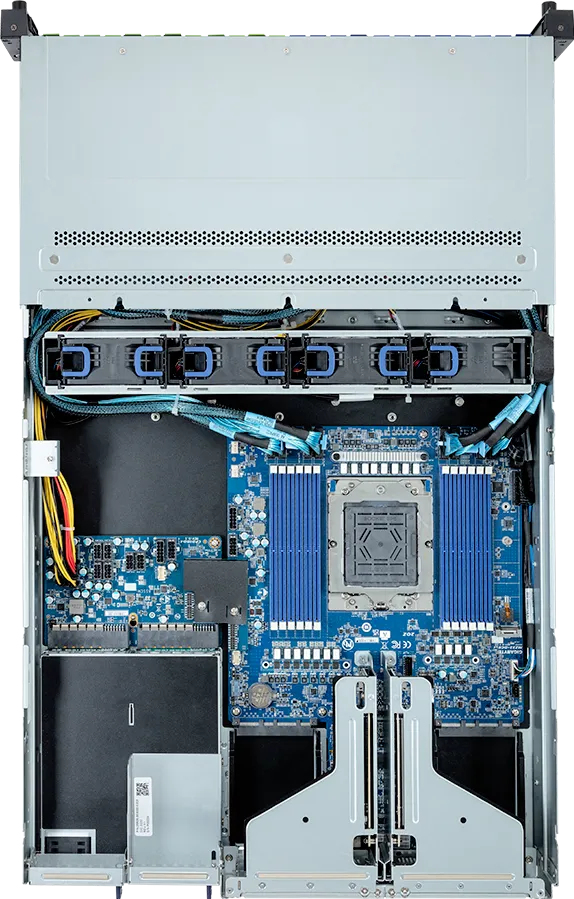

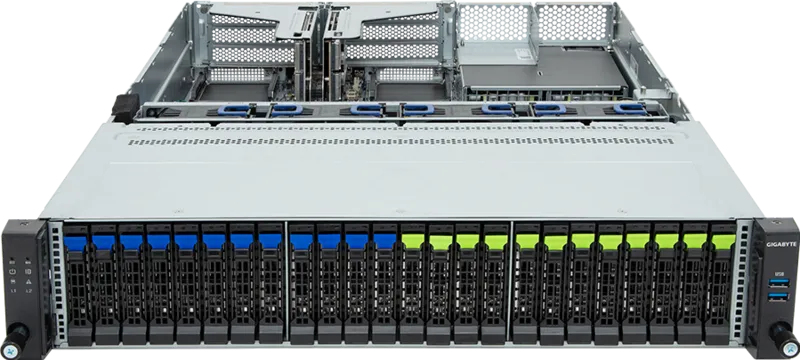

GIGABYTE R263-Z32-AAV1 LGA 6096 Rack (2U) Black, Steel
GIGABYTE

R263-Z32-AAV1 LGA 6096 Rack (2U) Black, Steel

Model R263-Z32-AAV1Part no. 6NR263Z32DR000AAV1EAN 4719331854560

54 specifications
  • Weight25.7 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots32
  • Number of storage drives supported25
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
25.7 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
32
Number of storage drives supported
25
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
R263-Z32-AAV1
Part number
6NR263Z32DR000AAV1
EAN / UPC
4719331854560
Also known as
GIGABYTE R263-Z32-AAV1 LGA 6096 Rack (2U) Black, Steel

Specifications

54 specifications in 13 groups

Processor

Built-in processorNo
Processor socketLGA 6096
Number of processors supported1
Compatible processor seriesAMD EPYC 9004

Memory

Number of DIMM slots32
Supported memory typesDDR5-SDRAM
Memory channelsDodeca-channel

Storage

Number of storage drives supported25
Hot-swap HDD baysYes
Number of 2.5" bays24
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, Serial Attached SCSI (SAS)

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I210-AT

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
Mini DisplayPorts quantity1

Expansion slots

PCI Express slots version4.0
Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsHDD, LAN, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply1600 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
AC input voltage110 - 240 V
AC input frequency50/60 Hz
Input current12 - 9.5 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth710 mm
Height87.5 mm
Weight25.7 kg
Width438 mm

Packaging data

Packaging content1 x R263-Z32-AAV1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x 2-Section Rail kit
Package width989 mm
Package depth594 mm
Package height279 mm
Package weight28.2 kg
