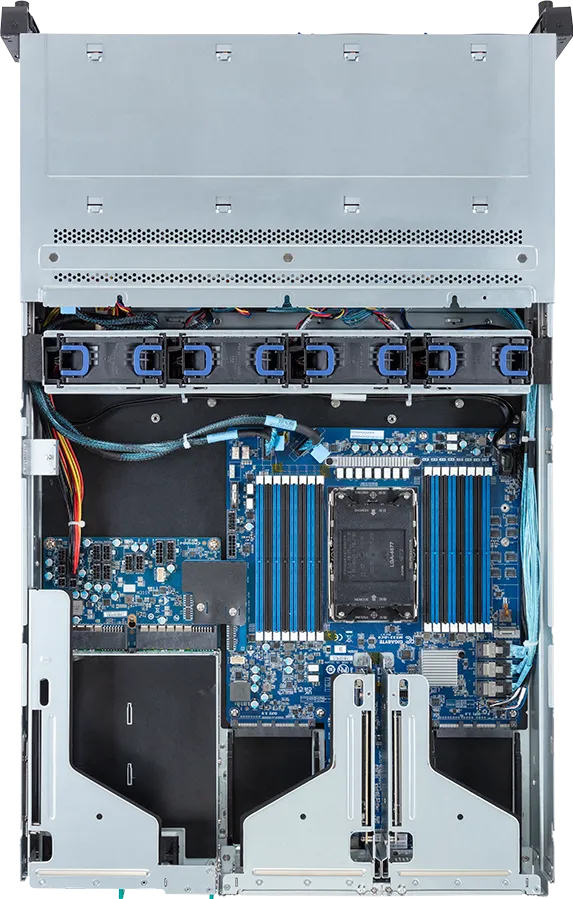

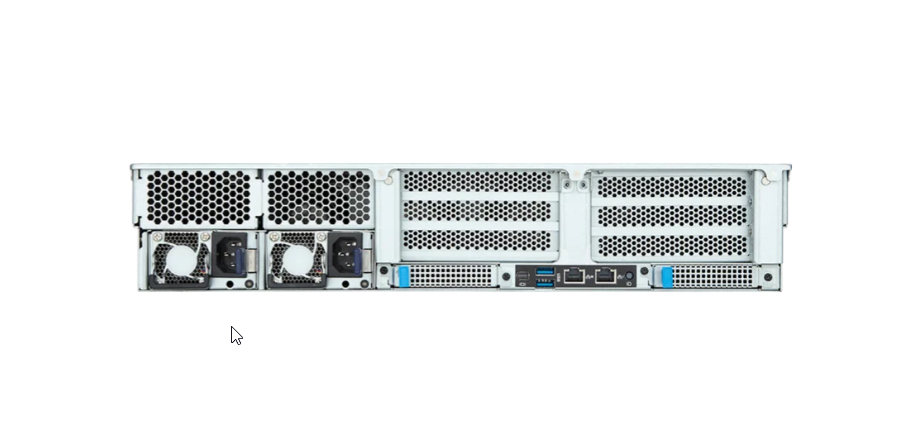

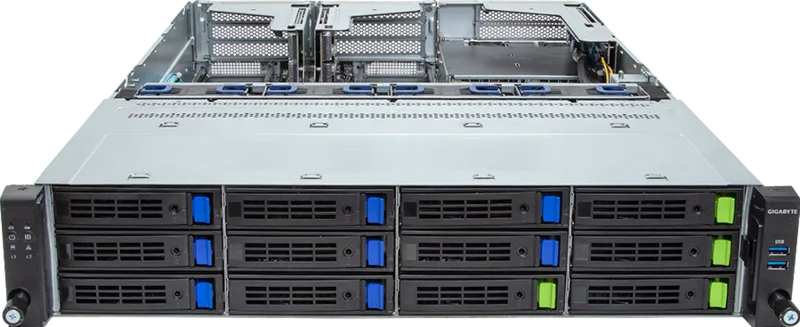

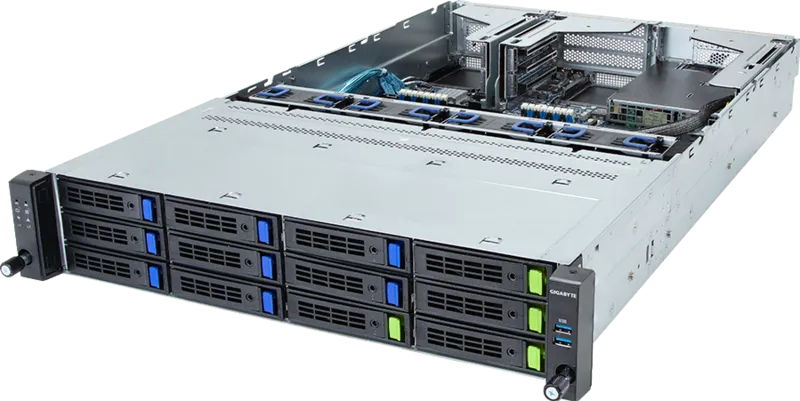

GIGABYTE R263-S34-AAC1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Grey
GIGABYTE

R263-S34-AAC1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Grey

Model R263-S34-AAC1Part no. 6NR263S34DR000ABC1

56 specifications
  • ProcessorIntel® Xeon®
  • Weight21.7 kg
  • ColourBlack, Grey
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported13
See all specifications

Overview

Processor
Intel® Xeon®
Weight
21.7 kg
Colour
Black, Grey
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
13
Brand
GIGABYTE
Model
R263-S34-AAC1
Part number
6NR263S34DR000ABC1
Also known as
GIGABYTE R263-S34-AAC1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Grey

Specifications

56 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C741
Processor socketLGA 4677 (Socket E)
Processor manufacturerIntel
Processor familyIntel® Xeon®
Number of processors supported2
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots16
Supported memory typesGDDR5
Supported RDIMM clock speeds5600,4400 MHz
Memory channelsOcta-channel

Storage

Number of storage drives supported13
Hot-swap HDD baysYes
Number of 2.5" bays12
Number of 3.5" bays12
Storage drive sizes supported2.5,3.5"
RAID levels0, 1, 5, 10

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I210-AT

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
Mini DisplayPorts quantity1

Expansion slots

Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Grey
LED indicatorsHDD, LAN, Power, System
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply1300 W
Number of main power supplies2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current12 - 7 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth710 mm
Height87.5 mm
Weight21.7 kg
Width438 mm

Packaging data

Packaging content1 x R263-S34-AAC1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 3 x Carriers 1 x 2-Section Rail kit
Package width989 mm
Package depth594 mm
Package height279 mm
Package weight26.7 kg
