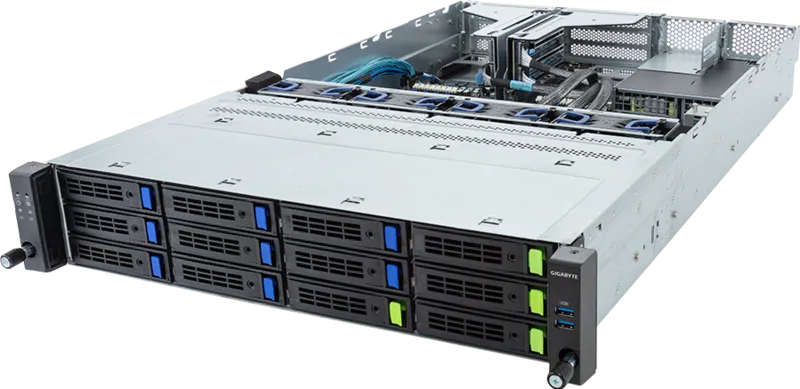

GIGABYTE R263-P30-AAH1 LGA 5964 Rack (2U) Black, Grey
GIGABYTE

R263-P30-AAH1 LGA 5964 Rack (2U) Black, Grey

Model R263-P30-AAH1Part no. 6NR263P30DR000ABH1

51 specifications
  • Weight16.4 kg
  • ColourBlack, Grey
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported12
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
16.4 kg
Colour
Black, Grey
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
12
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
R263-P30-AAH1
Part number
6NR263P30DR000ABH1
Also known as
GIGABYTE R263-P30-AAH1 LGA 5964 Rack (2U) Black, Grey

Specifications

51 specifications in 13 groups

Processor

Built-in processorNo
Processor socketLGA 5964
Processor manufacturerAmpere
Number of processors supported1

Memory

Number of DIMM slots16
Supported memory typesGDDR5
Supported RDIMM clock speeds5200,4400 MHz
Memory channelsOcta-channel

Storage

Number of storage drives supported12
Hot-swap HDD baysYes
Number of 2.5" bays8
Number of 3.5" bays4
Storage drive sizes supported2.5,3.5"

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I210-AT

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
Mini DisplayPorts quantity1

Expansion slots

Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Grey
LED indicatorsHDD, LAN, Power, System
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply1300 W
Number of main power supplies2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current12 - 8 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth710 mm
Height87.5 mm
Weight16.4 kg
Width438 mm

Packaging data

Packaging content1 x R263-P30-AAH1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x Carrier 1 x 2-Section Rail kit
Package width994 mm
Package depth600 mm
Package height293 mm
Package weight18.2 kg
