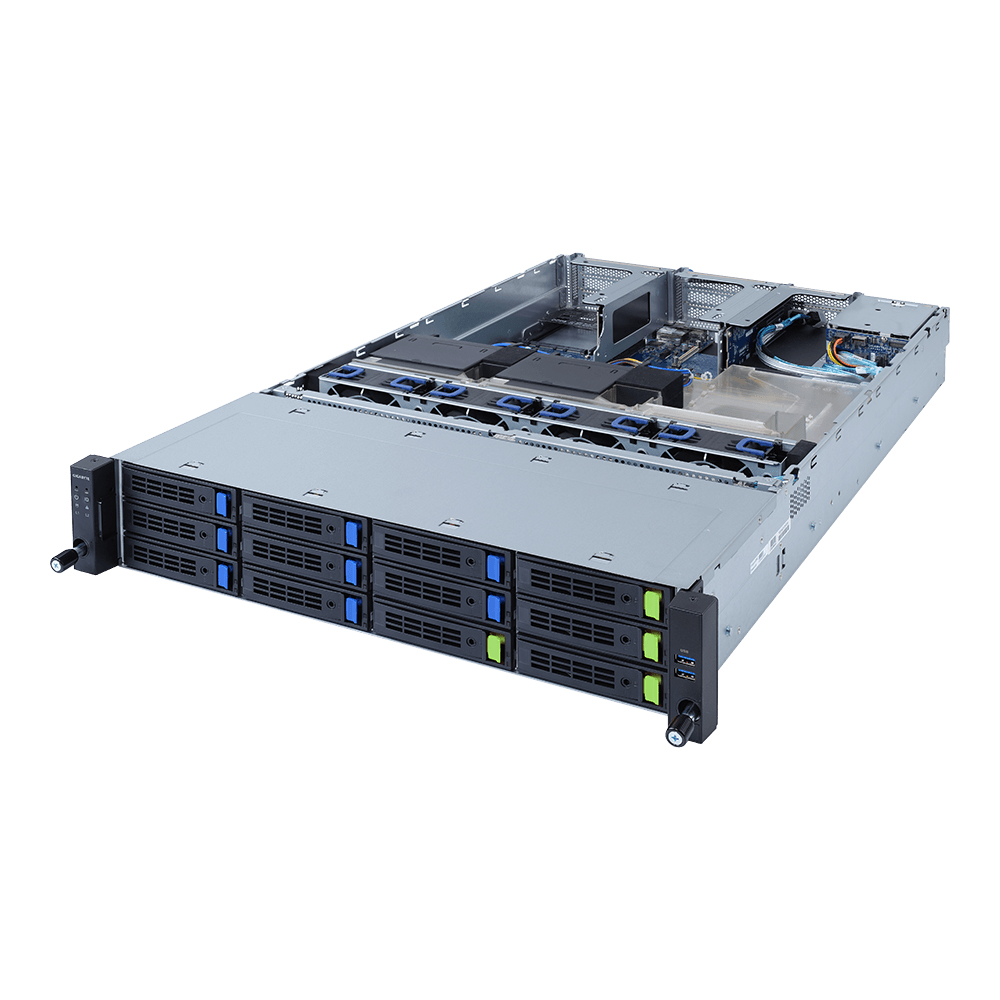

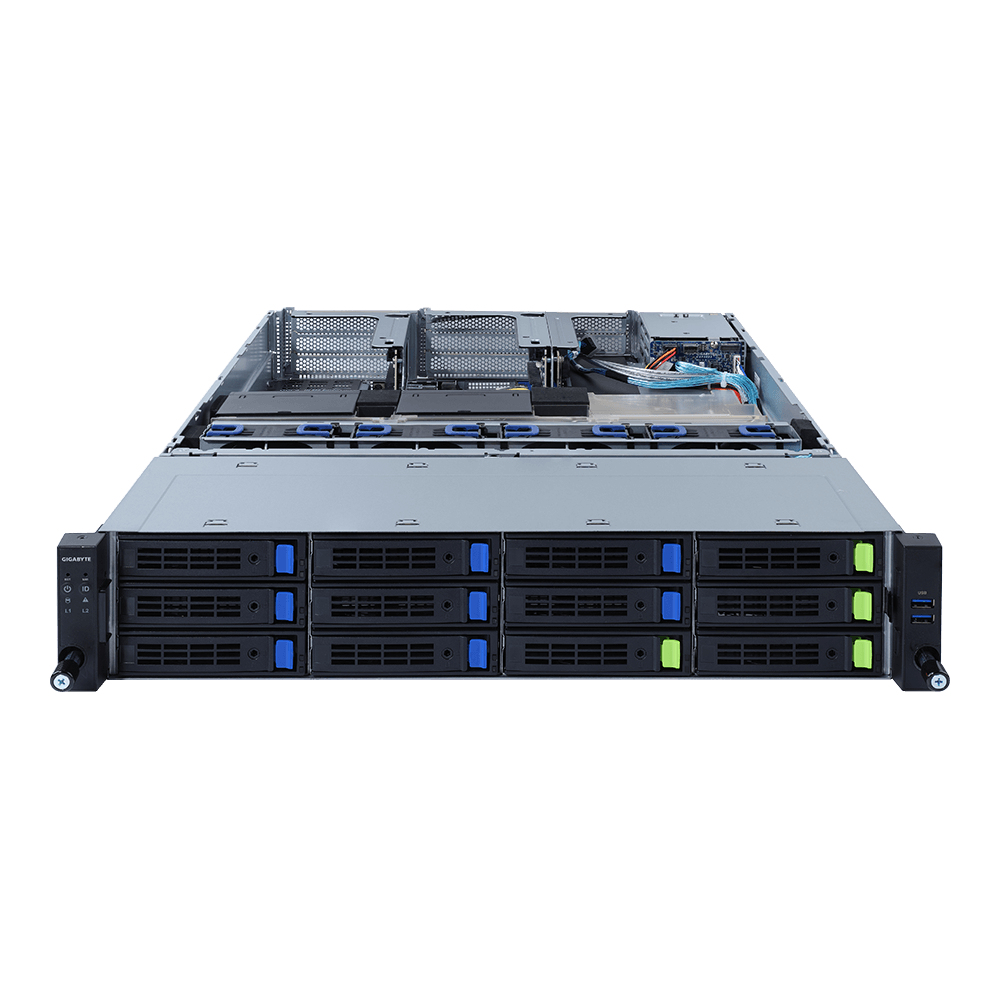

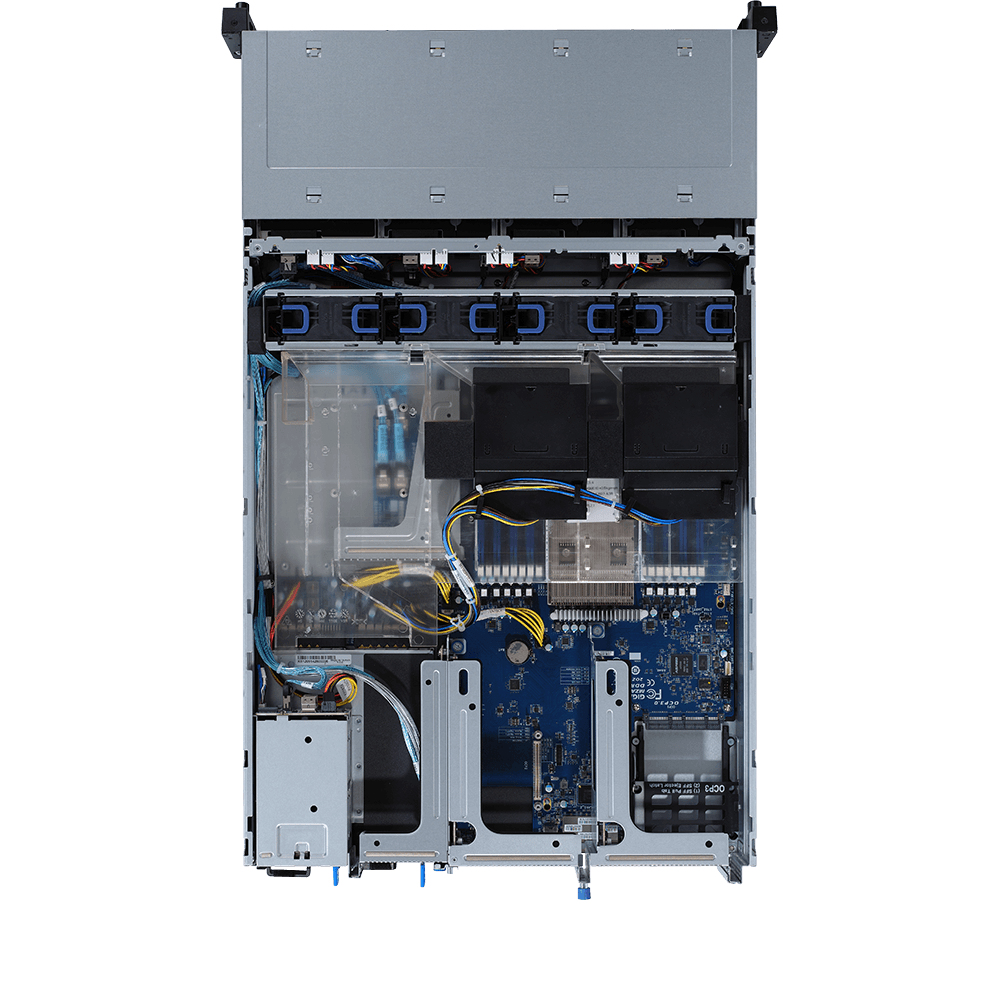

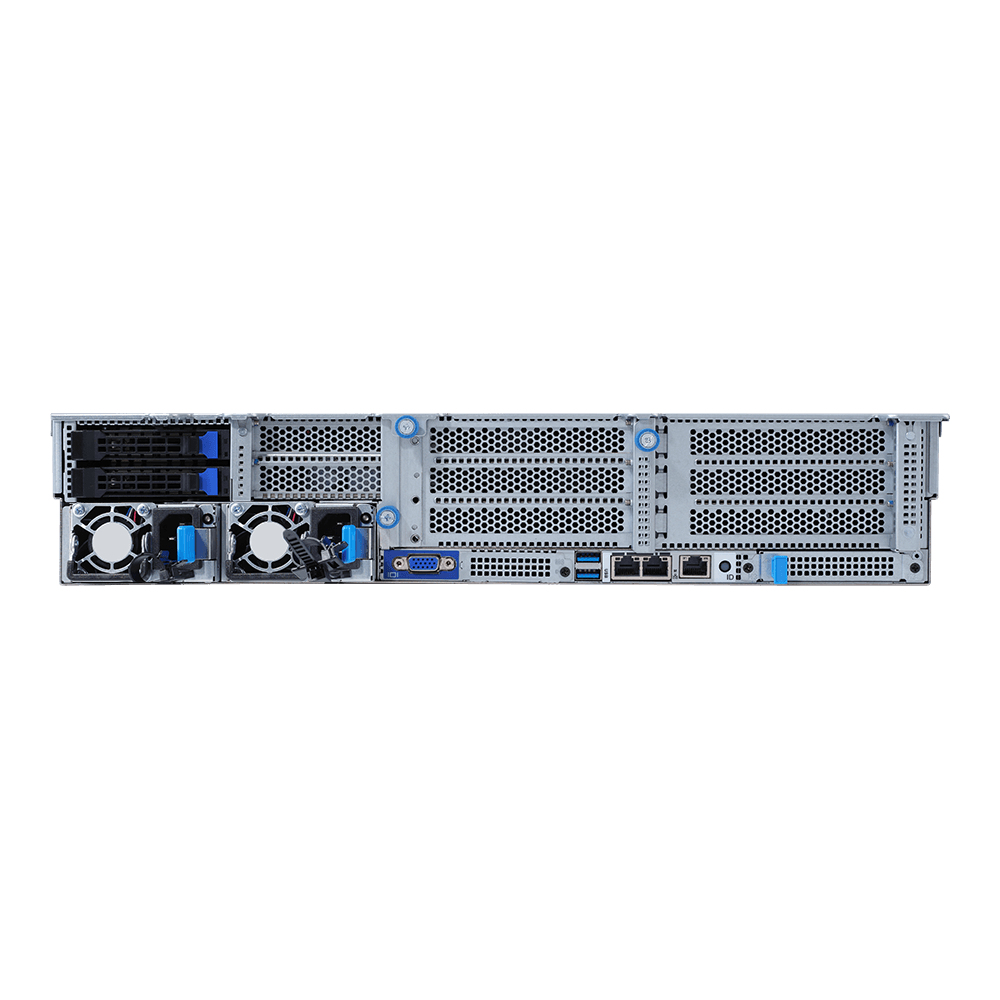

GIGABYTE R262-ZA2 Socket SP3 Rack (2U)
GIGABYTE

R262-ZA2 Socket SP3 Rack (2U)

Model R262-ZA2Part no. 6NR262ZA2MR-00EAN 4719331600518

57 specifications
  • ProcessorAMD
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported12
  • On-board graphics card modelAspeed AST2500
  • Ethernet LANYes
See all specifications

Overview

Processor
AMD
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
12
On-board graphics card model
Aspeed AST2500
Ethernet LAN
Yes
Brand
GIGABYTE
Model
R262-ZA2
Part number
6NR262ZA2MR-00
EAN / UPC
4719331600518
Also known as
GIGABYTE R262-ZA2 Socket SP3 Rack (2U)

Specifications

57 specifications in 14 groups

Processor

Built-in processorNo
Processor socketSocket SP3
Processor manufacturerAMD
Processor familyAMD
Number of processors supported1

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities8GB, 16GB, 32GB, 64GB, 128GB
Maximum RDIMM memory128 GB
Maximum UDIMM memory128 GB
Supported RDIMM clock speeds2933,3200 MHz
Supported UDIMM clock speeds3200 MHz

Storage

Number of storage drives supported12
Hot-swap HDD baysYes
Number of 3.5" bays12
Storage drive sizes supported3.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, Serial Attached SCSI (SAS)

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express slots version4.0
PCI Express x8 slots4
PCI Express x16 slots4
Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Compatible operating systemsWindows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 18.04.5 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.7

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (2U)
LED indicatorsHDD, LAN, Power, System
On/off switchYes
Reset buttonYes
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply1600 W
Number of main power supplies2
AC input voltage200 - 240 V
AC input frequency47 - 63 Hz
Input current12 - 7 A
DC output current (+12 V)132 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth730 mm
Height87.5 mm
Width438 mm

Packaging data

Packaging content1 x R262-ZA2 1 x CPU heatsink 1 x Rail kit
Package width588 mm
Package depth947 mm
Package height268 mm
