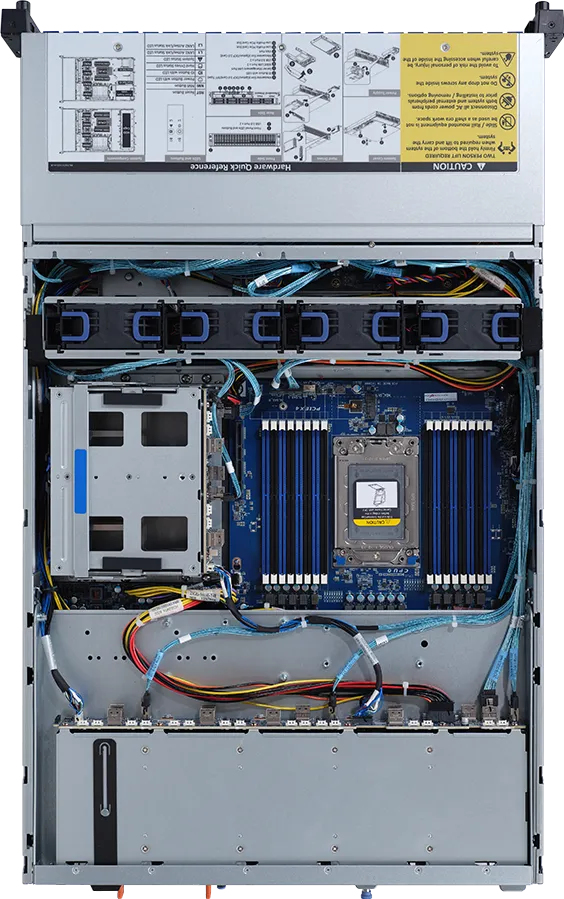

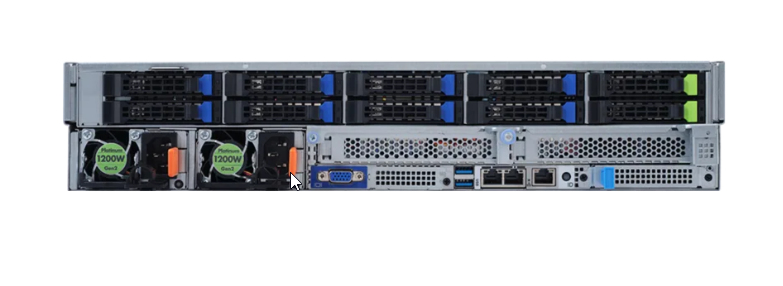

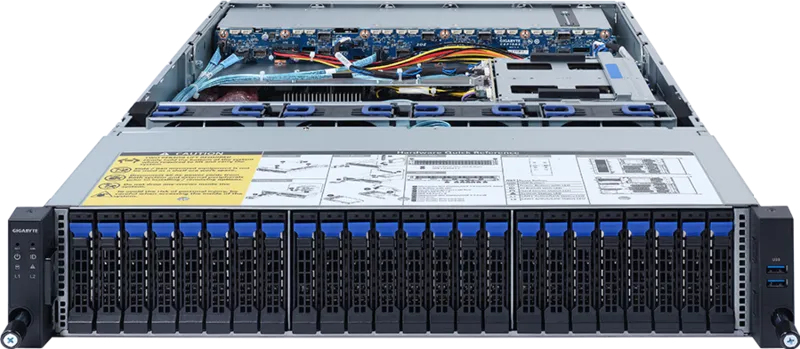

GIGABYTE R262-ZA0 Rack (2U) Black, Steel
GIGABYTE

R262-ZA0 Rack (2U) Black, Steel

Model R262-ZA0Part no. 6NR262ZA0MR-00EAN 4719331600297

52 specifications
  • Weight21.6 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported43
  • On-board graphics card modelAspeed AST2520
See all specifications

Overview

Weight
21.6 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
43
On-board graphics card model
Aspeed AST2520
Brand
GIGABYTE
Model
R262-ZA0
Part number
6NR262ZA0MR-00
EAN / UPC
4719331600297
Also known as
GIGABYTE R262-ZA0 Rack (2U) Black, Steel

Specifications

52 specifications in 13 groups

Processor

Built-in processorNo
Compatible processor seriesAMD EPYC 7003, AMD EPYC 7002

Memory

Number of DIMM slots16
Supported memory typesGDDR5
Memory channelsOcta-channel

Storage

Number of storage drives supported43
Hot-swap HDD baysYes
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, PCI Express 4.0

Graphics

On-board graphics card modelAspeed AST2520

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
Mini DisplayPorts quantity1
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express slots version4.0
Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsHDD, LAN, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply1200 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported1
AC input voltage100 - 240 V
AC input frequency47 - 63 Hz
Input current12.47 - 7.08 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth730 mm
Height87.5 mm
Weight21.6 kg
Width438 mm

Packaging data

Packaging content1 x R262-ZA0 1 x CPU heatsink 1 x 2-Section Rail kit
Package width982 mm
Package depth588 mm
Package height268 mm
Package weight32 kg
