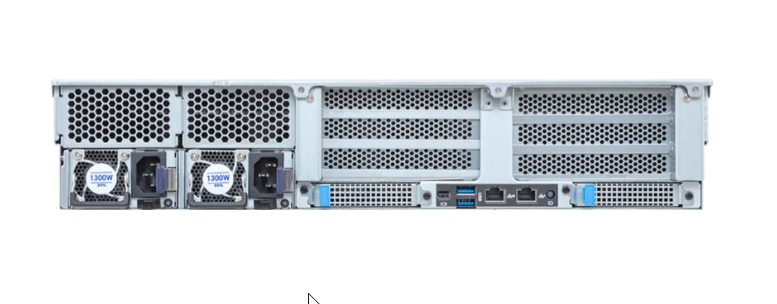

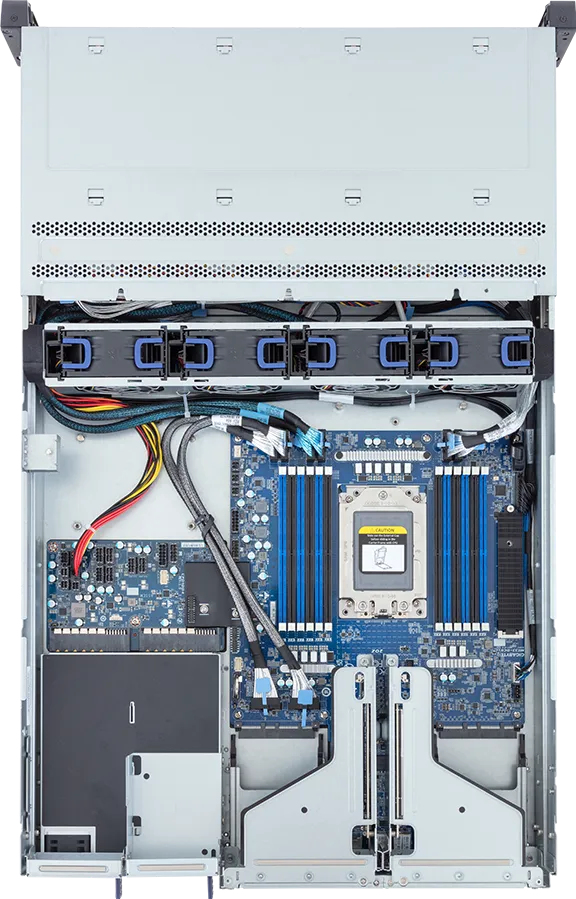

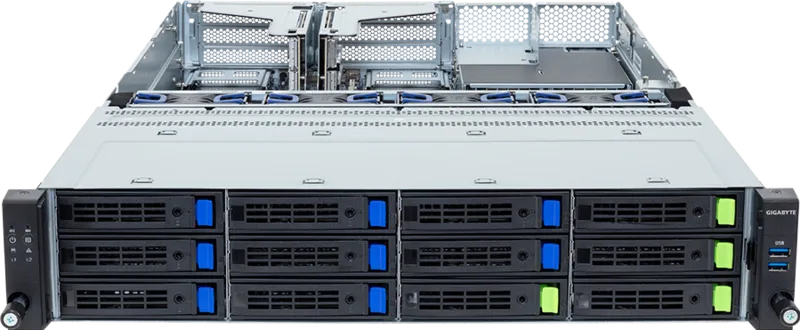

GIGABYTE R243-E30-AAC1 Socket SP6 Rack (2U) Black, Steel
GIGABYTE

R243-E30-AAC1 Socket SP6 Rack (2U) Black, Steel

Model R243-E30-AAC1Part no. 6NR243E30DR000AAC1EAN 4719331859305

54 specifications
  • Weight27.3 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots12
  • Number of storage drives supported13
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
27.3 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
12
Number of storage drives supported
13
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
R243-E30-AAC1
Part number
6NR243E30DR000AAC1
EAN / UPC
4719331859305
Also known as
GIGABYTE R243-E30-AAC1 Socket SP6 Rack (2U) Black, Steel

Specifications

54 specifications in 13 groups

Processor

Built-in processorNo
Processor socketSocket SP6
Number of processors supported1
Compatible processor seriesAMD EPYC 8005 Series, AMD EPYC 8004

Memory

Number of DIMM slots12
Supported memory typesGDDR5
Memory channelsHexa-channel

Storage

Number of storage drives supported13
Hot-swap HDD baysYes
Number of 2.5" bays11
Storage drive sizes supported2.5,3.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, PCI Express 4.0

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I210-AT

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
Mini DisplayPorts quantity1

Expansion slots

PCI Express slots version4.0
Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsHDD, LAN, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter4 cm
Number of fans4 fan(s)

Power

Power supply1300 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported1
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current12 - 7 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth710 mm
Height87.5 mm
Weight27.3 kg
Width438 mm

Packaging data

Packaging content1 x R243-E30-AAC1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x 2-Section Rail kit
Package width994 mm
Package depth600 mm
Package height293 mm
Package weight30.1 kg
