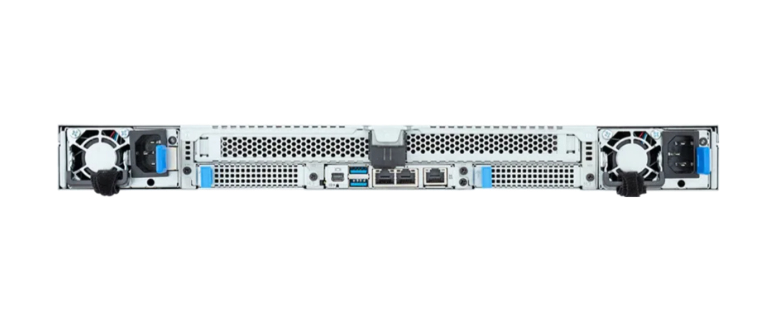

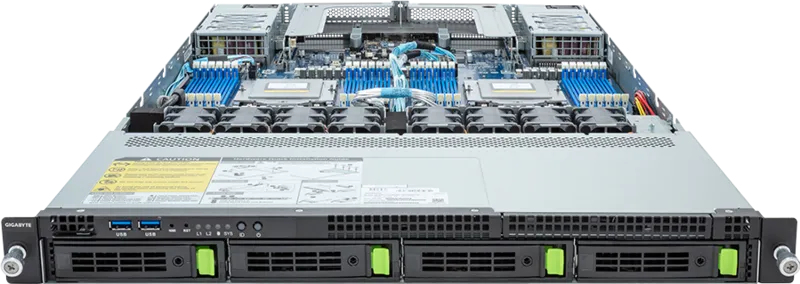

GIGABYTE R183-Z90-AAV1 LGA 6096 Rack (1U) Black, Steel
GIGABYTE

R183-Z90-AAV1 LGA 6096 Rack (1U) Black, Steel

Model R183-Z90-AAV1Part no. 6NR183Z90DR000AAV1EAN 4719331861131

55 specifications
  • Weight22.7 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots24
  • Number of storage drives supported7
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
22.7 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
24
Number of storage drives supported
7
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
R183-Z90-AAV1
Part number
6NR183Z90DR000AAV1
EAN / UPC
4719331861131
Also known as
GIGABYTE R183-Z90-AAV1 LGA 6096 Rack (1U) Black, Steel

Specifications

55 specifications in 13 groups

Processor

Built-in processorNo
Processor socketLGA 6096
Number of processors supported2
Compatible processor seriesAMD EPYC 9004

Memory

Number of DIMM slots24
Supported memory typesGDDR5
Memory channelsDodeca-channel

Storage

Number of storage drives supported7
Hot-swap HDD baysYes
Number of 2.5" bays4
Number of 3.5" bays4
Storage drive sizes supported2.5,3.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, PCI Express 4.0

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
Mini DisplayPorts quantity1

Expansion slots

PCI Express slots version4.0
Number of M.2 (M) slots3

Features

Trusted Platform Module (TPM)Yes

Design

Chassis typeRack (1U)
Product colourBlack, Steel
LED indicatorsHDD, LAN, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter4 cm
Number of fans8 fan(s)

Power

Power supply1600 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported1
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current10 - 12 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth815 mm
Height43.5 mm
Weight22.7 kg
Width438 mm

Packaging data

Packaging content1 x R183-Z90-AAV1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 1 x 2-Section Rail kit
Package width1052 mm
Package depth602 mm
Package height267 mm
Package weight28.3 kg
