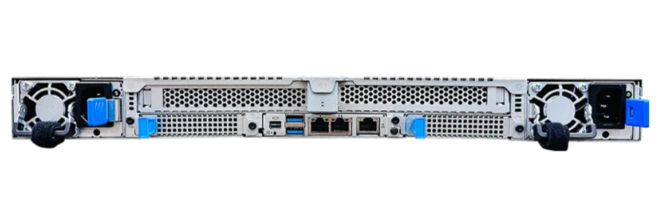

GIGABYTE R183-S92-AAV1 Intel C741 LGA 4677 (Socket E) Rack (1U) Black, Steel
GIGABYTE

R183-S92-AAV1 Intel C741 LGA 4677 (Socket E) Rack (1U) Black, Steel

Model R183-S92-AAV1Part no. 6NR183S92DR000ABV1

58 specifications
  • Weight25.6 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots32
  • Number of storage drives supported12
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
25.6 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
32
Number of storage drives supported
12
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
R183-S92-AAV1
Part number
6NR183S92DR000ABV1
Also known as
GIGABYTE R183-S92-AAV1 Intel C741 LGA 4677 (Socket E) Rack (1U) Black, Steel

Specifications

58 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C741
Processor socketLGA 4677 (Socket E)
Number of processors supported2
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots32
Supported memory typesDDR5-SDRAM
Memory channelsOcta-channel

Storage

Number of storage drives supported12
Hot-swap HDD baysYes
Number of 2.5" bays12
Storage drive sizes supported2.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, Serial Attached SCSI (SAS)
SSD form factor2.5"

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Ethernet LAN (RJ-45) ports2
Mini DisplayPorts quantity1

Expansion slots

PCI Express x16 (Gen 5.x) slots2

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (1U)
Product colourBlack, Steel
LED indicatorsLAN, HDD, SSD, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter4 cm
Heat sink includedYes
Number of fans8 fan(s)

Power

Power supply1600 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current10 - 12 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth815 mm
Height43.5 mm
Weight25.6 kg
Width438 mm

Packaging data

Packaging content1 x R183-S92-AAV1; 2 x CPU heatsinks; 1 x Mini-DP to D-Sub cable; 6 x Carriers; 1 x 2-Section Rail kit
Package width1052 mm
Package depth602 mm
Package height267 mm
Package weight27.6 kg
