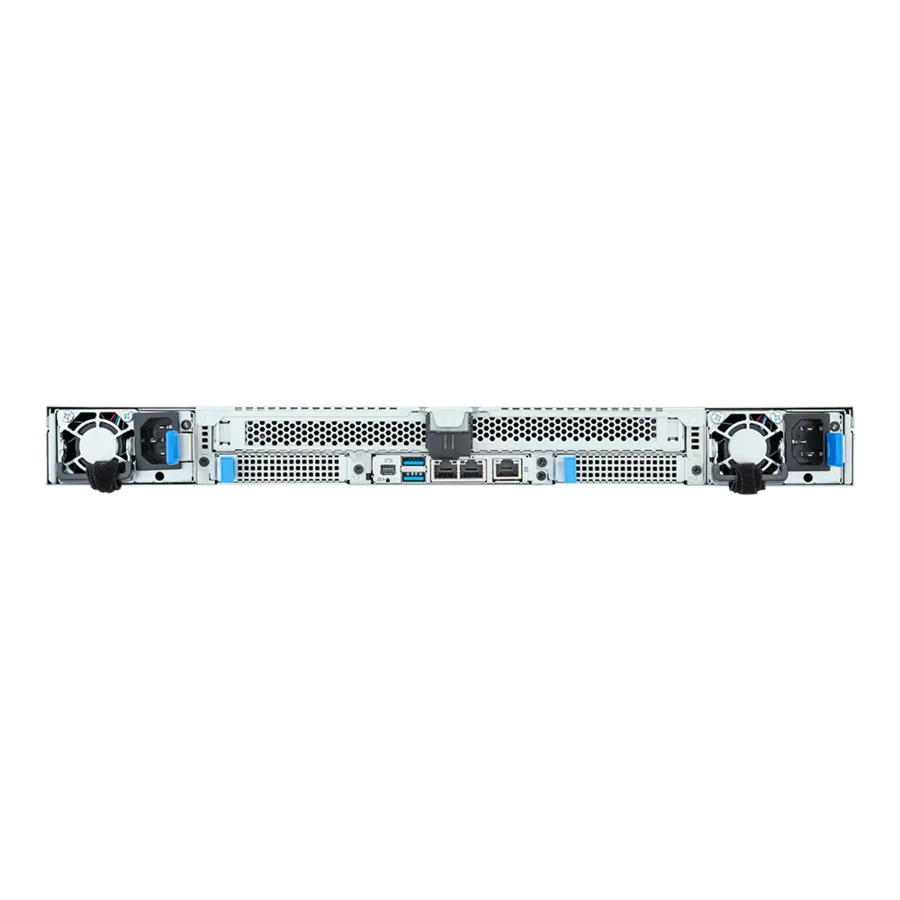

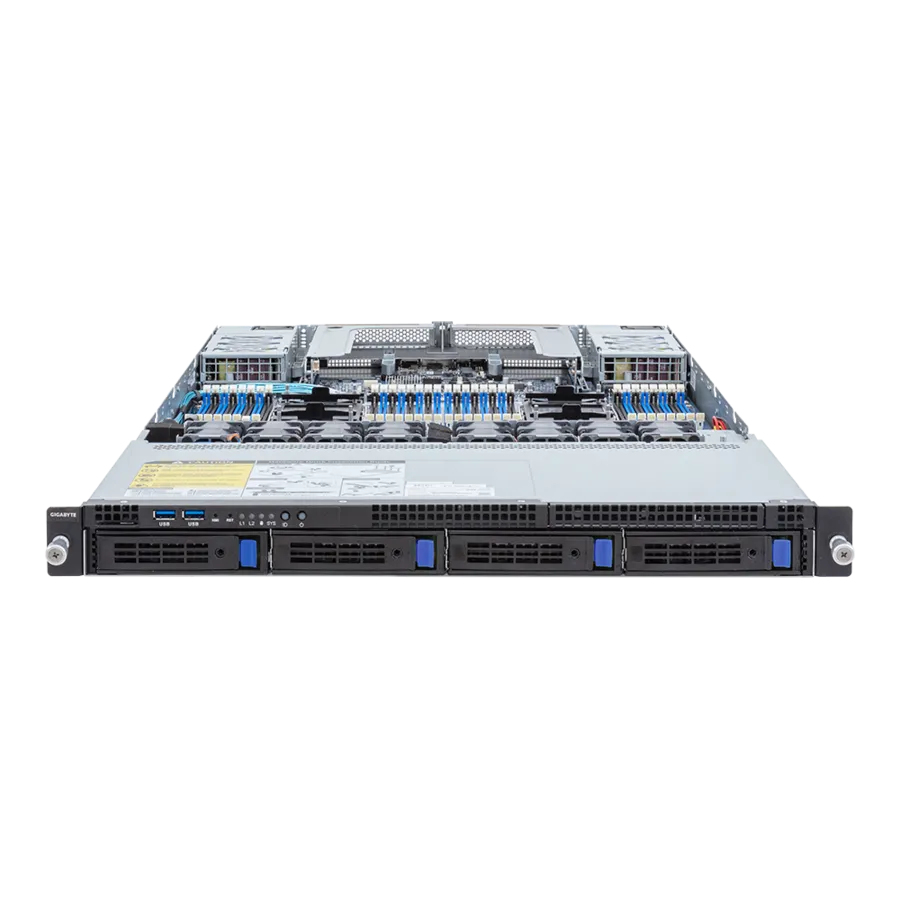

R183 Intel C741 LGA 4677 (Socket E) Rack (1U)
Model R183Part no. 6NR183Z92DR000AAD3EAN 4719331850609
52 specifications
- ProcessorIntel® Xeon®
- GraphicsNot available
- Weight21.9 kg
- Built-in processorNo
- Number of DIMM slots32
- Number of storage drives supported4
Overview
- Processor
- Intel® Xeon®
- Graphics
- Not available
- Weight
- 21.9 kg
- Built-in processor
- No
- Number of DIMM slots
- 32
- Number of storage drives supported
- 4
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- R183
- Part numbers
- 6NR183Z92DR000AAD3, R183-S92-AAD1, 6NR183S93DR000AAB1, R183-S92-AAD3, R183-Z92-AAD2, R183-Z92-AAD1 +34 more
- EAN / UPC
- 4719331850609, 4719331853396, 4719331853402, 4719331850616 +14 more
- Also known as
- GIGABYTE R183 Intel C741 LGA 4677 (Socket E) Rack (1U)
Specifications
52 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel C741 |
| Processor socket | LGA 4677 (Socket E) |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor generation | Intel Xeon Scalable 4th Gen |
| Number of processors supported | 2 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 32 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 16GB, 32GB, 64GB, 128GB |
| Supported RDIMM clock speeds | 2933,3200 MHz |
| Memory channels | Octa-channel |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 4 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 4 |
| Storage drive sizes supported | 2.5,3.5" |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card model | Aspeed AST2500 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 4.0 |
| PCI Express x16 slots | 4 |
| Number of M.2 (M) slots | 1 |
Features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Backplanes support | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| LED indicators | HDD, LAN, Status |
Power
| Specification | Value |
|---|---|
| Power supply | 1600 W |
| Number of main power supplies | 2 |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 1 |
| AC input voltage | 100 - 240 V |
| DC output current (+12 V) | 97 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 730 mm |
| Weight | 21.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Packaging content | 1 x R183-S90-AAD2 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 6 x Carriers 1 x 2-Section Rail kit |
| Package width | 1045 mm |
| Package depth | 595 mm |
| Package height | 249 mm |
| Package weight | 24.5 kg |
