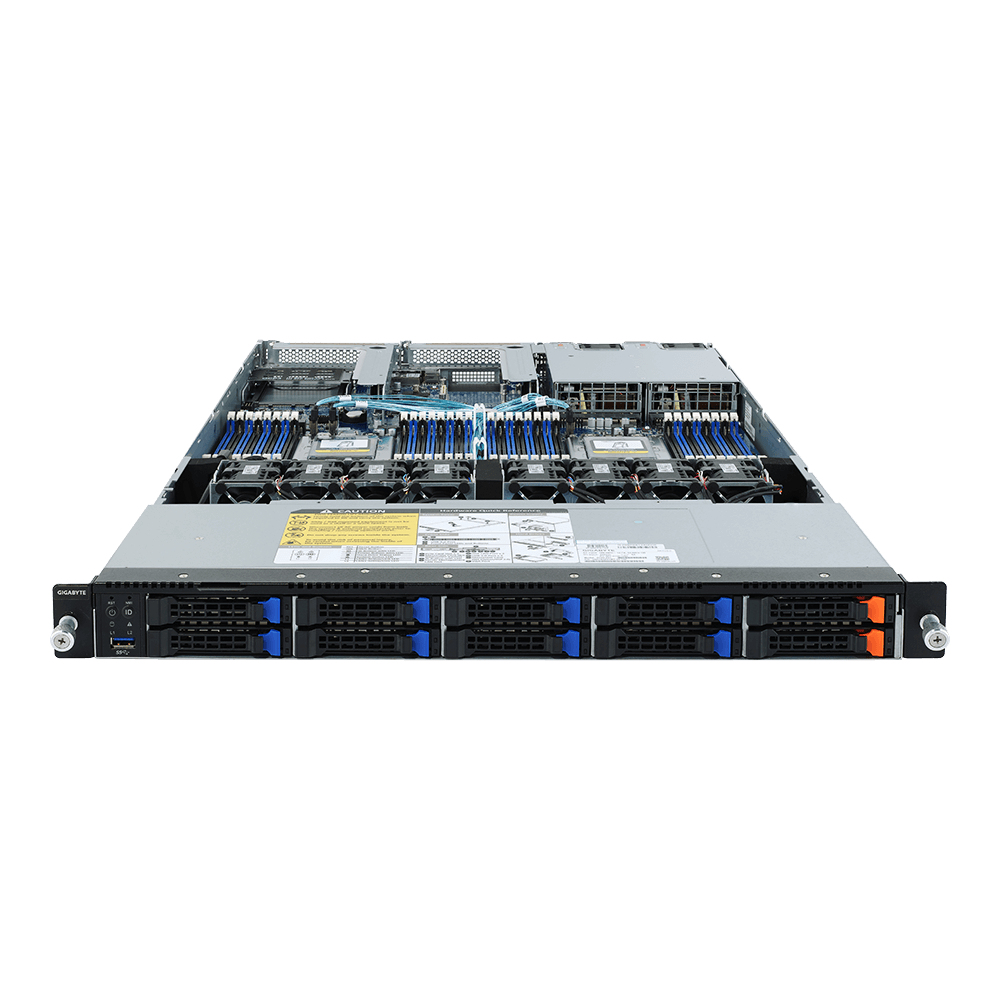

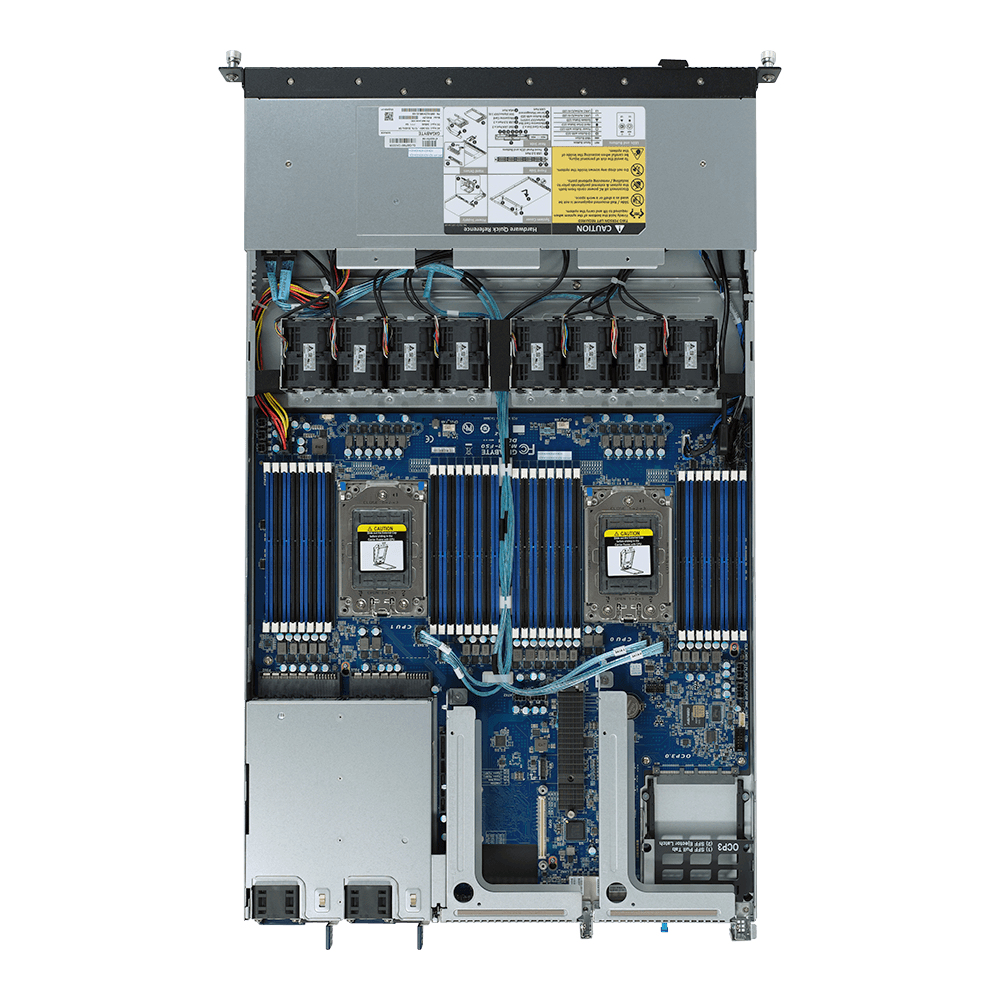

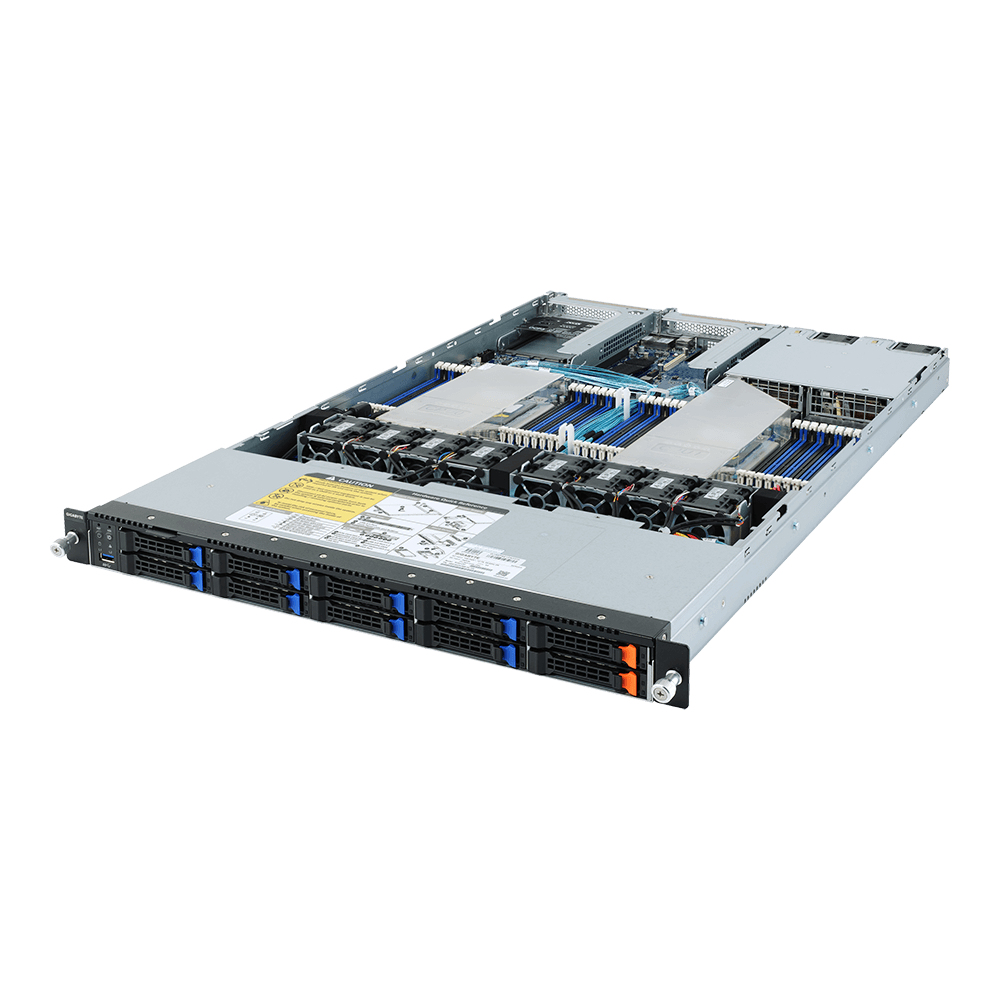

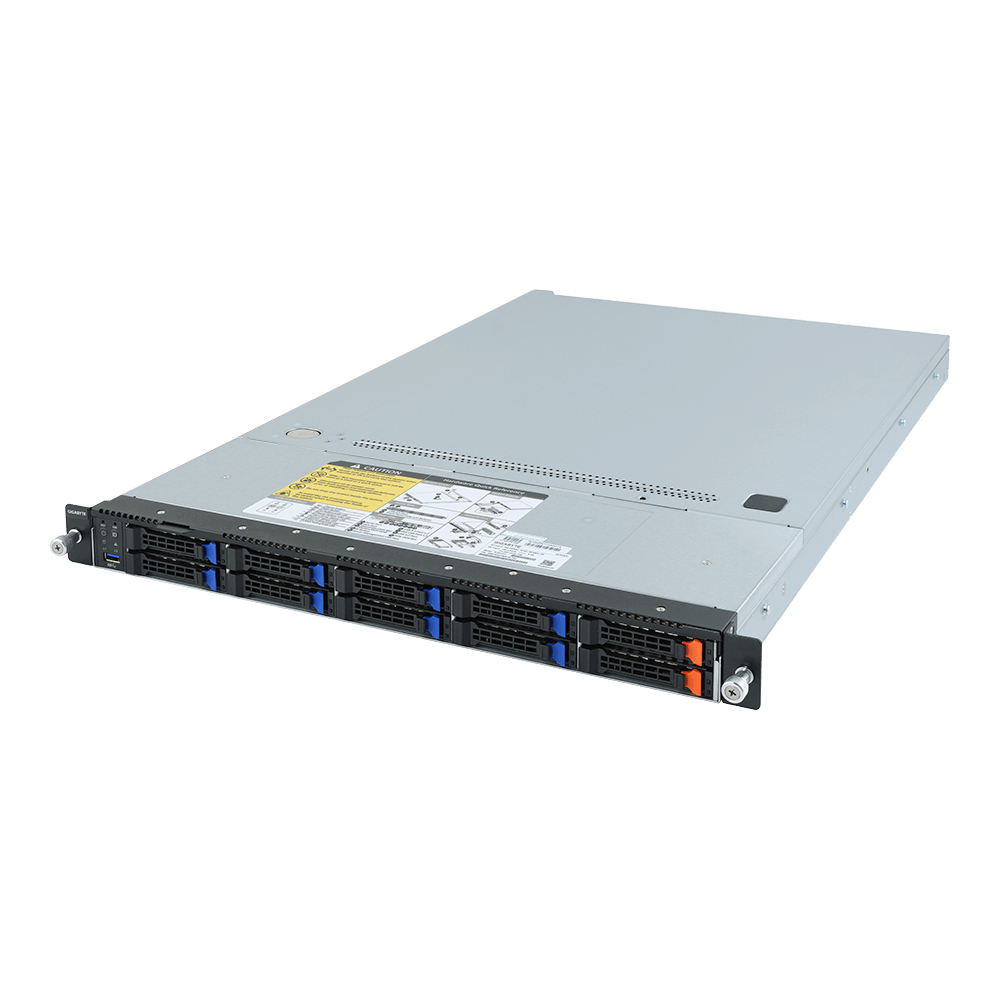

GIGABYTE R182-Z91 Socket SP3 Rack (1U) Black, Grey
GIGABYTE

R182-Z91 Socket SP3 Rack (1U) Black, Grey

Model R182-Z91Part no. 6NR182Z91MR-00EAN 4719331191184

57 specifications
  • ProcessorAMD
  • Weight13 kg
  • ColourBlack, Grey
  • Built-in processorNo
  • Number of DIMM slots32
  • Number of storage drives supported10
See all specifications

Overview

Processor
AMD
Weight
13 kg
Colour
Black, Grey
Built-in processor
No
Number of DIMM slots
32
Number of storage drives supported
10
Brand
GIGABYTE
Model
R182-Z91
Part numbers
6NR182Z91MR-00, R182-Z91
EAN / UPC
4719331191184, 889523019542
Also known as
GIGABYTE R182-Z91 Socket SP3 Rack (1U) Black, Grey

Specifications

57 specifications in 14 groups

Processor

Built-in processorNo
Processor socketSocket SP3
Processor familyAMD
Number of processors supported2
Compatible processor seriesAMD EPYC

Memory

Number of DIMM slots32
Supported memory typesDDR4-SDRAM
Maximum internal memory128 GB
Maximum RDIMM memory64 GB
Supported RDIMM clock speeds2933,3200 MHz
Memory channelsOcta-channel

Storage

Number of storage drives supported10
Hot-swap HDD baysYes
Number of 2.5" bays8
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, Serial ATA, Serial Attached SCSI (SAS)

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express x16 slots2
Number of M.2 (M) slots1

Features

Backplanes supportYes
Compatible operating systemsWindows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64)+ Red Hat Enterprise Linux 8.0 ( x64)+ SUSE Linux Enterprise Server 12 SP4 ( x64)+ SUSE Linux Enterprise Server 15 SP1 ( x64)+ Ubuntu 16.04.6 LTS (x64)+ Ubuntu 18.04.3 LTS (x64)+ VMware ESXi 6.5 EP15+ VMware ESXi 6.7 Update3+

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (1U)
Product colourBlack, Grey
LED indicatorsHDD, LAN, System
On/off switchYes
Reset buttonYes
Fan diameter4 cm
Number of fans8 fan(s)

Power

Power supply1200 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current12 - 7 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth730 mm
Height43.5 mm
Weight13 kg
Width438 mm

Packaging data

Package width985 mm
Package depth588 mm
Package height250 mm
Package weight22 kg
