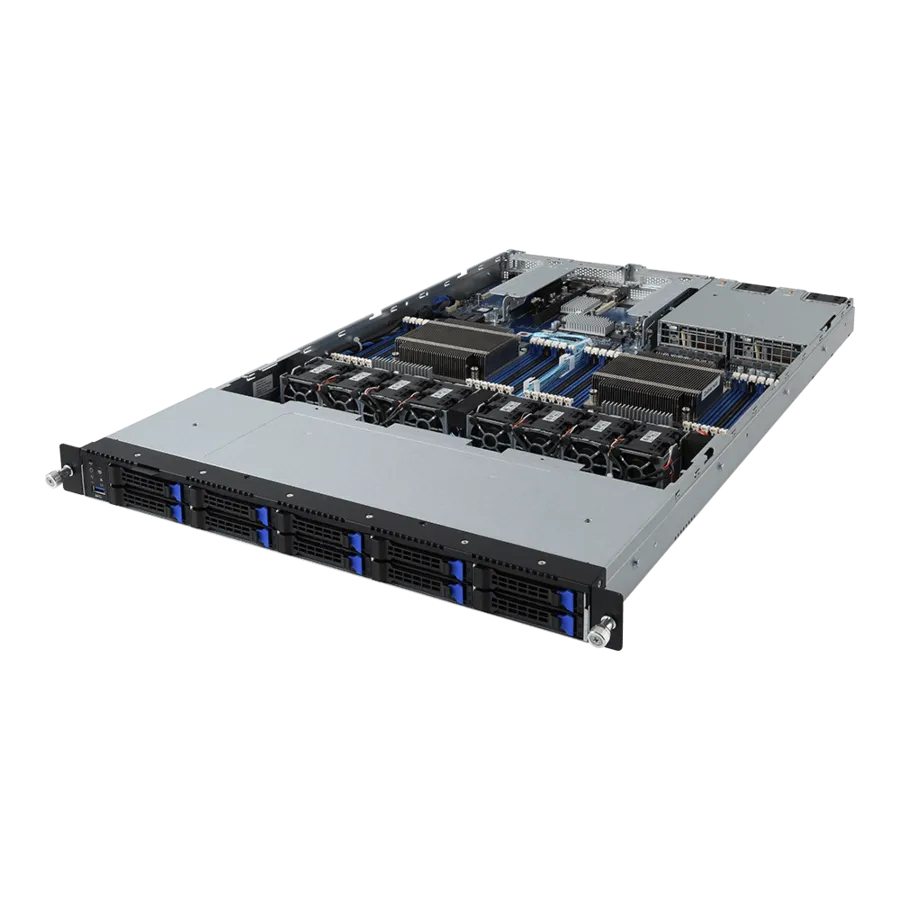

R181-T92 server barebone Rack (1U)
Model R181-T92
49 specifications
- Weight13 kg
- Built-in processorNo
- Number of DIMM slots24
- Number of storage drives supported10
- On-board graphics card modelAspeed AST2500
- Ethernet LANYes
Overview
- Weight
- 13 kg
- Built-in processor
- No
- Number of DIMM slots
- 24
- Number of storage drives supported
- 10
- On-board graphics card model
- Aspeed AST2500
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- R181-T92
- Part number
- R181-T92
- Also known as
- GIGABYTE R181-T92 server barebone Rack (1U)
Specifications
49 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Number of processors supported | 2 |
| Compatible processor series | Intel® Xeon® |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 24 |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 1.53 TB |
| Supported RDIMM clock speeds | 2133,2400,2666 MHz |
| Memory voltage | 1.2 V |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 10 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial Attached SCSI (SAS), Serial ATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2500 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 3 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Processor special features
| Specification | Value |
|---|---|
| Intelligent Platform Management Interface (IPMI) support | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| LED indicators | Yes |
| Reset button | Yes |
| Fan diameter | 4 cm |
| Number of fans | 8 fan(s) |
| Redundant fans support | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 1200 W |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| AC input voltage | 100 - 240 V |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 730 mm |
| Height | 43.5 mm |
| Weight | 13 kg |
| Width | 438 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 588 mm |
| Package depth | 959 mm |
| Package height | 248 mm |
