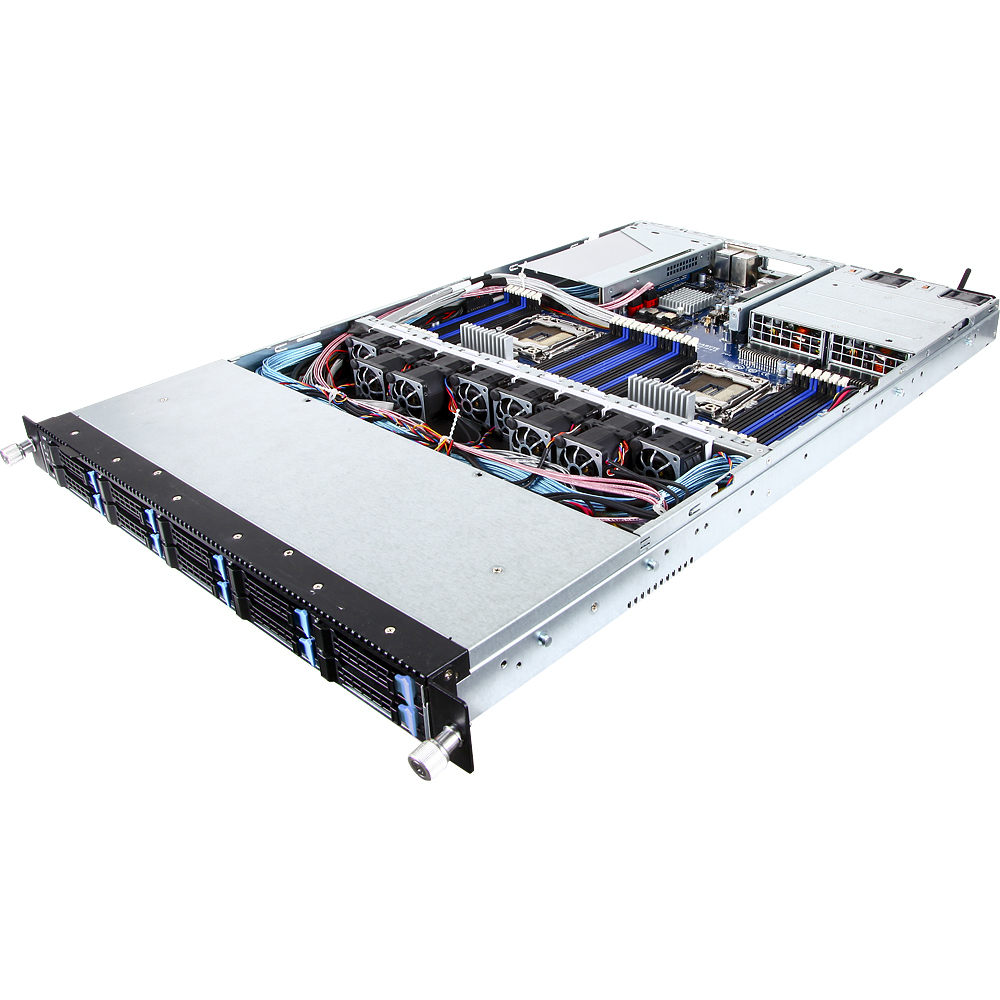

GIGABYTE R180-F2A Intel® C612 LGA 2011-v3 Rack (1U)
GIGABYTE

R180-F2A Intel® C612 LGA 2011-v3 Rack (1U)

Model R180-F2APart no. 6NR180F2AMR-00EAN 4719331252083

54 specifications
  • ProcessorIntel® Xeon®
  • Weight10 kg
  • Built-in processorNo
  • Number of DIMM slots24
  • Number of storage drives supported10
  • On-board graphics card modelAspeed AST2400
See all specifications

Overview

Processor
Intel® Xeon®
Weight
10 kg
Built-in processor
No
Number of DIMM slots
24
Number of storage drives supported
10
On-board graphics card model
Aspeed AST2400
Brand
GIGABYTE
Model
R180-F2A
Part number
6NR180F2AMR-00
EAN / UPC
4719331252083
Also known as
GIGABYTE R180-F2A Intel® C612 LGA 2011-v3 Rack (1U)

Specifications

54 specifications in 14 groups

Processor

Built-in processorNo
Motherboard chipsetIntel® C612
Processor socketLGA 2011-v3
Processor familyIntel® Xeon®
Number of processors supported2
Compatible processor seriesIntel® Xeon®
Intel Xeon seriesE5-2600

Memory

Number of DIMM slots24
Supported memory typesDDR4-SDRAM
Maximum internal memory3 TB
Supported RDIMM clock speeds1600,1866,2133,2400,2666 MHz
Memory voltage1.2 V

Storage

Number of storage drives supported10
Hot-swap HDD baysYes
Storage drive sizes supported2.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial Attached SCSI (SAS), Serial ATA III
RAID levels0, 1, 5, 10

Graphics

On-board graphics card modelAspeed AST2400

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates1000 Mbit/s

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Ethernet LAN (RJ-45) ports4
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express x8 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots2

Logistics data

Harmonized System (HS) code84714100

Processor special features

Intelligent Platform Management Interface (IPMI) supportYes

Design

Chassis typeRack (1U)
LED indicatorsYes
Reset buttonYes
Fan diameter4 cm
Number of fans8 fan(s)
Redundant fans supportYes

Power

Power supply800 W
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency47 - 63 Hz
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth710 mm
Height43.5 mm
Weight10 kg
Width430 mm

Packaging data

Package width588 mm
Package depth959 mm
Package height248 mm
