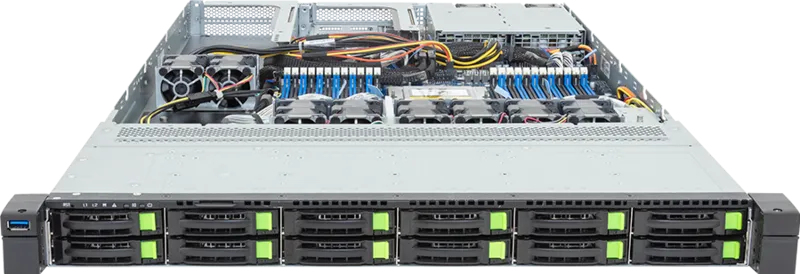

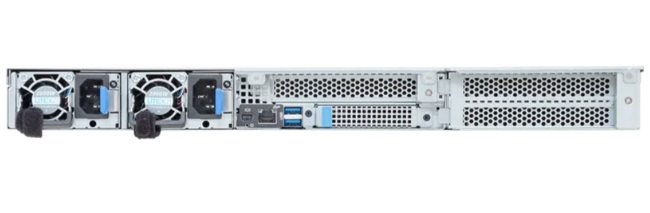

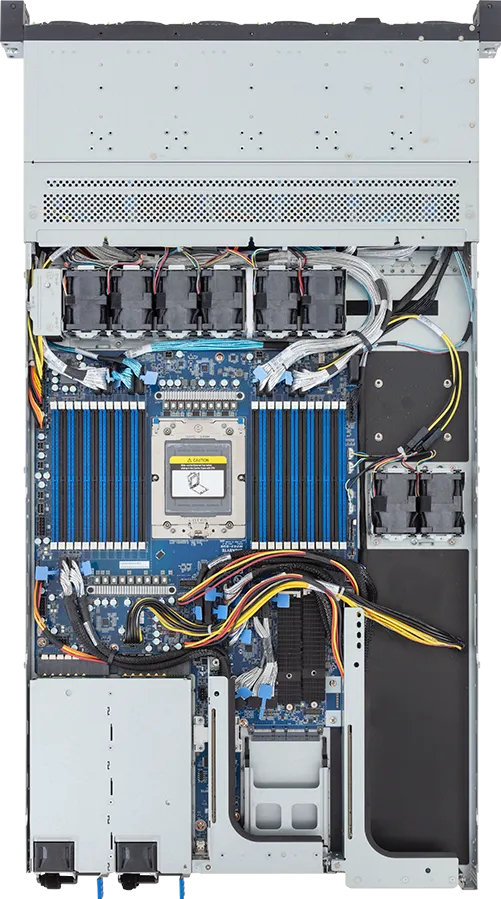

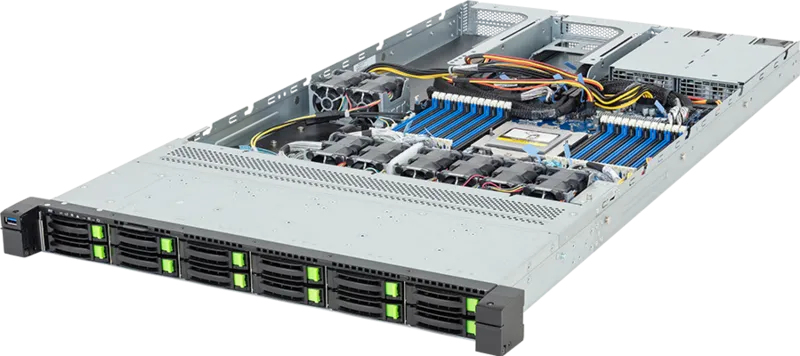

GIGABYTE R163-ZG2-AAJ2 Rev. 3.x
GIGABYTE

R163-ZG2-AAJ2 Rev. 3.x

Model R163-ZG2-AAJ2 Rev. 3.xPart no. 6NR163ZG2DR000ACJ2EAN 4719331865115

55 specifications
  • Weight13.5 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots24
  • Number of storage drives supported14
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
13.5 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
24
Number of storage drives supported
14
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
R163-ZG2-AAJ2 Rev. 3.x
Part number
6NR163ZG2DR000ACJ2
EAN / UPC
4719331865115
Also known as
GIGABYTE R163-ZG2-AAJ2 Rev. 3.x AMD SoC Socket SP5 Rack (1U) Black, Steel

Specifications

55 specifications in 12 groups

Processor

Built-in processorNo
Motherboard chipsetAMD SoC
Processor socketSocket SP5
Number of processors supported1
Compatible processor seriesAMD EPYC 9005, AMD EPYC 9004

Memory

Number of DIMM slots24
Supported memory typesDDR5-SDRAM
Memory channelsDodeca-channel

Storage

Number of storage drives supported14
Hot-swap HDD baysYes
Number of 2.5" bays12
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, PCI Express 3.0, Serial Attached SCSI (SAS)-4
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Ethernet LAN (RJ-45) ports0
Mini DisplayPorts quantity1

Expansion slots

PCI Express x16 (Gen 5.x) slots3
Number of M.2 (M) slots2

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (1U)
Product colourBlack, Steel
LED indicatorsLAN, HDD, SSD, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter4 cm
Heat sink includedYes
Number of fans8 fan(s)

Power

Power supply2000 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current10 - 12 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth815 mm
Height43.5 mm
Weight13.5 kg
Width438 mm

Packaging data

Packaging content1 x R163-ZG2-AAJ2; 1 x CPU heatsink; 1 x Mini-DP to D-Sub cable; 1 x GPU power cable (12VHPWR, 400mm); 1 x 2-Section Rail kit
Package width1043 mm
Package depth594 mm
Package height252 mm
Package weight15.7 kg
