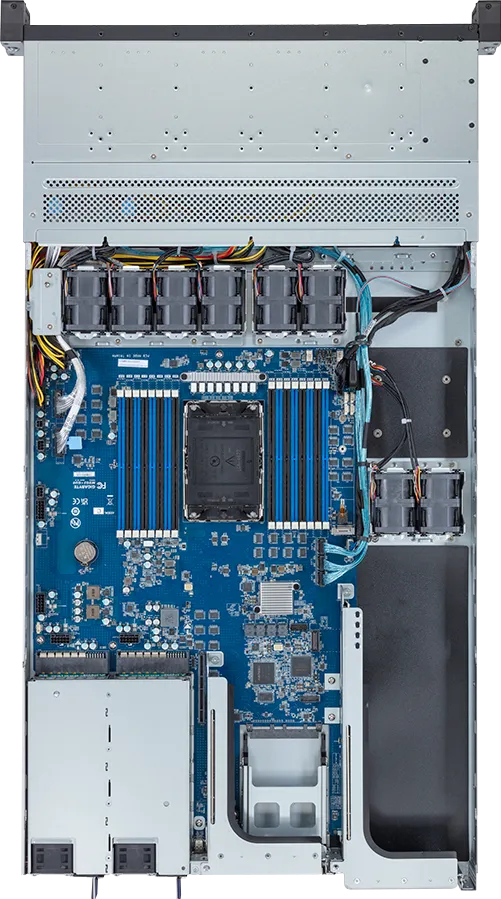

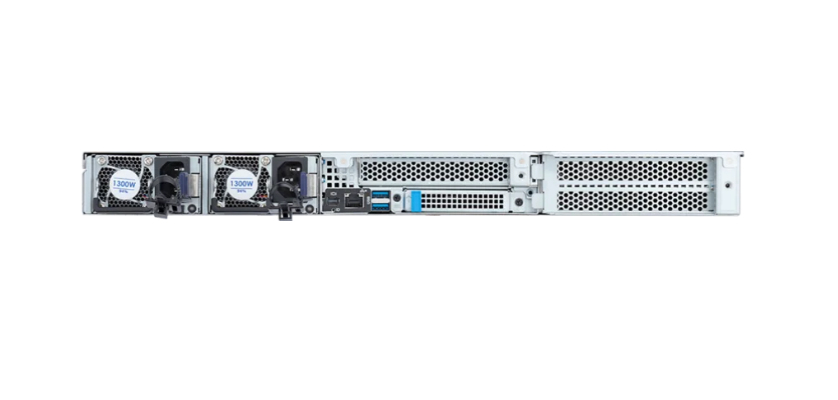

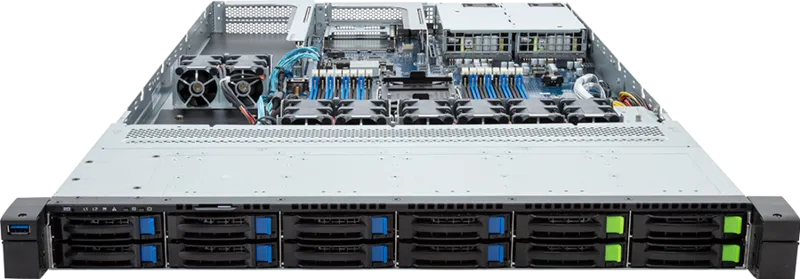

GIGABYTE R163-SG2-AAC1 LGA 4677 (Socket E) Rack (1U) Black, Steel
GIGABYTE

R163-SG2-AAC1 LGA 4677 (Socket E) Rack (1U) Black, Steel

Model R163-SG2-AAC1Part no. 6NR163SG2DR000ABC1EAN 4719331861278

53 specifications
  • Weight21.1 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported13
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
21.1 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
13
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
R163-SG2-AAC1
Part numbers
6NR163SG2DR000ABC1, R163-SG2-AAC1
EAN / UPC
4719331861278
Also known as
GIGABYTE R163-SG2-AAC1 LGA 4677 (Socket E) Rack (1U) Black, Steel

Specifications

53 specifications in 13 groups

Processor

Built-in processorNo
Processor socketLGA 4677 (Socket E)
Number of processors supported1
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots16
Supported memory typesGDDR5
Memory channelsOcta-channel

Storage

Number of storage drives supported13
Hot-swap HDD baysYes
Number of 2.5" bays4
Storage drive sizes supported2.5,3.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, PCI Express 4.0
RAID levels1, 0, 5, 10
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Ethernet LAN (RJ-45) ports1
Mini DisplayPorts quantity1

Expansion slots

Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes

Design

Chassis typeRack (1U)
Product colourBlack, Steel
LED indicatorsLAN, HDD, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter4 cm
Heat sink includedYes
Number of fans8 fan(s)

Power

Power supply1300 W
Number of main power supplies2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current12 - 7 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth815 mm
Height435 mm
Weight21.1 kg
Width438 mm

Packaging data

Packaging content1 x R163-SG2-AAC1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x GPU power cable (16-pin, 400mm) 3 x Carriers 1 x 2-Section Rail kit
Package width1043 mm
Package depth594 mm
Package height252 mm
Package weight26.1 kg
