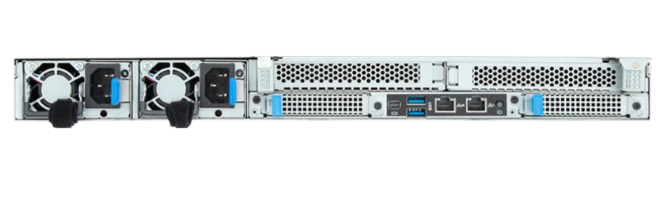

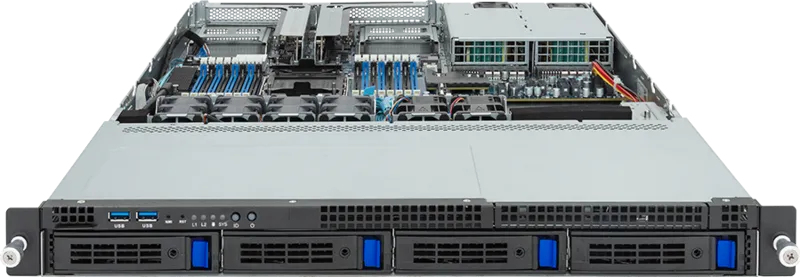

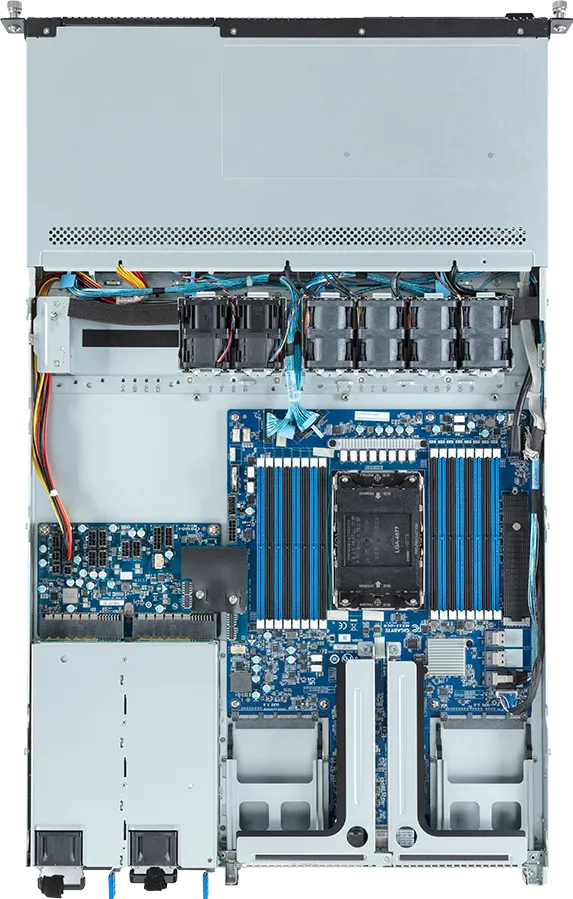

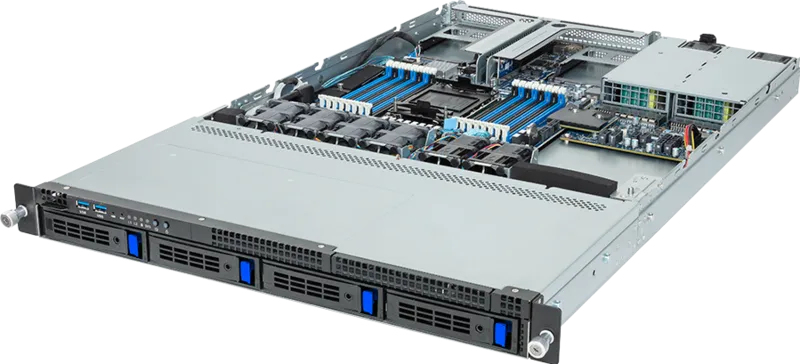

GIGABYTE R163-S30-AAG2 Intel C741 LGA 4677 (Socket E) Rack (1U) Black, Steel
GIGABYTE

R163-S30-AAG2 Intel C741 LGA 4677 (Socket E) Rack (1U) Black, Steel

Model R163-S30-AAG2Part no. 6NR163S30DR000ABG2

60 specifications
  • Weight11.4 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported5
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
11.4 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
5
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
R163-S30-AAG2
Part number
6NR163S30DR000ABG2
Also known as
GIGABYTE R163-S30-AAG2 Intel C741 LGA 4677 (Socket E) Rack (1U) Black, Steel

Specifications

60 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C741
Processor socketLGA 4677 (Socket E)
Number of processors supported1
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots16
Supported memory typesDDR5-SDRAM
Memory channelsOcta-channel

Storage

Number of storage drives supported5
Hot-swap HDD baysYes
Number of 2.5" bays4
Storage drive sizes supported2.5,M.2,3.5
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, PCI Express 3.0, Serial Attached SCSI (SAS)
RAID levels0, 1, 5, 10
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I210-AT

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
Mini DisplayPorts quantity1

Expansion slots

PCI Express x16 (Gen 5.x) slots2
Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (1U)
Product colourBlack, Steel
LED indicatorsLAN, HDD, SSD, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter4 cm
Heat sink includedYes
Number of fans6 fan(s)

Power

Power supply800 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current5 - 10 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth710 mm
Height43.5 mm
Weight11.4 kg
Width438 mm

Packaging data

Packaging content1 x R163-S30-AAG2; 1 x CPU heatsink; 1 x Mini-DP to D-Sub cable; 3 x Carriers; 1 x 2-Section Rail kit
Package width982 mm
Package depth594 mm
Package height250 mm
Package weight20.6 kg
