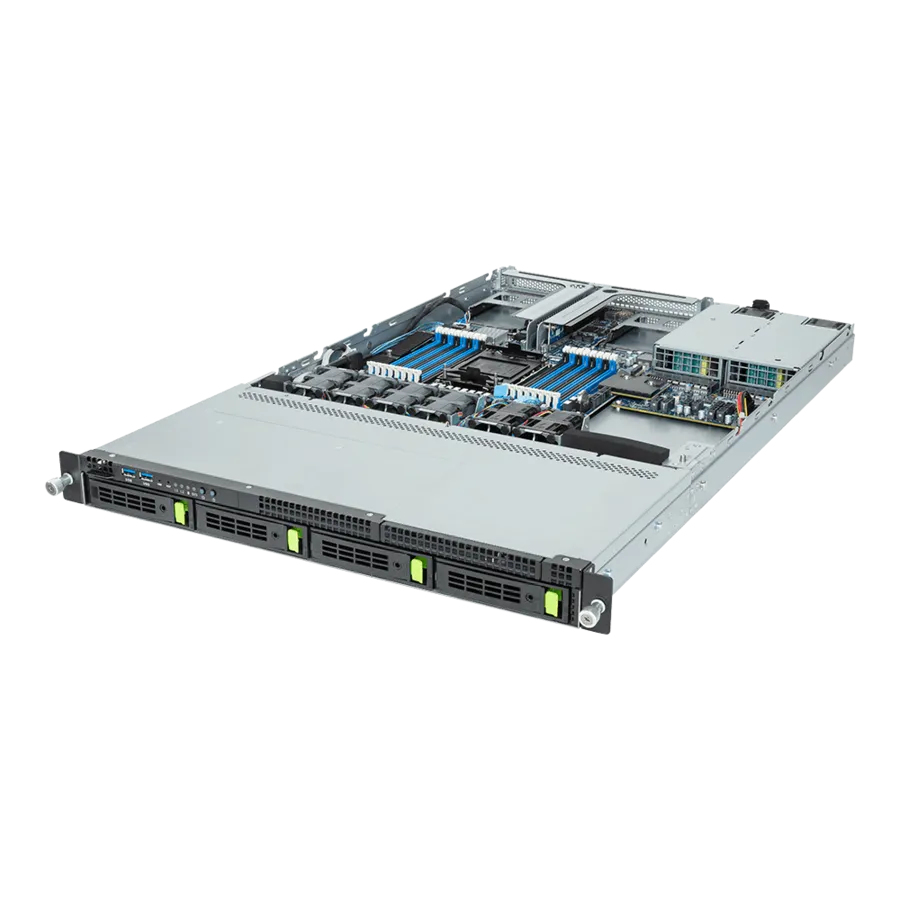

GIGABYTE R163 Intel C741 LGA 4677 (Socket E) Rack (1U)
GIGABYTE

R163 Intel C741 LGA 4677 (Socket E) Rack (1U)

Model R163Part no. 6NR163S32DR000AAB1EAN 4719331853143

48 specifications
  • ProcessorIntel
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported4
  • On-board graphics card modelAspeed AST2500
  • Ethernet LANYes
See all specifications

Overview

Processor
Intel
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
4
On-board graphics card model
Aspeed AST2500
Ethernet LAN
Yes
Brand
GIGABYTE
Model
R163
Part numbers
6NR163S32DR000AAB1, 6NR163S32DR000AAC1, 6NR163Z32DR000AAB1, 6NR163Z32DR000AAC1, 6NR163Z32DR000AAC2, 6NR163Z30DR000AAB1 +4 more
EAN / UPC
4719331853143, 4719331853266, 4719331853570, 4719331853372
Also known as
GIGABYTE R163 Intel C741 LGA 4677 (Socket E) Rack (1U)

Specifications

48 specifications in 14 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C741
Processor socketLGA 4677 (Socket E)
Processor manufacturerIntel
Processor familyIntel
Number of processors supported1

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities256GB
Supported RDIMM clock speeds4800 MHz
Memory channelsOcta-channel

Storage

Number of storage drives supported4
Hot-swap HDD baysYes
Number of 2.5" bays4
Number of 3.5" bays4
Storage drive sizes supported2.5,3.5"

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s

Ports & interfaces

Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express x16 slots1
Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Backplanes supportYes
Compatible operating systemsWindows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) or later Red Hat Enterprise Linux 8.0 ( x64) or later SUSE Linux Enterprise Server 12 SP4 ( x64) or later SUSE Linux Enterprise Server 15 SP1 ( x64) or later Ubuntu 16.04.6 LTS (x64) or later Ubu

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (1U)
LED indicatorsHDD, LAN, Power, Status
On/off switchYes
Reset buttonYes
Fan diameter8 cm
Number of fans8 fan(s)

Power

Power supply800 W
Number of main power supplies2
AC input voltage100 - 240 V
Input current10 - 4 A
DC output current (+12 V)66 A

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth730 mm
Height43.5 mm
Width438 mm

Packaging data

Packaging content1 x R162-ZA1 1 x CPU heatsink 1 x Rail kit
