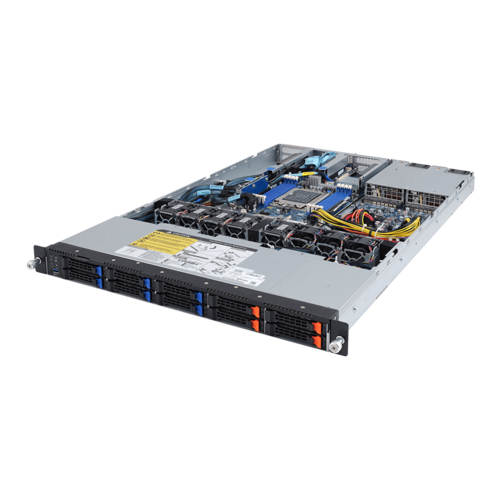

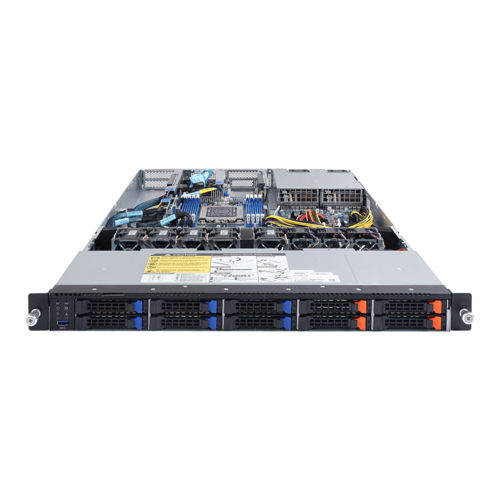

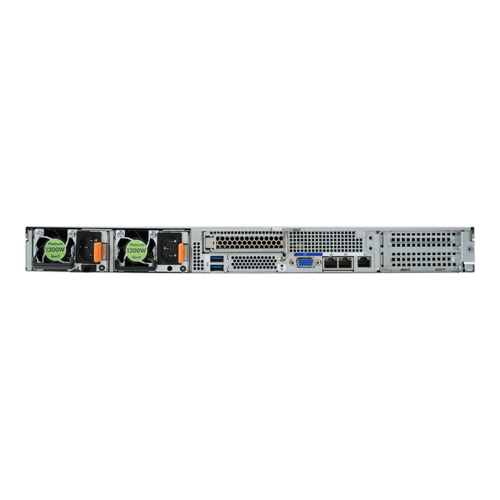

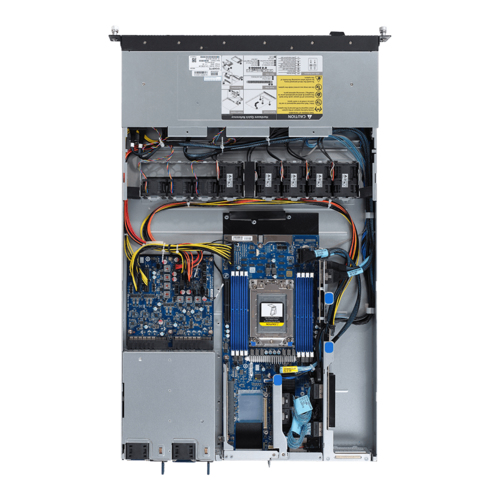

GIGABYTE R162-Z11 AMD SoC Socket SP3 Rack (1U)
GIGABYTE

R162-Z11 AMD SoC Socket SP3 Rack (1U)

Model R162-Z11Part no. 6NR162Z11MR-00EAN 4719331191405

53 specifications
  • ProcessorAMD EPYC
  • Weight11.9 kg
  • Built-in processorNo
  • Number of DIMM slots8
  • Number of storage drives supported10
  • On-board graphics card modelAspeed AST2500
See all specifications

Overview

Processor
AMD EPYC
Weight
11.9 kg
Built-in processor
No
Number of DIMM slots
8
Number of storage drives supported
10
On-board graphics card model
Aspeed AST2500
Brand
GIGABYTE
Model
R162-Z11
Part numbers
6NR162Z11MR-00, 6NR162Z11MR-00-HHKK
EAN / UPC
4719331191405
Also known as
GIGABYTE R162-Z11 AMD SoC Socket SP3 Rack (1U)

Specifications

53 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetAMD SoC
Processor socketSocket SP3
Processor manufacturerAMD
Processor familyAMD EPYC
Number of processors supported1

Memory

Number of DIMM slots8
Supported memory typesDDR4-SDRAM
Maximum RDIMM memory128 GB
Supported RDIMM clock speeds3200 MHz

Storage

Number of storage drives supported10
Hot-swap HDD baysYes
Number of 2.5" bays10
Storage drive sizes supported2.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, Serial Attached SCSI (SAS)

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express slots version4.0
PCI Express x4 slots10
PCI Express x16 (Gen 3.x) slots4
Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Backplanes supportYes
Compatible operating systemsWindows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) or later Red Hat Enterprise Linux 8.0 ( x64) or later SUSE Linux Enterprise Server 12 SP4 ( x64) or later SUSE Linux Enterprise Server 15 SP1 ( x64) or later Ubuntu 16.04.6 LTS (x64) or later Ubu

Design

Chassis typeRack (1U)
LED indicatorsHDD, LAN, Power, Status
On/off switchYes
Reset buttonYes

Power

Power supply1200 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
AC input voltage100 - 240 V
Input current12 A
DC output current (+12 V)80.5 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth43.5 mm
Height730 mm
Weight11.9 kg
Width438 mm

Packaging data

Packaging content1 x R162-Z11 1 x CPU heatsink 1 x Rail kit
Package width985 mm
Package depth588 mm
Package height250 mm
