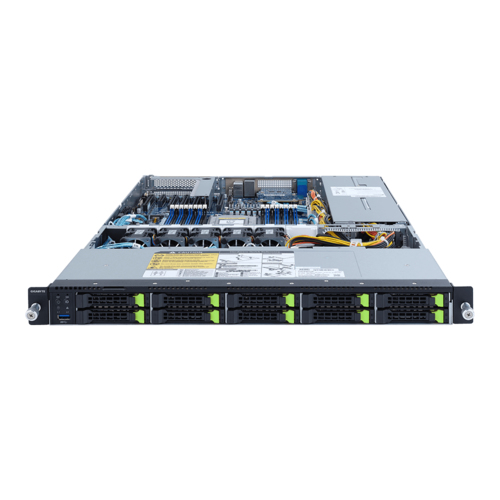

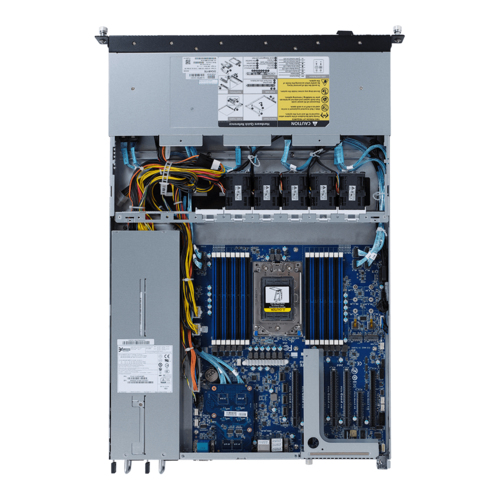

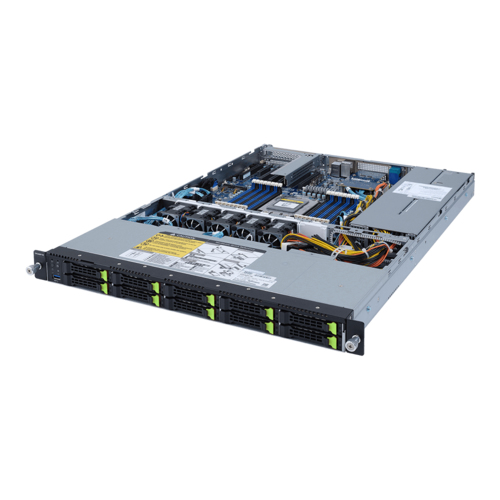

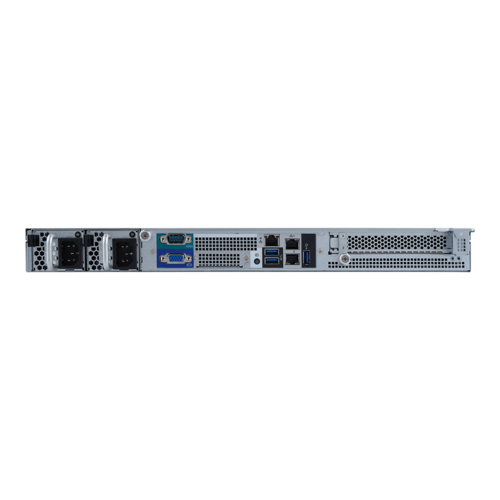

GIGABYTE R152-Z33 Socket SP3 Rack (1U)
GIGABYTE

R152-Z33 Socket SP3 Rack (1U)

Model R152-Z33Part no. 6NR152Z33MR-00EAN 4719331600082

49 specifications
  • ProcessorAMD
  • Weight11.7 kg
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported12
  • On-board graphics card modelAspeed AST2500
See all specifications

Overview

Processor
AMD
Weight
11.7 kg
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
12
On-board graphics card model
Aspeed AST2500
Brand
GIGABYTE
Model
R152-Z33
Part number
6NR152Z33MR-00
EAN / UPC
4719331600082
Also known as
GIGABYTE R152-Z33 Socket SP3 Rack (1U)

Specifications

49 specifications in 14 groups

Processor

Built-in processorNo
Processor socketSocket SP3
Processor manufacturerAMD
Processor familyAMD
Number of processors supported1

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities8GB, 16GB, 32GB, 64GB, 128GB
Supported RDIMM clock speeds2933,3200 MHz
Memory channelsOcta-channel

Storage

Number of storage drives supported12
Hot-swap HDD baysYes
Number of 2.5" bays10
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s

Ports & interfaces

Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1
COM ports quantity1

Expansion slots

PCI Express slots version4.0
PCI Express x16 slots2
Number of M.2 (M) slots2

Features

Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Compatible operating systemsWindows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 18.04.5 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.7

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (1U)
LED indicatorsHDD, LAN, Status
Fan diameter4 cm
Number of fans5 fan(s)

Power

Power supply1100 W
AC input voltage240 V

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth43.5 mm
Height660 mm
Weight11.7 kg
Width438 mm

Packaging data

Packaging content1 x R152-Z33 1 x CPU heatsink 1 x Rail kit
Package width985 mm
Package depth588 mm
Package height250 mm
Package weight20.3 kg
