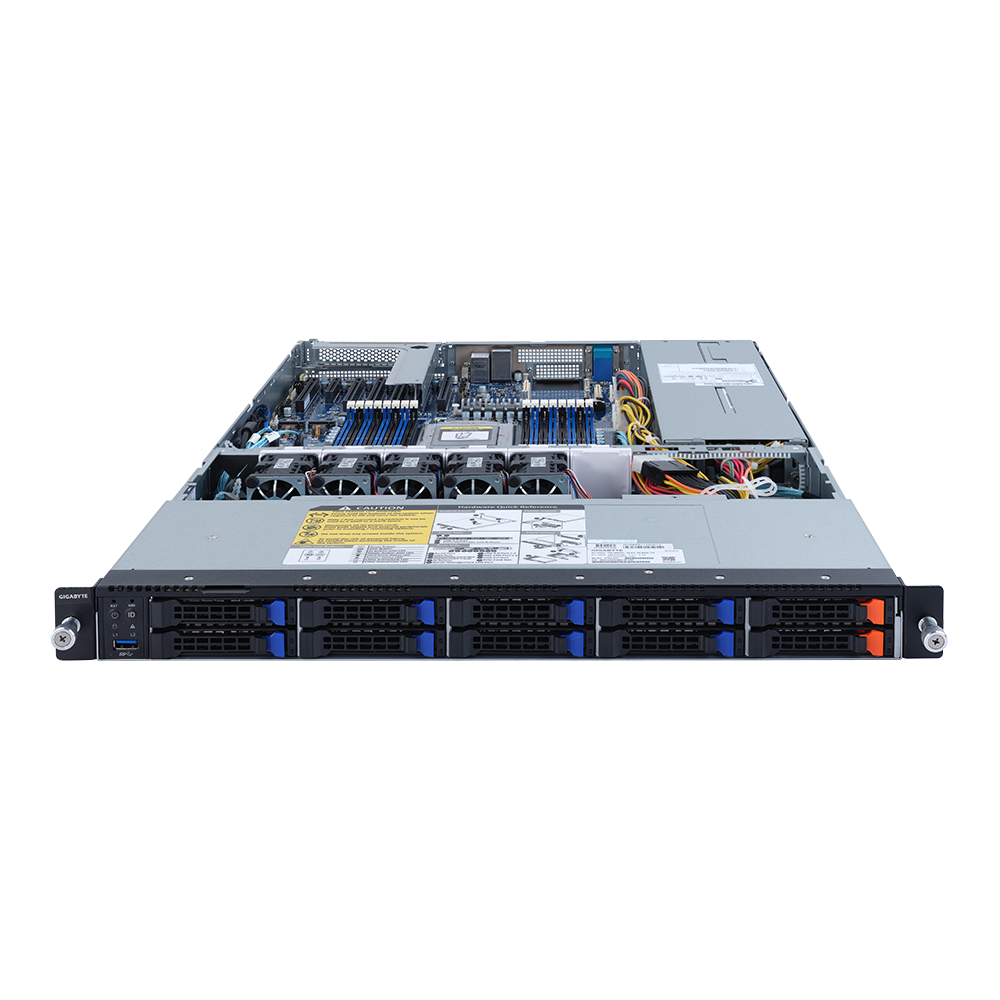

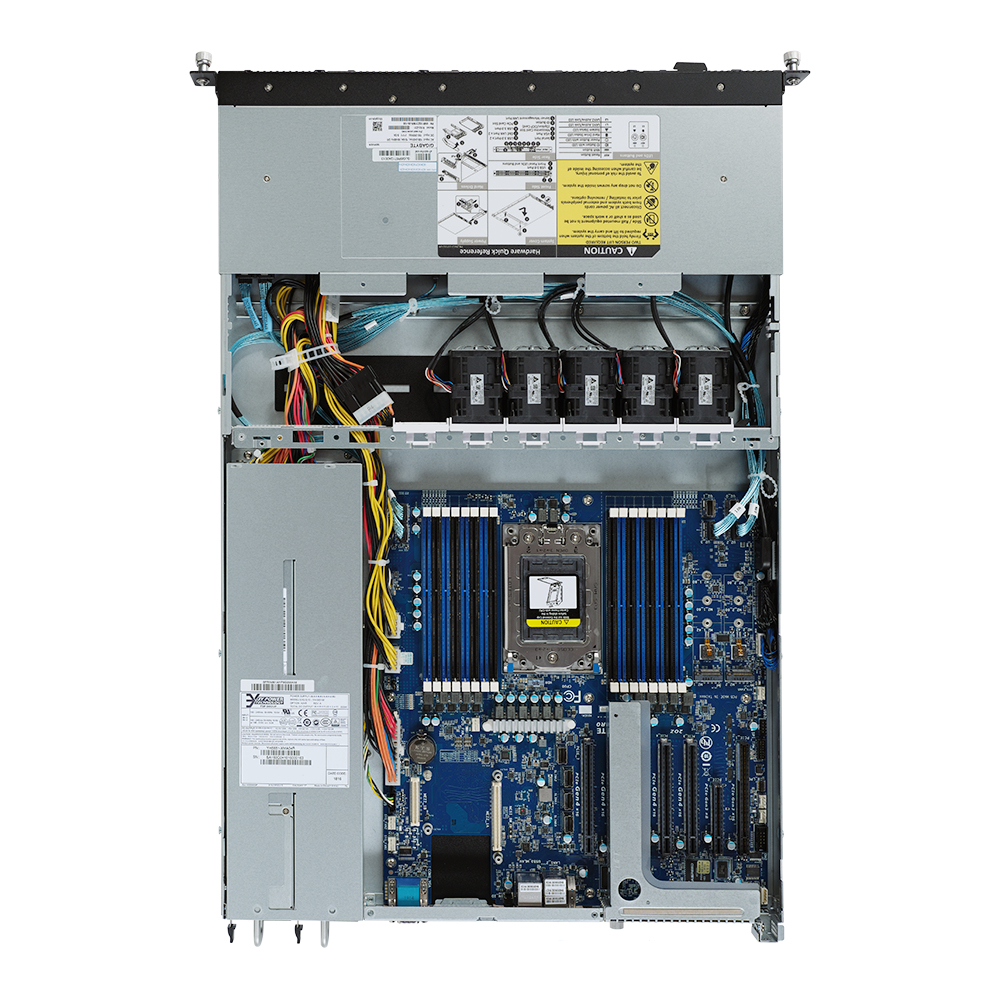

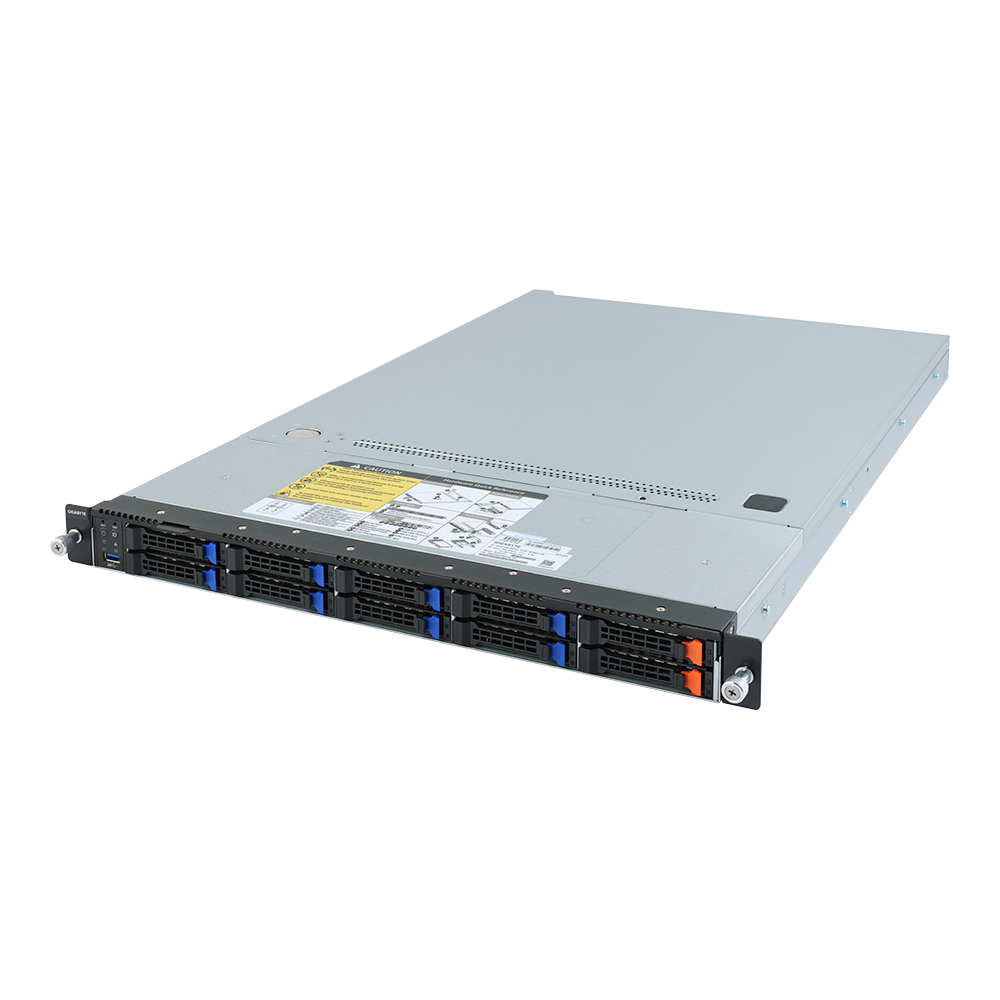

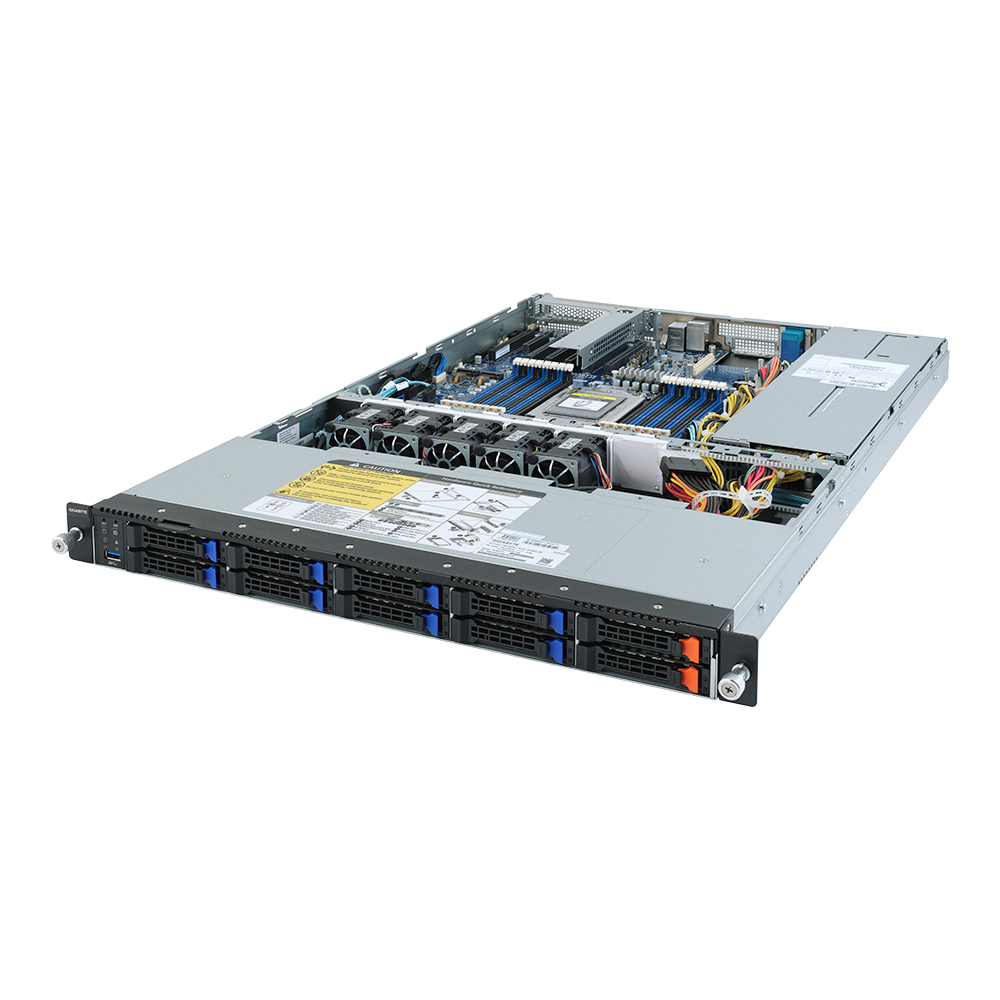

GIGABYTE R152-Z31 Rack (1U) Black
GIGABYTE

R152-Z31 Rack (1U) Black

Model R152-Z31Part no. 6NR152Z31MR-00EAN 4719331191030

44 specifications
  • Weight11.8 kg
  • ColourBlack
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported10
  • On-board graphics card modelAspeed AST2500
See all specifications

Overview

Weight
11.8 kg
Colour
Black
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
10
On-board graphics card model
Aspeed AST2500
Brand
GIGABYTE
Model
R152-Z31
Part numbers
6NR152Z31MR-00, R152-Z31
EAN / UPC
4719331191030, 5054444283210, 889523019481
Also known as
GIGABYTE R152-Z31 Rack (1U) Black

Specifications

44 specifications in 13 groups

Processor

Built-in processorNo
Number of processors supported1

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Supported RDIMM clock speeds2933,3200 MHz
Memory channelsOcta-channel

Storage

Number of storage drives supported10
Hot-swap HDD baysYes
Number of 2.5" bays10
Storage drive sizes supported2.5"

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1
COM ports quantity1

Features

Backplanes supportYes

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (1U)
Product colourBlack
LED indicatorsYes
On/off switchYes
Reset buttonYes
Fan diameter4 cm
Number of fans5 fan(s)

Power

Power supply650 W
Number of redundant power supplies installed2
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth660 mm
Height43.5 mm
Weight11.8 kg
Width438 mm

Packaging data

Package width985 mm
Package depth588 mm
Package height250 mm
Package weight20.3 kg
