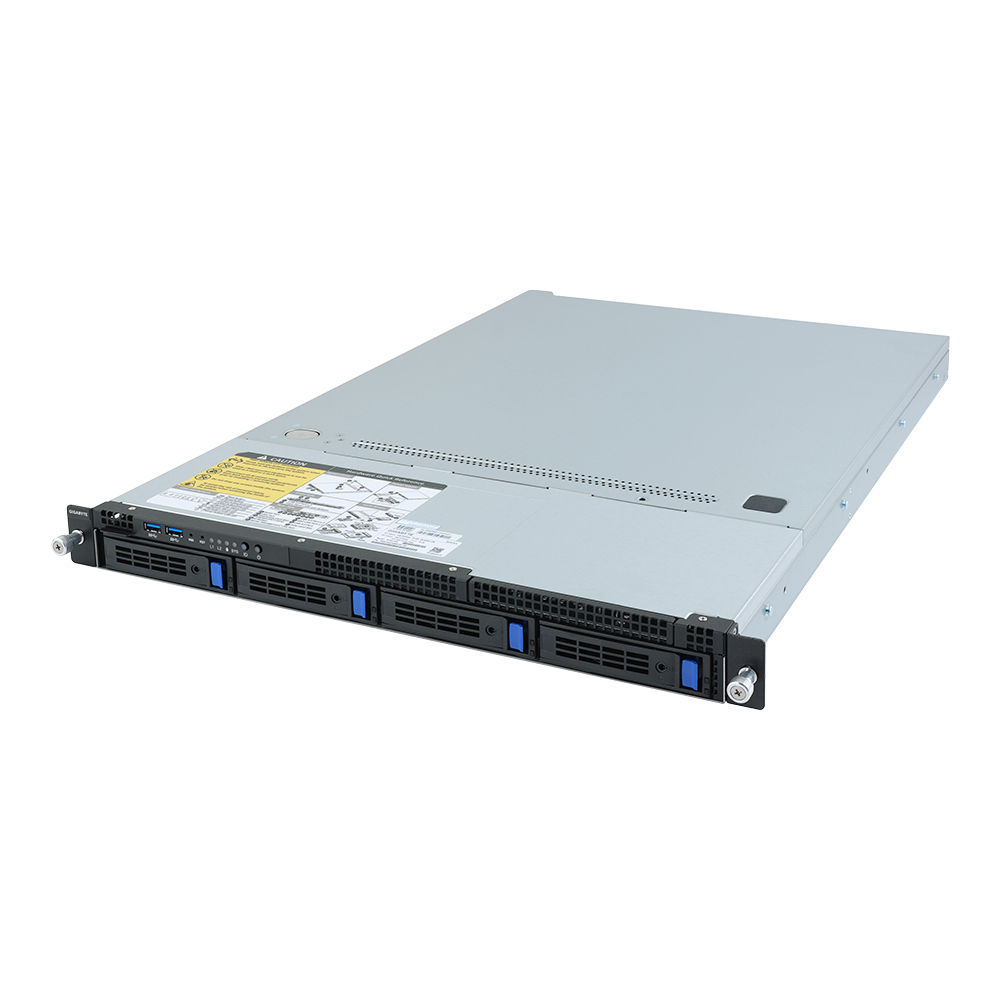

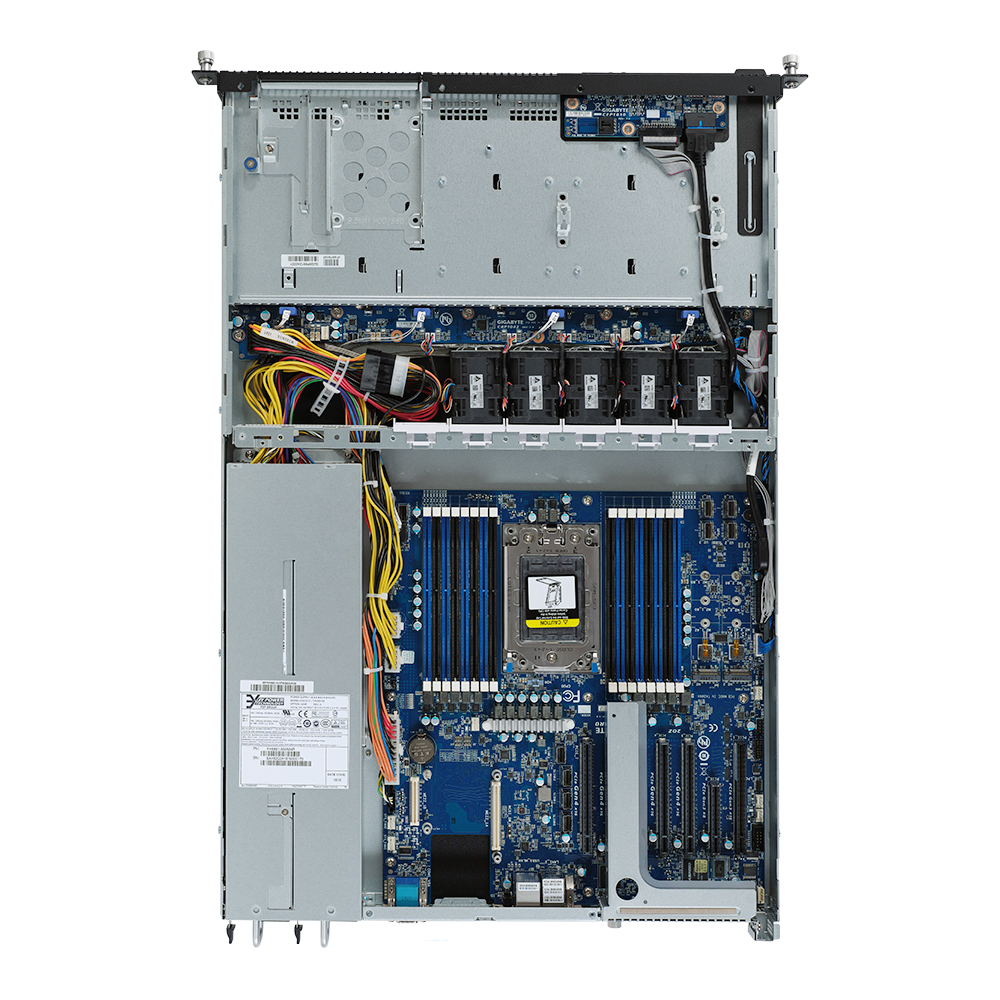

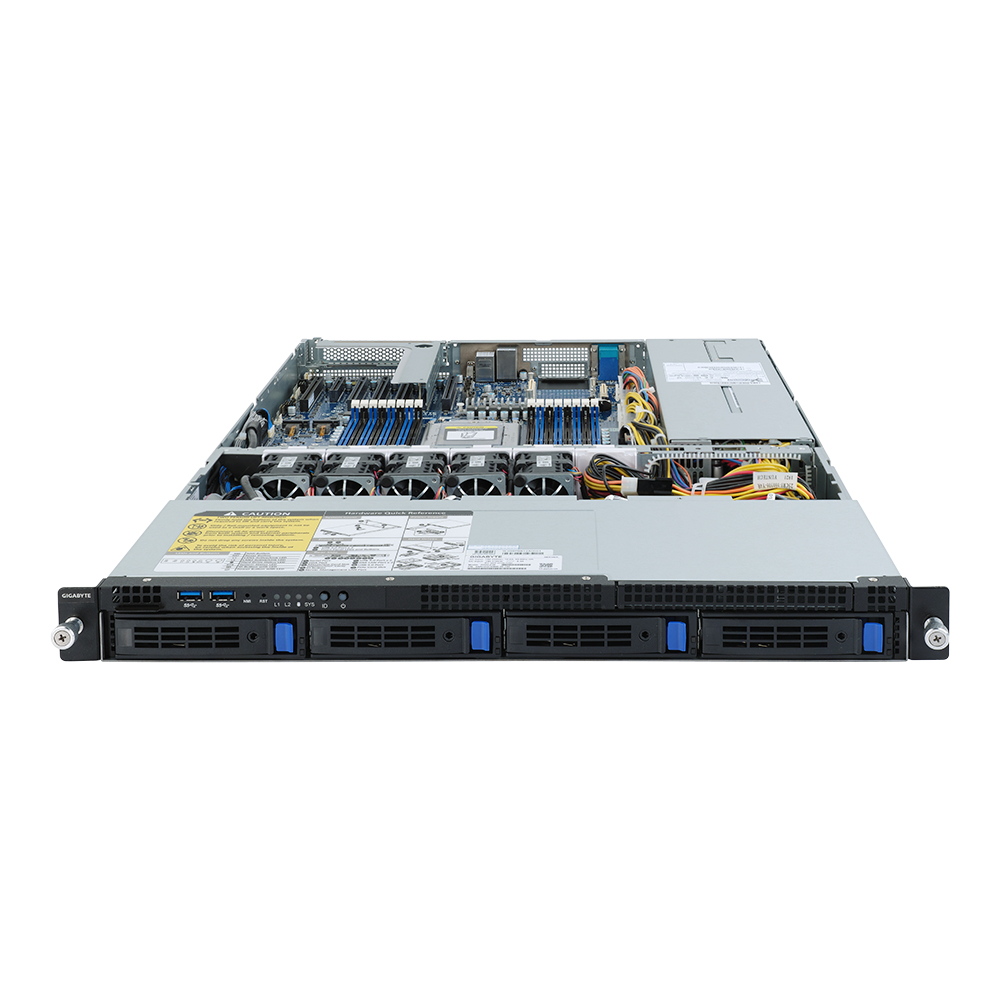

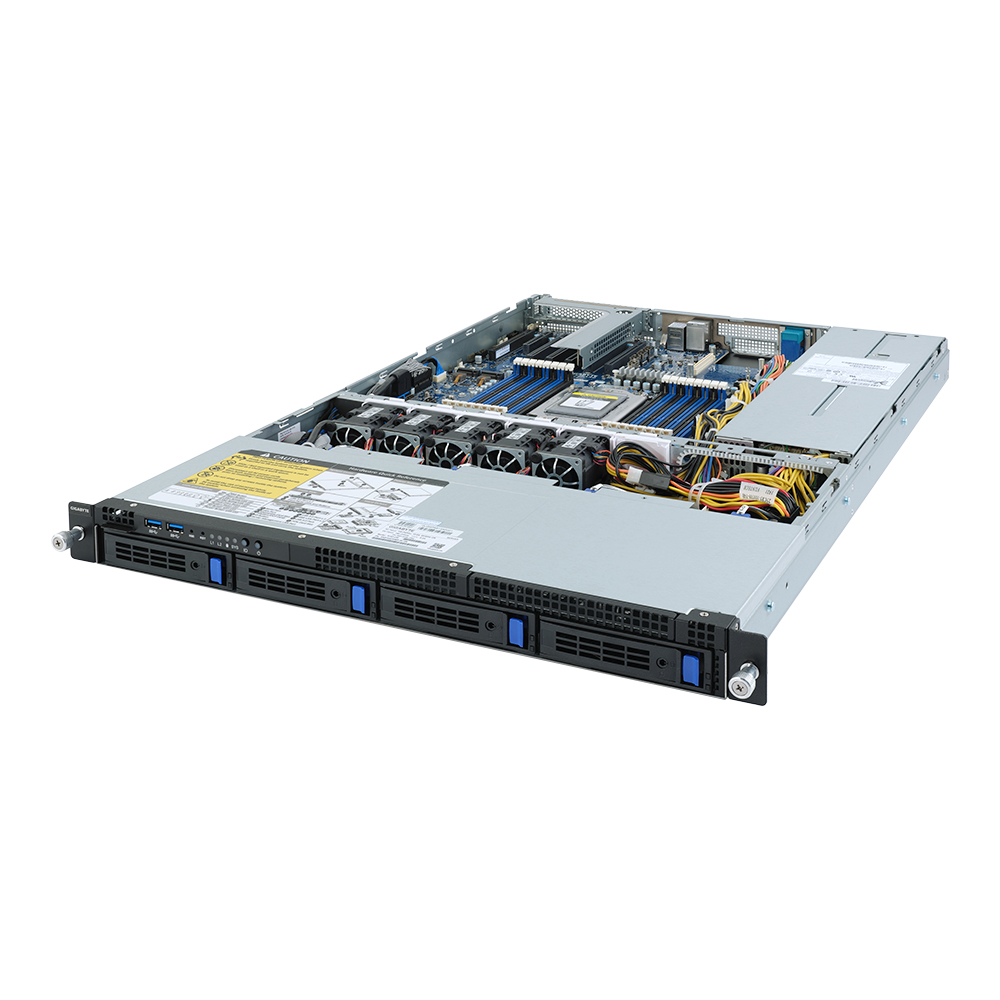

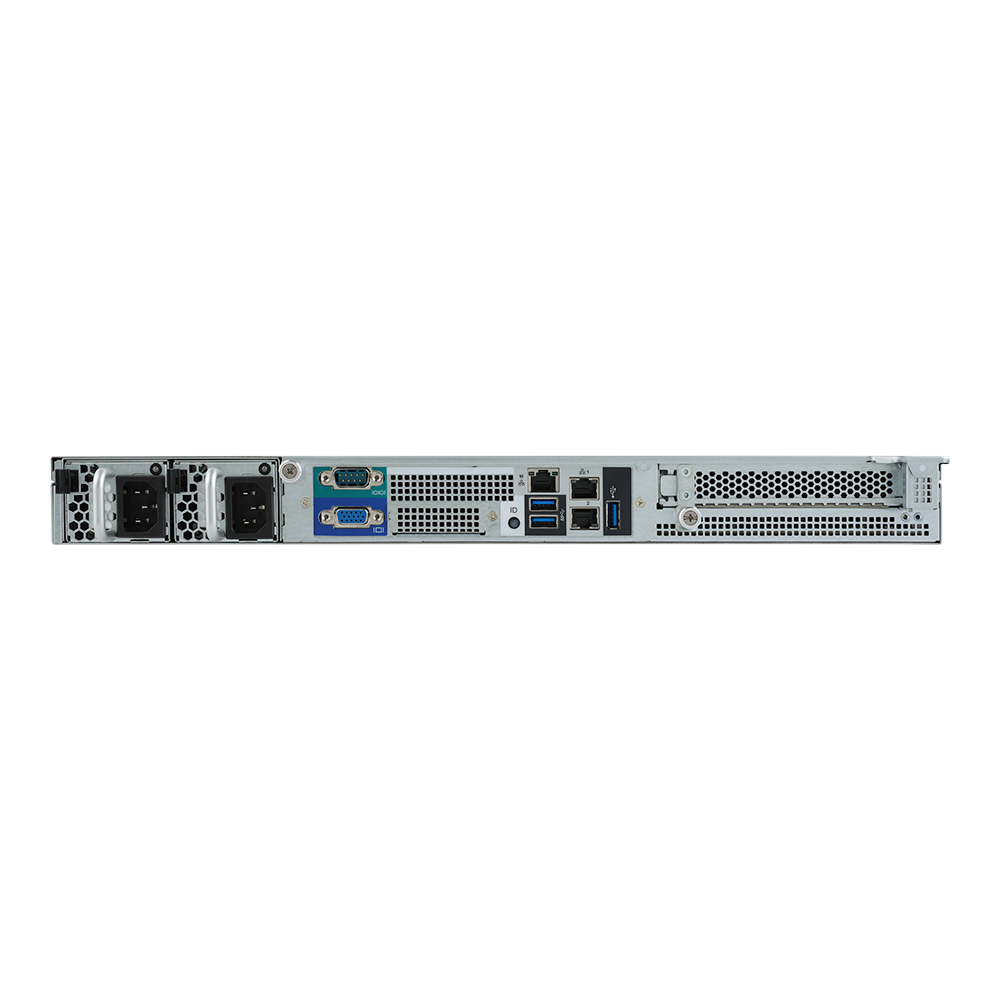

GIGABYTE R152-Z30 Rack (1U) Black
GIGABYTE

R152-Z30 Rack (1U) Black

Model R152-Z30Part no. 6NR152Z30MR-00EAN 4719331191023

51 specifications
  • Weight11.8 kg
  • ColourBlack
  • Built-in processorNo
  • Number of DIMM slots16
  • Hot-swap HDD baysYes
  • On-board graphics card modelAspeed AST2500
See all specifications

Overview

Weight
11.8 kg
Colour
Black
Built-in processor
No
Number of DIMM slots
16
Hot-swap HDD bays
Yes
On-board graphics card model
Aspeed AST2500
Brand
GIGABYTE
Model
R152-Z30
Part numbers
6NR152Z30MR-00, R152-Z30
EAN / UPC
4719331191023, 5054444423494, 889523019313
Also known as
GIGABYTE R152-Z30 Rack (1U) Black

Specifications

51 specifications in 14 groups

Processor

Built-in processorNo
Number of processors supported1

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Supported RDIMM clock speeds2933,3200 MHz
Memory channelsOcta-channel

Storage

Hot-swap HDD baysYes
Number of 3.5" bays4
Storage drive sizes supported2.5,3.5"

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1
COM ports quantity1

Expansion slots

PCI Express x16 slots1
Number of M.2 (M) slots2

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (1U)
Product colourBlack
LED indicatorsYes
On/off switchYes
Reset buttonYes
Fan diameter4 cm
Number of fans5 fan(s)

Power

Power supply650 W
Redundant power supply (RPS) supportYes
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current10 - 5 A
DC output current (+5 V)4 A
DC output current (+12 V)52.9 A

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth660 mm
Height43.5 mm
Weight11.8 kg
Width438 mm

Packaging data

Package width985 mm
Package depth588 mm
Package height250 mm
Package weight20 kg
