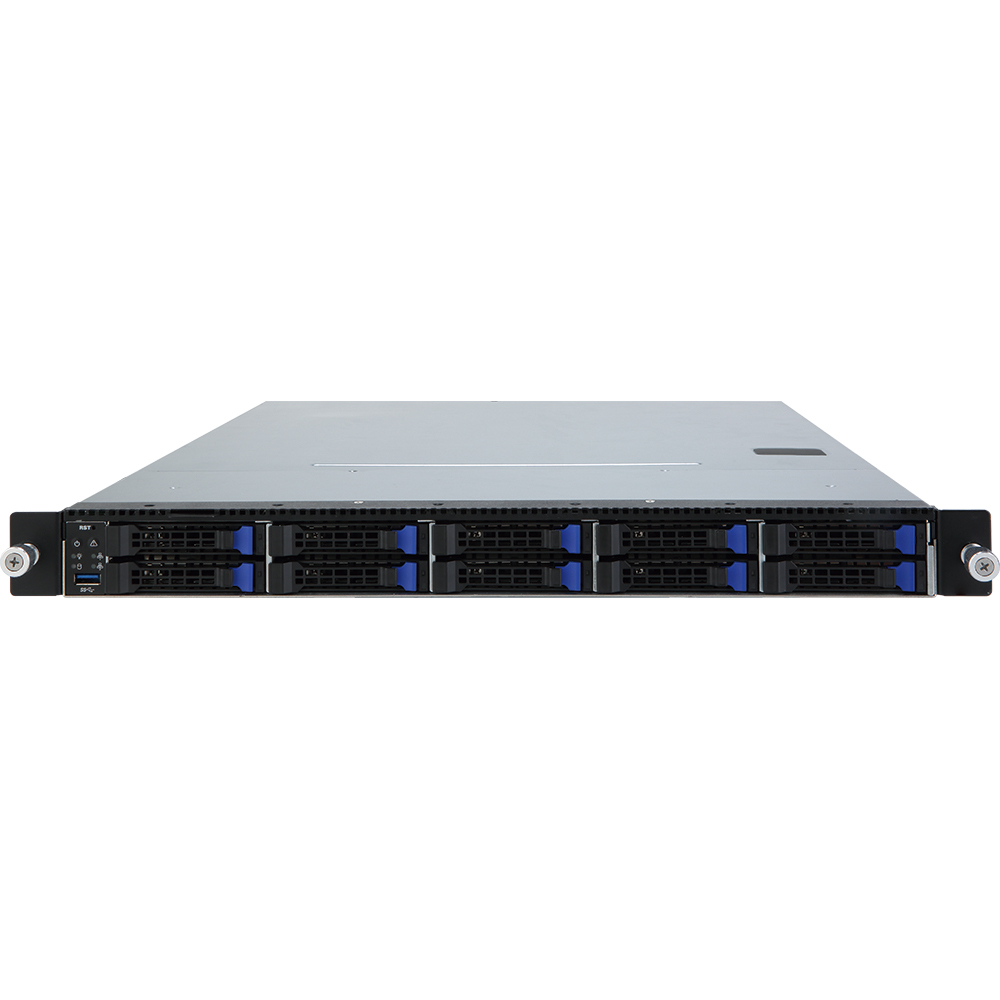

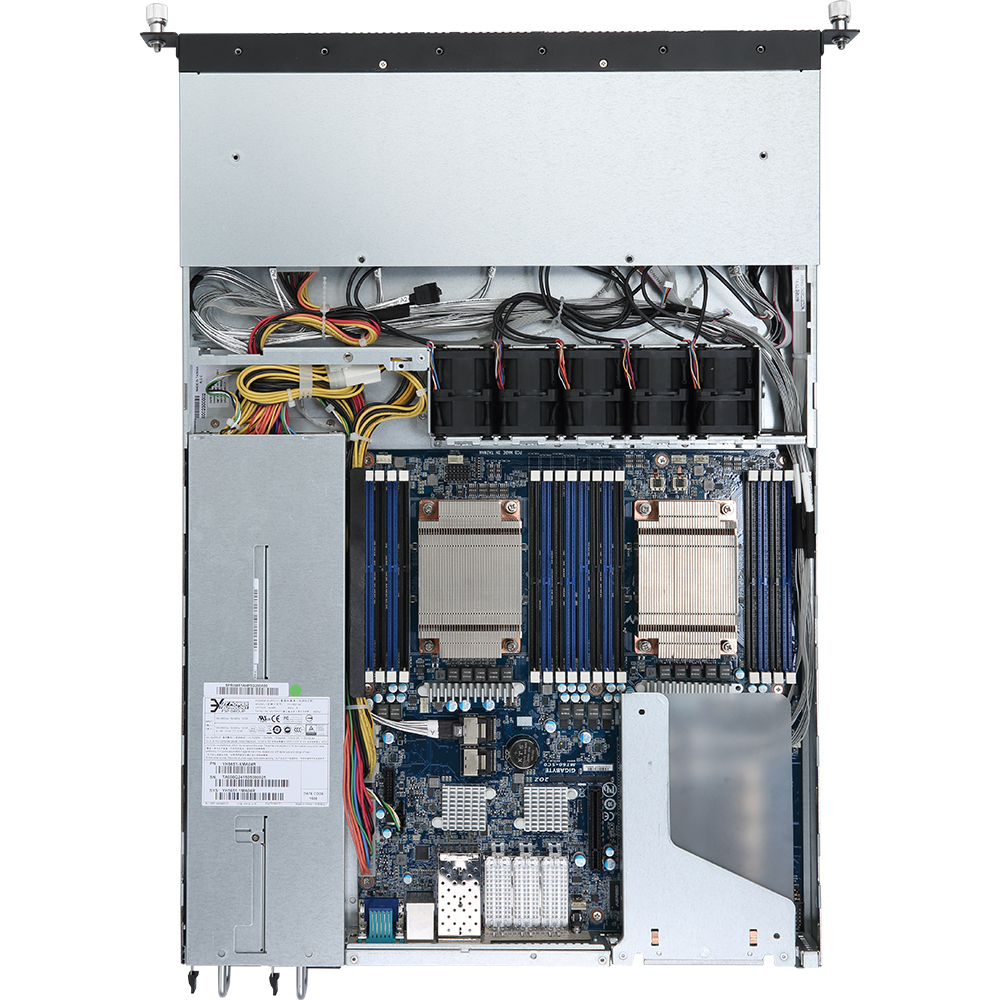

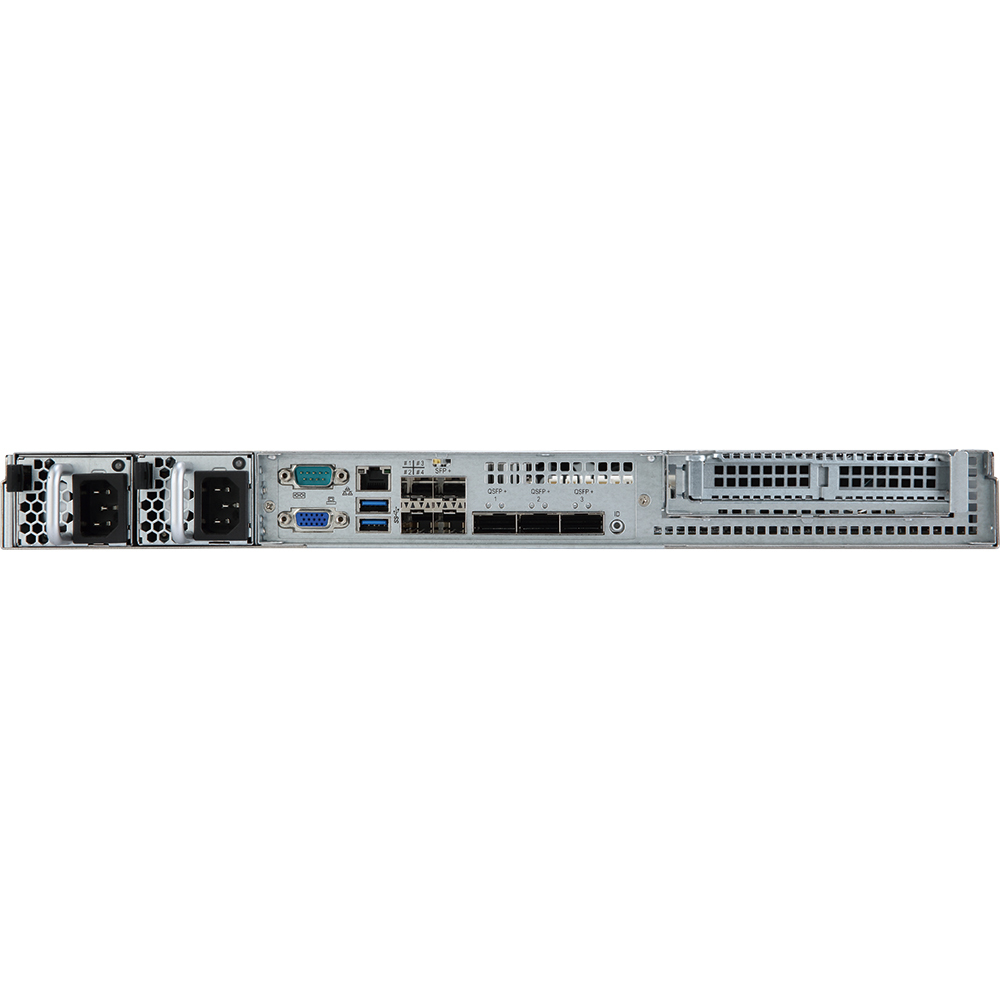

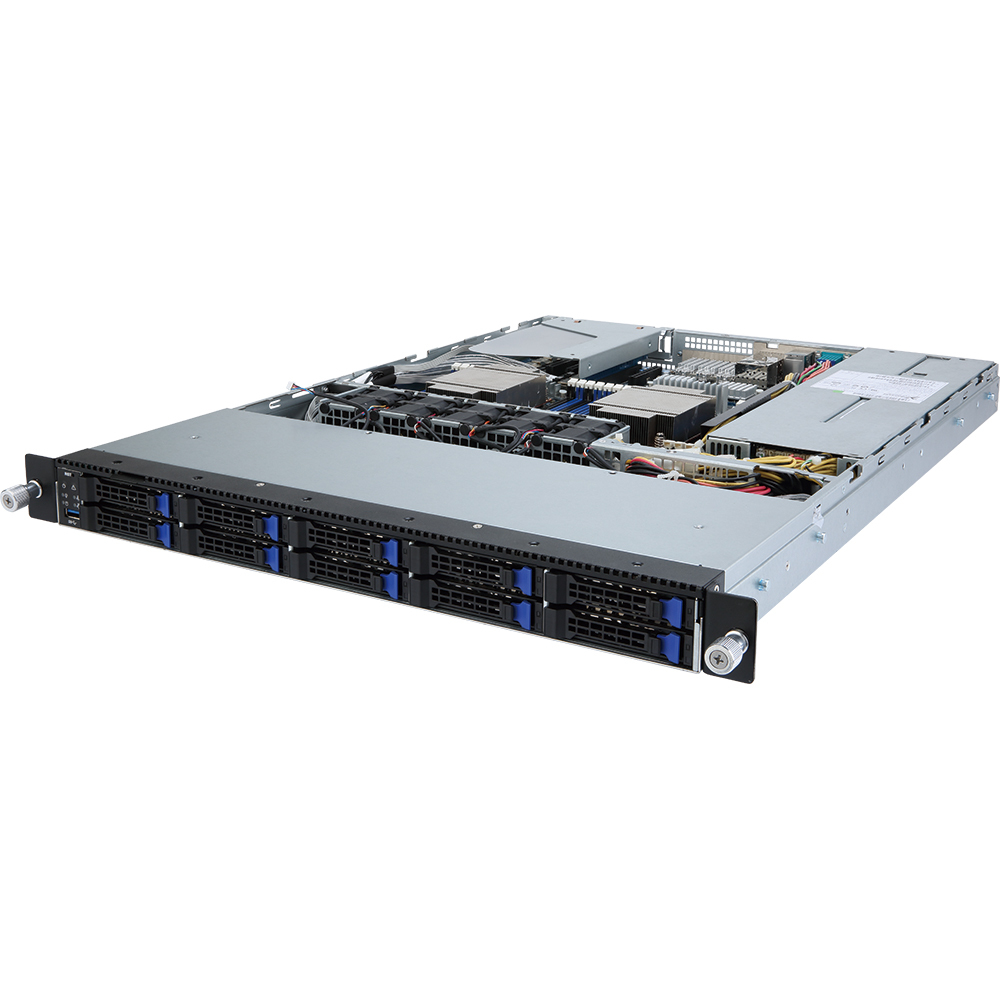

GIGABYTE R150-T60 BGA 2601 Rack (1U) Black, Grey
GIGABYTE

R150-T60 BGA 2601 Rack (1U) Black, Grey

Model R150-T60Part no. 6NR150T60MR-00

53 specifications
  • Weight13 kg
  • ColourBlack, Grey
  • Built-in processorYes
  • Number of DIMM slots16
  • Number of storage drives supported10
  • On-board graphics card modelAspeed AST2400
See all specifications

Overview

Weight
13 kg
Colour
Black, Grey
Built-in processor
Yes
Number of DIMM slots
16
Number of storage drives supported
10
On-board graphics card model
Aspeed AST2400
Brand
GIGABYTE
Model
R150-T60
Part number
6NR150T60MR-00
Also known as
GIGABYTE R150-T60 BGA 2601 Rack (1U) Black, Grey

Specifications

53 specifications in 13 groups

Processor

Built-in processorYes
Processor socketBGA 2601
Processor frequency2 GHz
Number of processors supported2

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Maximum RDIMM memory512 GB
Supported RDIMM clock speeds1866,2133 MHz
Memory channelsQuad-channel
ECCYes

Storage

Number of storage drives supported10
Hot-swap HDD baysYes
Number of 2.5" bays10
Storage drive sizes supported2.5"
Supported storage drive typesHDD

Graphics

On-board graphics card modelAspeed AST2400

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity1
COM ports quantity1
SFP+ module slots quantity4

Expansion slots

PCI Express x16 (Gen 3.x) slots1

Features

Backplanes supportYes
Compatible operating systemsUbuntu 16.04.1 x64, SLES12 SP2, openSUSE Tumbleweed, openSUSE Leap 42.1+, RHEL 7.3 x64, CentOS 7.3 x64

Design

Chassis typeRack (1U)
Product colourBlack, Grey
LED indicatorsHDD, LAN, Power, Status
On/off switchYes
Reset buttonYes
Fan diameter4 cm
Number of fans5 fan(s)

Power

Power supply650 W
Redundant power supply (RPS) supportYes
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current10/5 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth625 mm
Height43.5 mm
Weight13 kg
Width430 mm

Packaging data

Packaging contentR150-T60 system Quick Installation Guide Rail kit
Package width959 mm
Package depth588 mm
Package height248 mm
