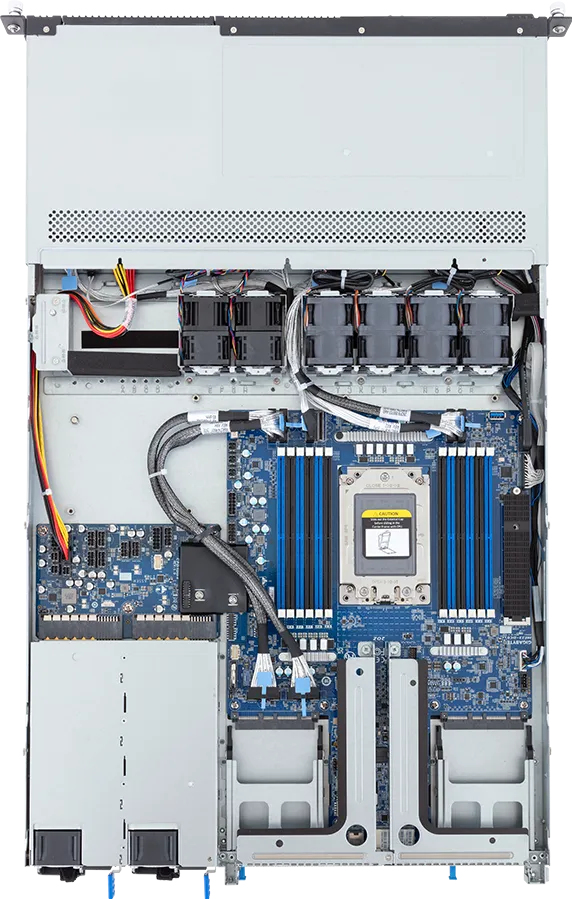

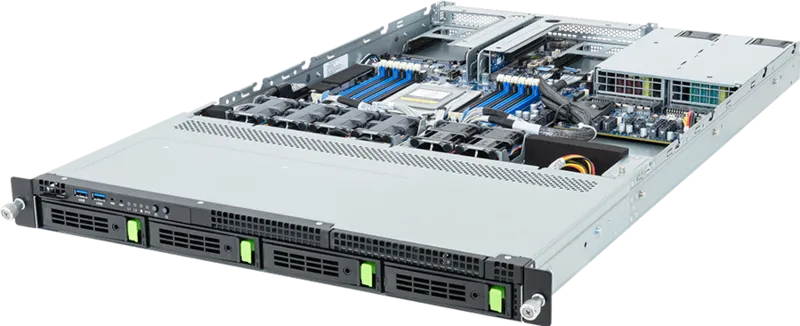

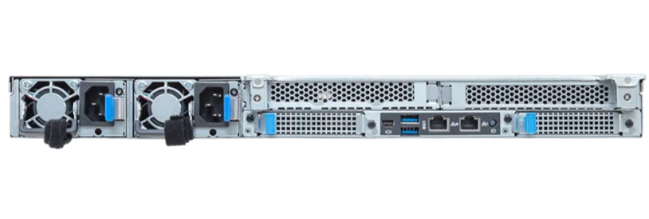

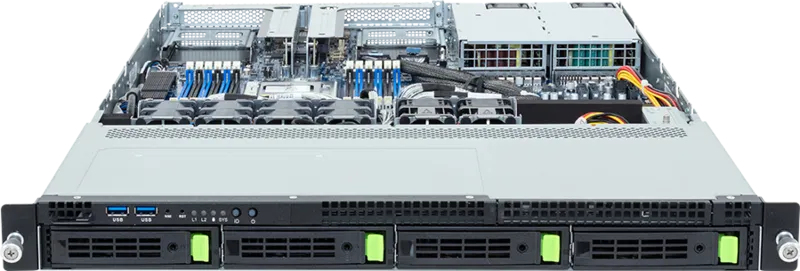

GIGABYTE R143-E30-AAB1 AMD SoC Socket SP6 Rack (1U) Black, Steel
GIGABYTE

R143-E30-AAB1 AMD SoC Socket SP6 Rack (1U) Black, Steel

Model R143-E30-AAB1Part no. 6NR143E30DR000AAB1

60 specifications
  • Weight21.2 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots12
  • Number of storage drives supported5
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
21.2 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
12
Number of storage drives supported
5
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
R143-E30-AAB1
Part number
6NR143E30DR000AAB1
Also known as
GIGABYTE R143-E30-AAB1 AMD SoC Socket SP6 Rack (1U) Black, Steel

Specifications

60 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetAMD SoC
Processor socketSocket SP6
Number of processors supported1
Compatible processor seriesAMD EPYC 8004, AMD EPYC 8005 Series

Memory

Number of DIMM slots12
Supported memory typesDDR5-SDRAM
Memory channelsHexa-channel

Storage

Number of storage drives supported5
Hot-swap HDD baysYes
Number of 2.5" bays4
Storage drive sizes supported2.5,M.2,3.5
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, PCI Express 3.0, Serial Attached SCSI (SAS)-4
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I210-AT

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
Mini DisplayPorts quantity1

Expansion slots

PCI Express x16 (Gen 5.x) slots2
Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (1U)
Product colourBlack, Steel
LED indicatorsLAN, HDD, SSD, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter4 cm
Heat sink includedYes
Number of fans6 fan(s)

Power

Power supply800 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current4 - 10 A
DC output current (+12 V)66 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth710 mm
Height43.5 mm
Weight21.2 kg
Width438 mm

Packaging data

Packaging content1 x R143-E30-AAB1; 1 x CPU heatsink; 1 x Mini-DP to D-Sub cable; 1 x 2-Section Rail kit
Package width982 mm
Package depth594 mm
Package height250 mm
Package weight23.3 kg
