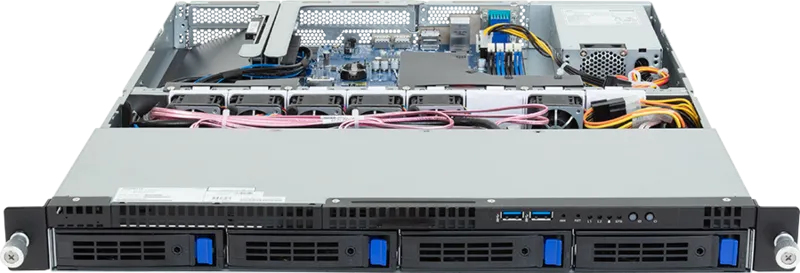

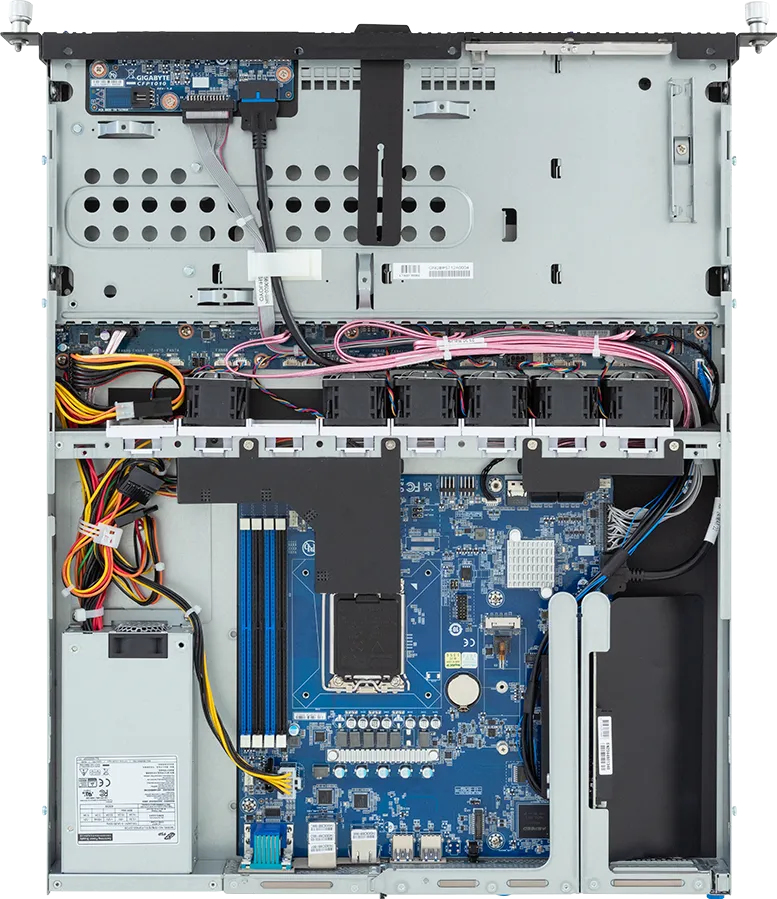

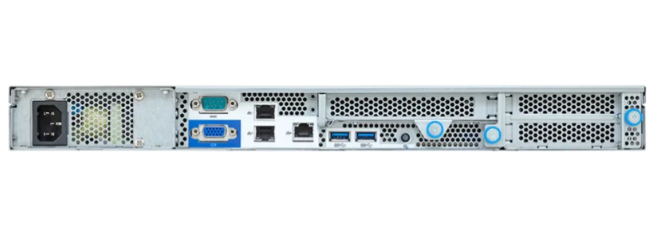

R123-X00-AA01 Intel C262 LGA 1700 Rack (1U) Black, Steel
Model R123-X00-AA01Part no. 6NR123X00DR000AA01EAN 4719331855864
63 specifications
- Weight7.87 kg
- ColourBlack, Steel
- Built-in processorNo
- Number of DIMM slots4
- Number of storage drives supported5
- On-board graphics card modelAspeed AST2600
Overview
- Weight
- 7.87 kg
- Colour
- Black, Steel
- Built-in processor
- No
- Number of DIMM slots
- 4
- Number of storage drives supported
- 5
- On-board graphics card model
- Aspeed AST2600
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- R123-X00-AA01
- Part number
- 6NR123X00DR000AA01
- EAN / UPC
- 4719331855864
- Also known as
- GIGABYTE R123-X00-AA01 Intel C262 LGA 1700 Rack (1U) Black, Steel
Specifications
63 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel C262 |
| Processor socket | LGA 1700 |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Xeon® |
| Intel Xeon series | E-2400 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 5 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 4 |
| Storage drive sizes supported | 2.5,M.2,3.5 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA, PCI Express 4.0 |
| RAID levels | 0, 1, 10 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I210-AT |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
Features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Backplanes support | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Steel |
| LED indicators | LAN, HDD, SSD, Status |
| On/off switch | Yes |
| Reset button | Yes |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Heat sink included | Yes |
| Number of fans | 6 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 400 W |
| Number of main power supplies | 1 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 3 - 6 A |
| DC output current (+5 V) | 16 A |
| DC output current (+12 V) | 33 A |
| 80 PLUS certification | 80 PLUS Gold |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 30 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 536 mm |
| Height | 43.5 mm |
| Weight | 7.87 kg |
| Width | 430 mm |
Packaging data
| Specification | Value |
|---|---|
| Packaging content | 1 x R123-X00-AA01; 1 x CPU heatsink; 1 x 2-Section Rail kit |
| Package width | 806 mm |
| Package depth | 594 mm |
| Package height | 241 mm |
| Package weight | 12.9 kg |
