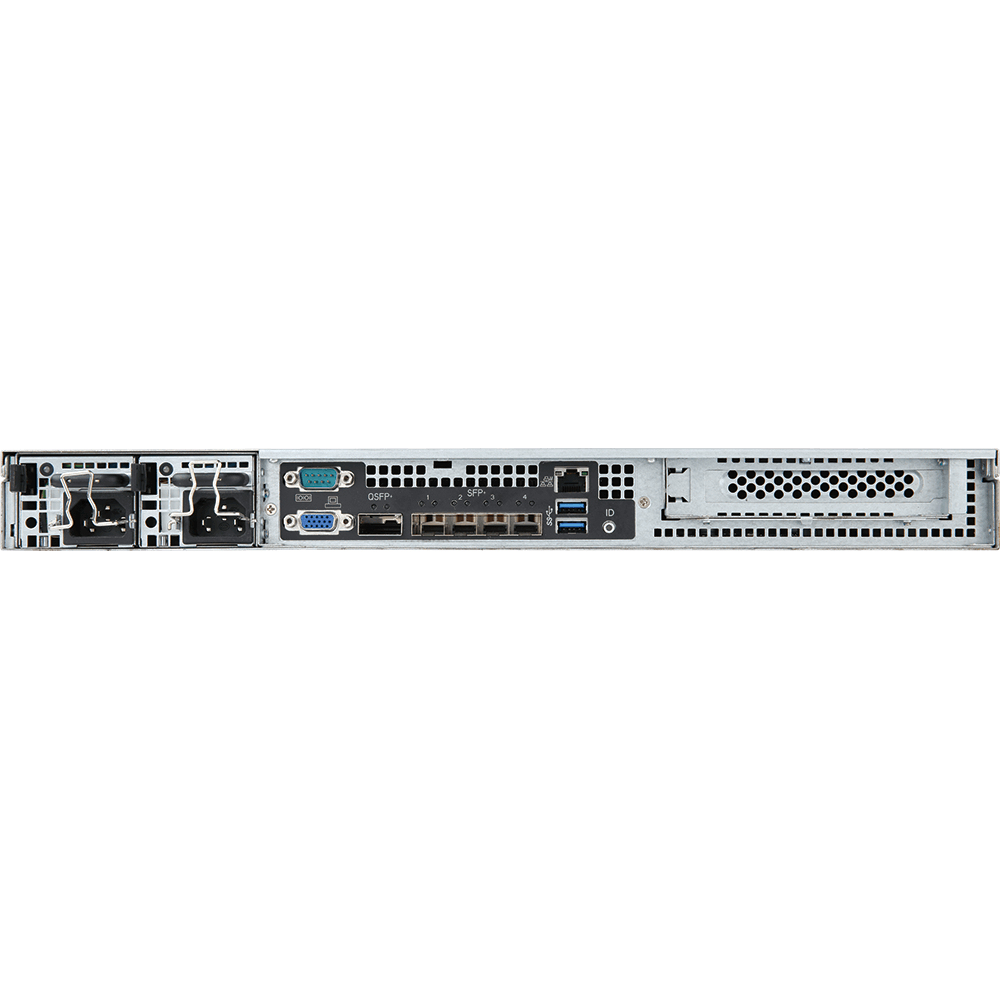

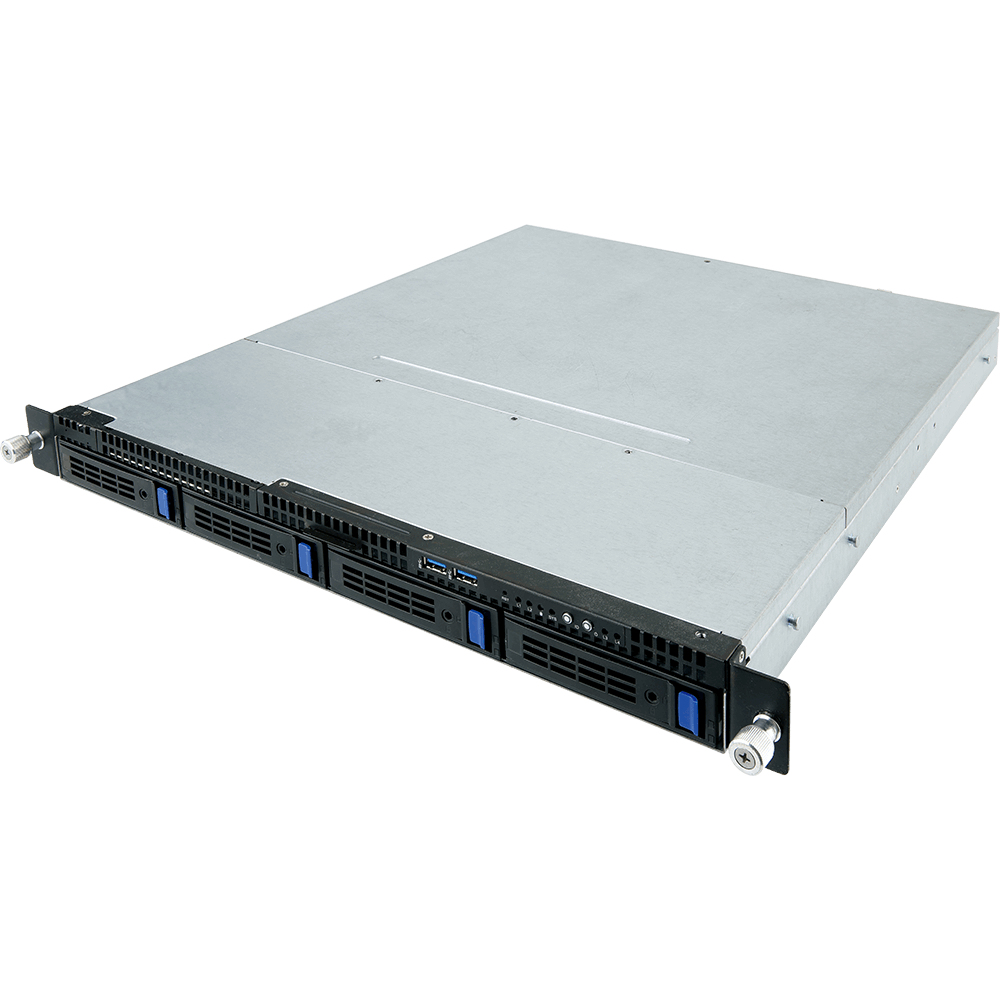

R120-T35 BGA 2601 Rack (1U) Black, Grey
Model R120-T35Part no. 6NR120T35MR-00
51 specifications
- Weight8.6 kg
- ColourBlack, Grey
- Built-in processorYes
- Number of DIMM slots8
- Number of storage drives supported4
- On-board graphics card modelAspeed AST2400
Overview
- Weight
- 8.6 kg
- Colour
- Black, Grey
- Built-in processor
- Yes
- Number of DIMM slots
- 8
- Number of storage drives supported
- 4
- On-board graphics card model
- Aspeed AST2400
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- R120-T35
- Part number
- 6NR120T35MR-00
- Also known as
- GIGABYTE R120-T35 BGA 2601 Rack (1U) Black, Grey
Specifications
51 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor socket | BGA 2601 |
| Processor frequency | 1.8 GHz |
| Number of processors supported | 1 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 8 |
| Supported memory types | DDR4-SDRAM |
| Maximum RDIMM memory | 256 GB |
| Supported RDIMM clock speeds | 1866,2133 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 4 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5,3.5" |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2400 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
| SFP+ module slots quantity | 4 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
Features
| Specification | Value |
|---|---|
| Backplanes support | Yes |
| Compatible operating systems | Ubuntu 16.04.1 x64, SLES12 SP2, openSUSE Tumbleweed, openSUSE Leap 42.1+, RHEL 7.3 x64, CentOS 7.3 x64 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Grey |
| LED indicators | HDD, LAN, Power, Status |
| On/off switch | Yes |
| Reset button | Yes |
| Fan diameter | 4 cm |
| Number of fans | 5 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 350 W |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies installed | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5 - 3 A |
| 80 PLUS certification | 80 PLUS Silver |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 533.4 mm |
| Height | 43.5 mm |
| Weight | 8.6 kg |
| Width | 430 mm |
Packaging data
| Specification | Value |
|---|---|
| Packaging content | R120-T35 system Quick Installation Guide Rail kit |
| Package width | 815 mm |
| Package depth | 588 mm |
| Package height | 250 mm |
