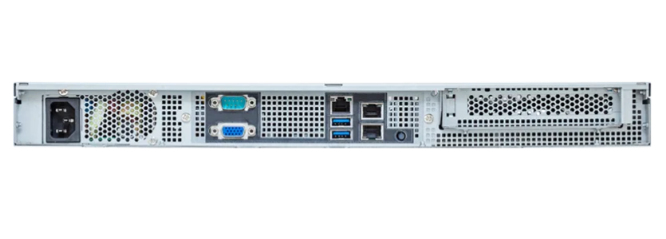

GIGABYTE R113-C10-AA01 AMD B650E Socket AM5 Rack (1U) Black, Steel
GIGABYTE

R113-C10-AA01 AMD B650E Socket AM5 Rack (1U) Black, Steel

Model R113-C10-AA01Part no. 6NR113C10MR000AA01EAN 4719331858667

63 specifications
  • Weight6.24 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots4
  • Number of storage drives supported5
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
6.24 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
4
Number of storage drives supported
5
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
R113-C10-AA01
Part number
6NR113C10MR000AA01
EAN / UPC
4719331858667
Also known as
GIGABYTE R113-C10-AA01 AMD B650E Socket AM5 Rack (1U) Black, Steel

Specifications

63 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetAMD B650E
Processor socketSocket AM5
Number of processors supported1
Compatible processor seriesAMD Ryzen 7000 Series

Memory

Number of DIMM slots4
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
ECCYes
Non-ECCYes

Storage

Number of storage drives supported5
Hot-swap HDD baysYes
Number of 2.5" bays4
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, PCI Express 5.0
RAID levels0, 1, 10
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I210-AT

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1
COM ports quantity1

Expansion slots

PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes
Compatible operating systemsWindows 10 21H2 Windows 11

Design

Chassis typeRack (1U)
Product colourBlack, Steel
LED indicatorsLAN, HDD, SSD, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter4 cm
Heat sink includedYes
Number of fans3 fan(s)

Power

Power supply350 W
Number of main power supplies1
Redundant power supply (RPS) supportYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current3 - 6 A
DC output current (+5 V)14 A
DC output current (+12 V)29 A
80 PLUS certification80 PLUS Bronze

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 30 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth393.2 mm
Height43.5 mm
Weight6.24 kg
Width430 mm

Packaging data

Packaging content1 x R113-C10-AA01; 1 x CPU heatsink
Package width599 mm
Package depth535 mm
Package height161 mm
Package weight11.2 kg
