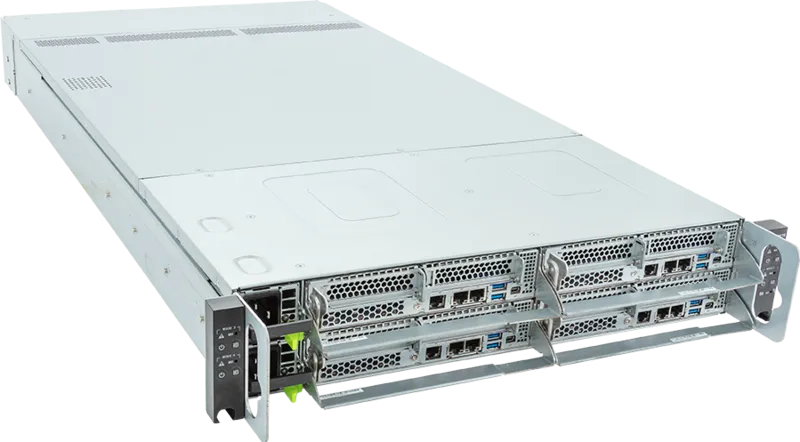

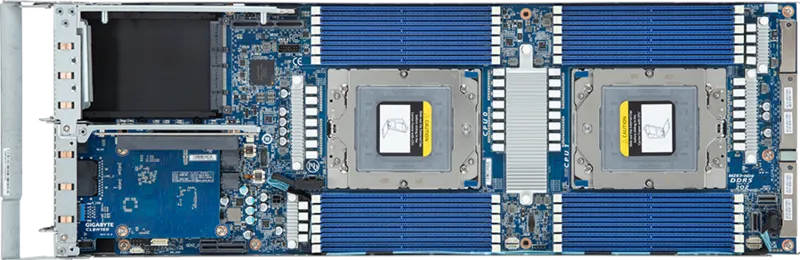

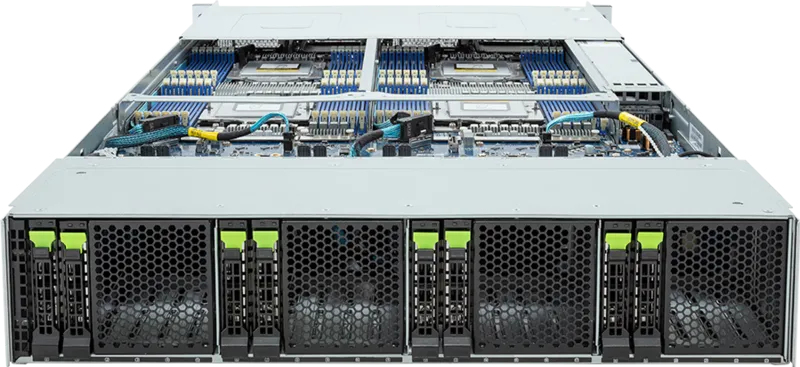

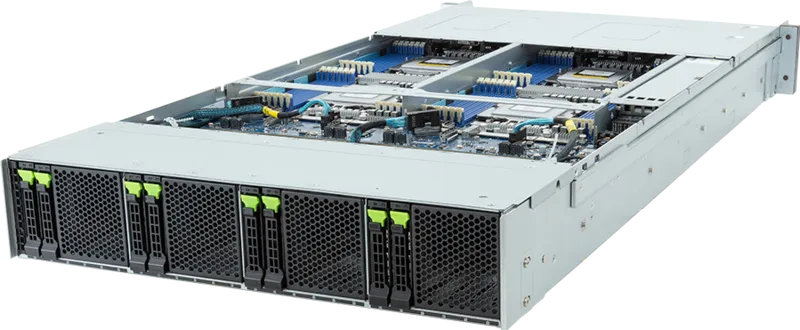

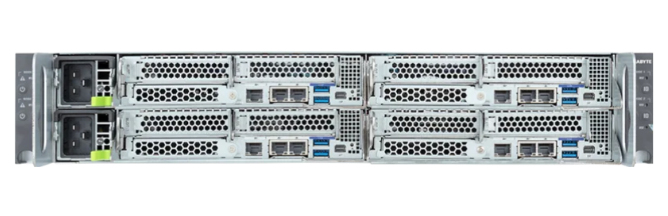

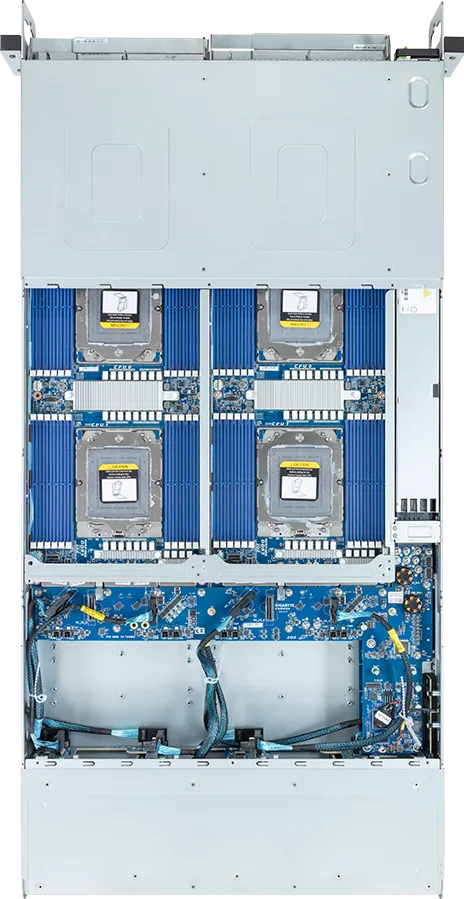

GIGABYTE H273-Z82-IAW1 AMD SoC Socket SP5 Rack (2U) Black, Steel
GIGABYTE

H273-Z82-IAW1 AMD SoC Socket SP5 Rack (2U) Black, Steel

Model H273-Z82-IAW1Part no. 6NH273Z82DR000IAW1EAN 4719331855246

54 specifications
  • Weight51.4 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots96
  • Number of storage drives supported12
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
51.4 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
96
Number of storage drives supported
12
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
H273-Z82-IAW1
Part number
6NH273Z82DR000IAW1
EAN / UPC
4719331855246
Also known as
GIGABYTE H273-Z82-IAW1 AMD SoC Socket SP5 Rack (2U) Black, Steel

Specifications

54 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetAMD SoC
Processor socketSocket SP5
Number of processors supported8
Compatible processor seriesAMD EPYC 9004

Memory

Number of DIMM slots96
Supported memory typesDDR5-SDRAM
Memory channelsDodeca-channel

Storage

Number of storage drives supported12
Hot-swap HDD baysYes
Number of 2.5" bays8
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesPCI Express 4.0, Serial ATA, Serial Attached SCSI (SAS)
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
Ethernet LAN (RJ-45) ports8
Mini DisplayPorts quantity4

Expansion slots

PCI Express x16 (Gen 5.x) slots4
Number of M.2 (M) slots4

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsStatus
On/off switchYes
Reset buttonYes
Heat sink includedYes

Power

Power supply3000 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current16 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating temperature (T-T)25 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth877 mm
Height87.5 mm
Weight51.4 kg
Width440 mm

Packaging data

Packaging content1 x H273-Z82-IAW1; 8 x CPU heatsinks; 1 x Mini-DP to D-Sub cable
Package width1184 mm
Package depth706 mm
Package height394 mm
