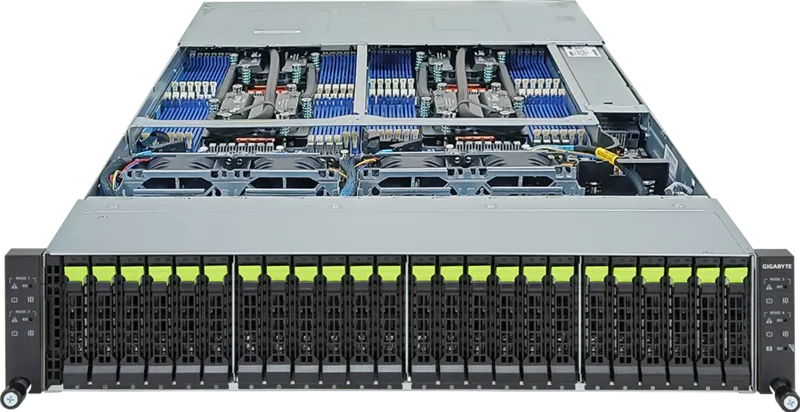

GIGABYTE H273-Z80-LAN1 AMD SoC Socket SP5 Rack (2U) Black, Steel
GIGABYTE

H273-Z80-LAN1 AMD SoC Socket SP5 Rack (2U) Black, Steel

Model H273-Z80-LAN1Part no. 6NH273Z80DZ000LAN1

58 specifications
  • Weight49.7 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots96
  • Number of storage drives supported28
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
49.7 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
96
Number of storage drives supported
28
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
H273-Z80-LAN1
Part number
6NH273Z80DZ000LAN1
Also known as
GIGABYTE H273-Z80-LAN1 AMD SoC Socket SP5 Rack (2U) Black, Steel

Specifications

58 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetAMD SoC
Processor socketSocket SP5
Number of processors supported8
Compatible processor seriesAMD EPYC 9004

Memory

Number of DIMM slots96
Supported memory typesDDR5-SDRAM
Memory channelsDodeca-channel

Storage

Number of storage drives supported28
Hot-swap HDD baysYes
Number of 2.5" bays24
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesPCI Express 4.0, Serial ATA, Serial Attached SCSI (SAS)
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
Ethernet LAN (RJ-45) ports8
Mini DisplayPorts quantity4

Expansion slots

PCI Express x16 (Gen 5.x) slots4
Number of M.2 (M) slots4

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsStatus
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply2600 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current15 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth877 mm
Height87.5 mm
Weight49.7 kg
Width440 mm

Packaging data

Packaging content1 x H273-Z80-LAN1; 1 x Mini-DP to D-Sub cable; 1 x 3-Section Rail kit
Package width1190 mm
Package depth711 mm
Package height423 mm
Package weight51.1 kg
