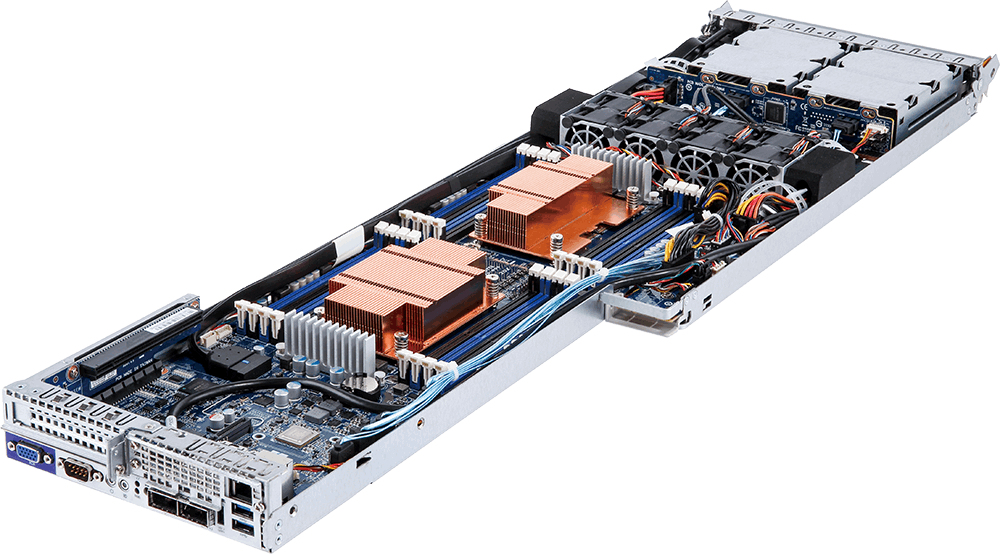

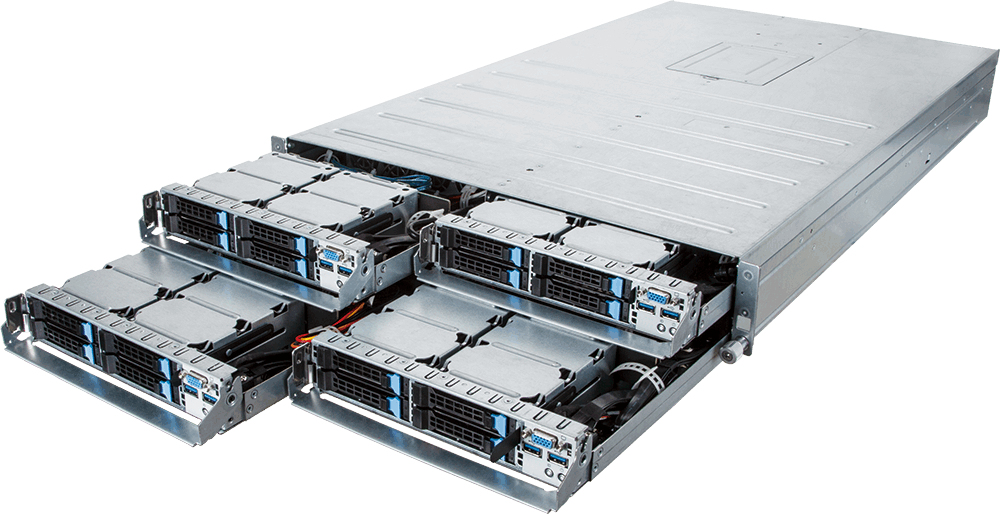

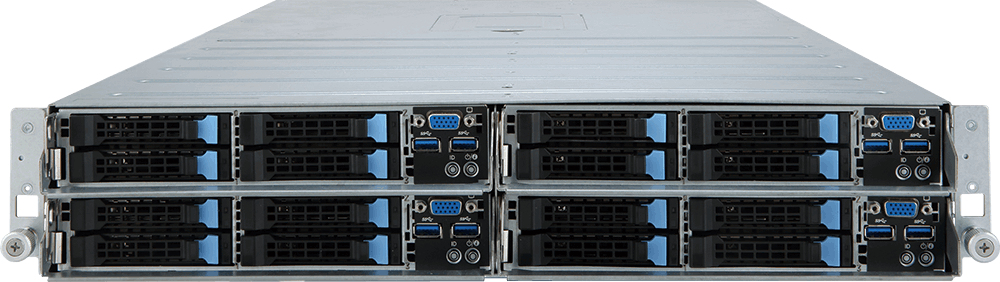

GIGABYTE H270-T71 Rack (2U) Black, Grey
GIGABYTE

H270-T71 Rack (2U) Black, Grey

Model H270-T71Part no. 6NH270T71MR-00

47 specifications
  • Weight38 kg
  • ColourBlack, Grey
  • Built-in processorYes
  • Number of DIMM slots64
  • Number of storage drives supported16
  • On-board graphics card modelAspeed AST2400
See all specifications

Overview

Weight
38 kg
Colour
Black, Grey
Built-in processor
Yes
Number of DIMM slots
64
Number of storage drives supported
16
On-board graphics card model
Aspeed AST2400
Brand
GIGABYTE
Model
H270-T71
Part number
6NH270T71MR-00
Also known as
GIGABYTE H270-T71 Rack (2U) Black, Grey

Specifications

47 specifications in 12 groups

Processor

Built-in processorYes
Processor frequency1.8 GHz
Number of processors supported8

Memory

Number of DIMM slots64
Supported memory typesDDR4-SDRAM
Maximum RDIMM memory2 TB
Supported RDIMM clock speeds1866,2133 MHz
Memory channelsQuad-channel

Storage

Number of storage drives supported16
Hot-swap HDD baysYes
Number of 2.5" bays16
Storage drive sizes supported2.5"
Supported storage drive typesHDD & SSD

Graphics

On-board graphics card modelAspeed AST2400

Network

Ethernet LANYes
Ethernet interface type40 Gigabit Ethernet, Gigabit Ethernet

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
Ethernet LAN (RJ-45) ports4
VGA (D-Sub) ports quantity4
COM ports quantity4
SFP+ module slots quantity8

Features

Compatible operating systemsUbuntu 16.04.1 x64, SLES12 SP2, openSUSE Tumbleweed, openSUSE Leap 42.1+, RHEL 7.3 x64, CentOS 7.3 x64

Design

Chassis typeRack (2U)
Product colourBlack, Grey
LED indicatorsLAN, Link, Power, Status
On/off switchYes
Reset buttonYes
Fan diameter4 cm
Number of fans16 fan(s)

Power

Power supply1600 W
Redundant power supply (RPS) supportYes
Number of redundant power supplies installed2
AC input voltage100 - 230 V
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth780 mm
Height87.2 mm
Weight38 kg
Width447 mm

Packaging data

Packaging content1 x H270-T71 system 1 x Quick Installation Guide Rail kit
Package width1133 mm
Package depth261 mm
Package height724 mm
