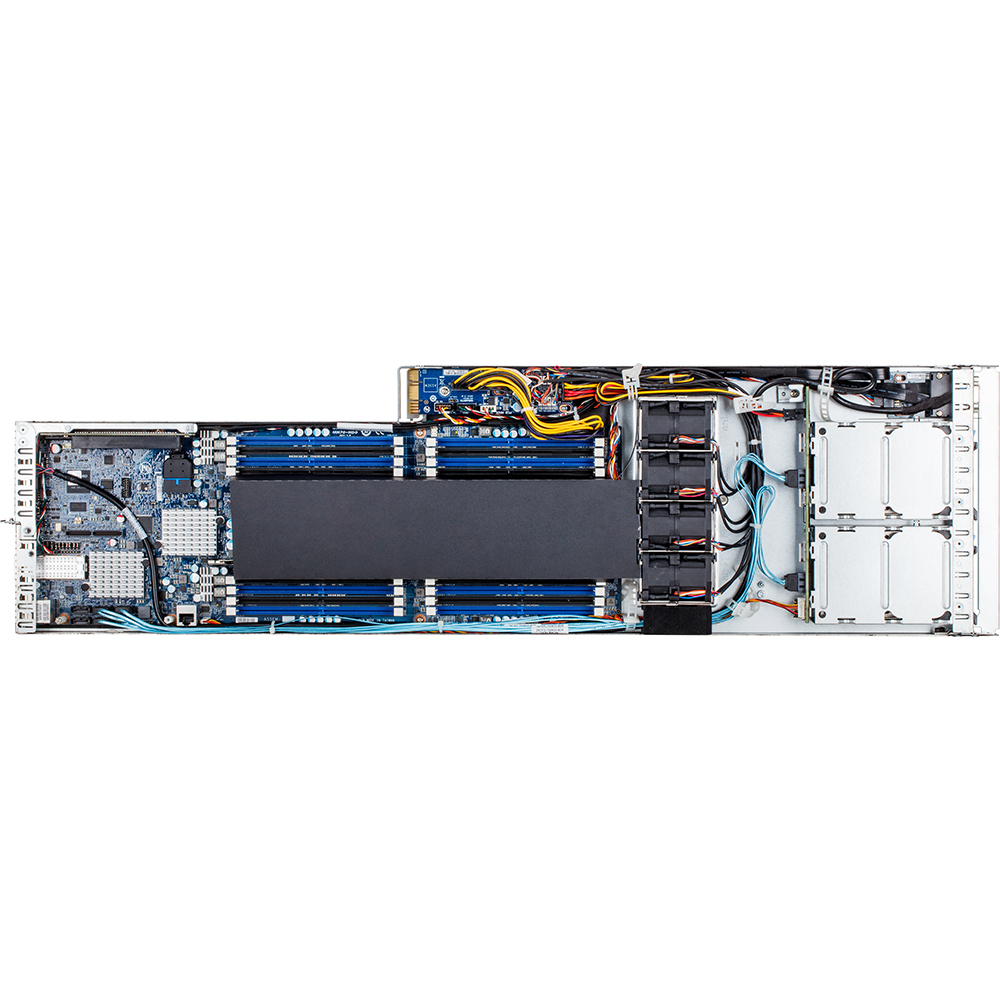

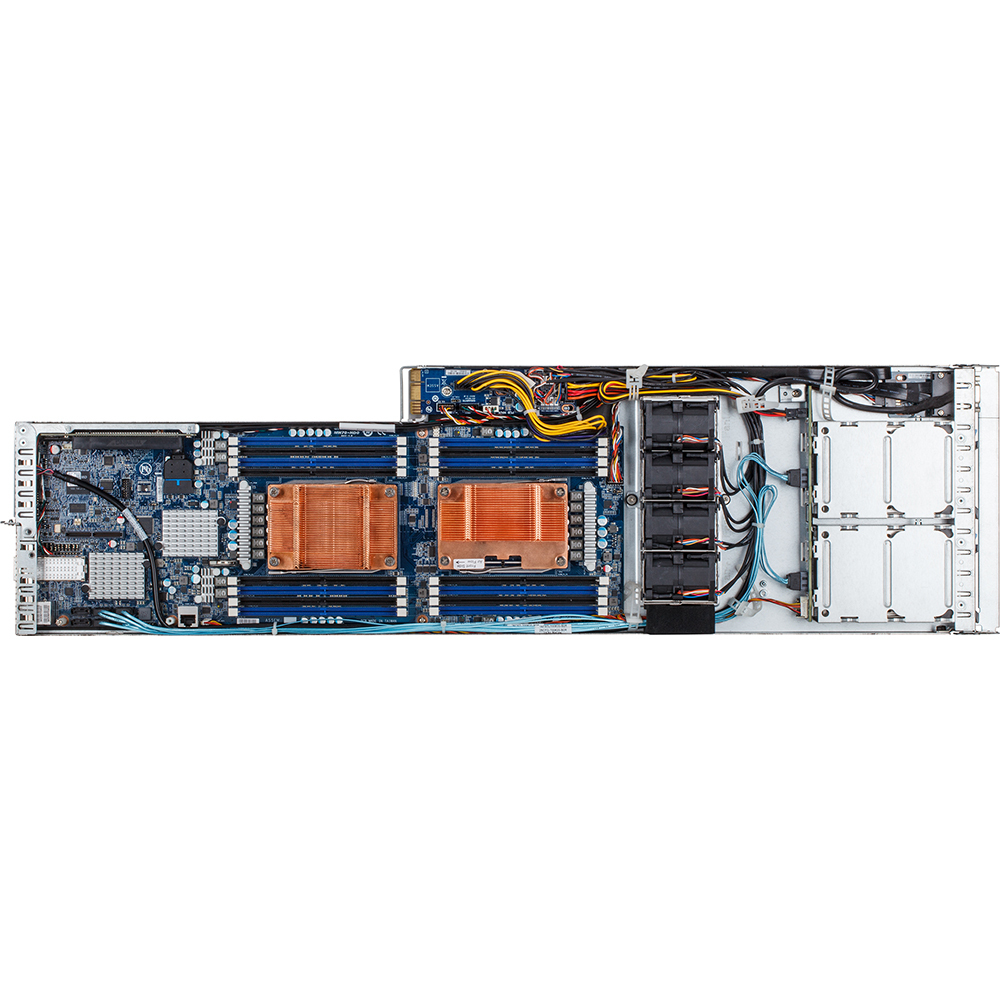

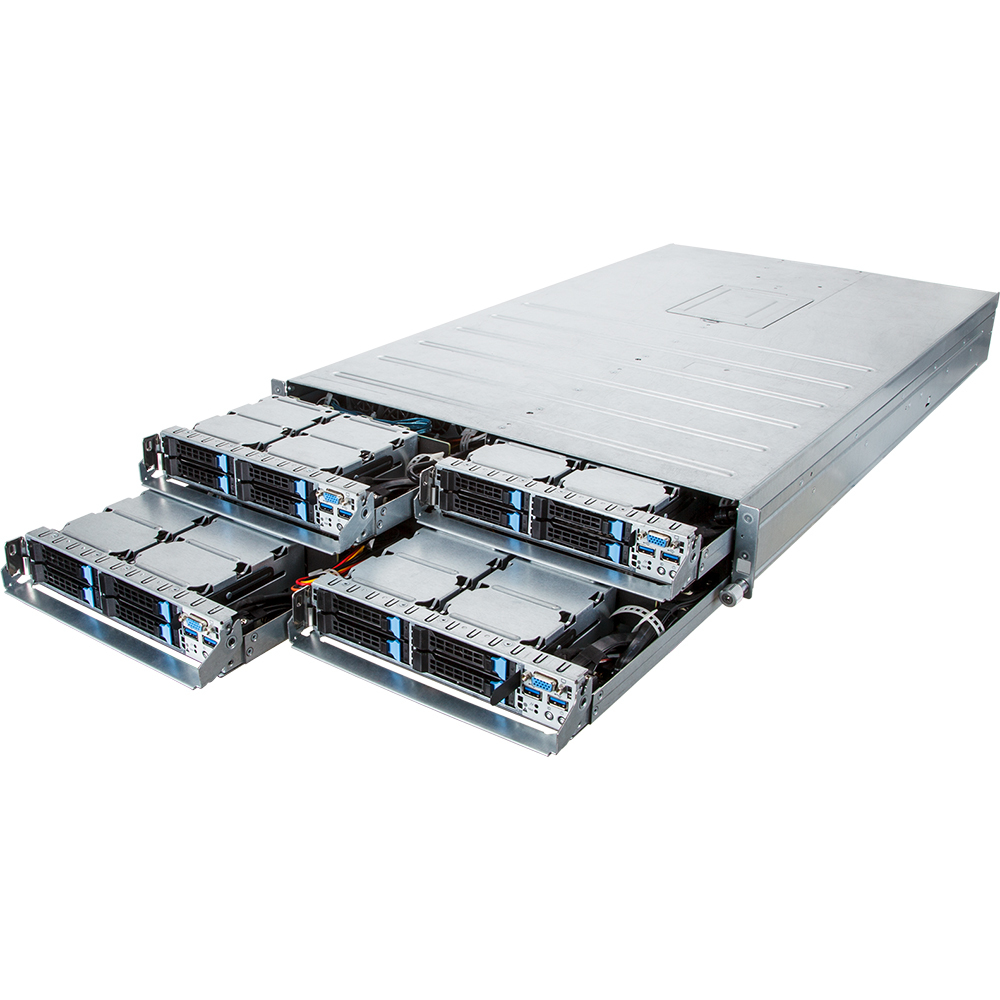

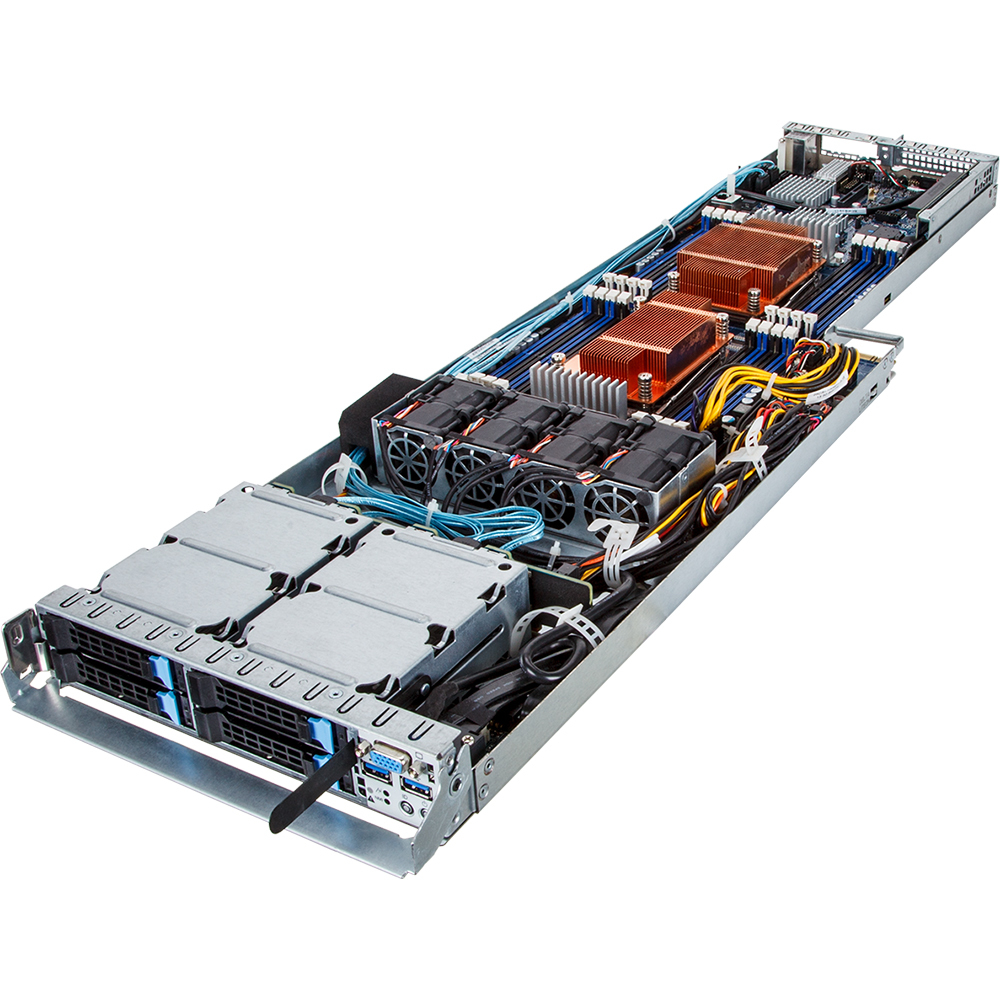

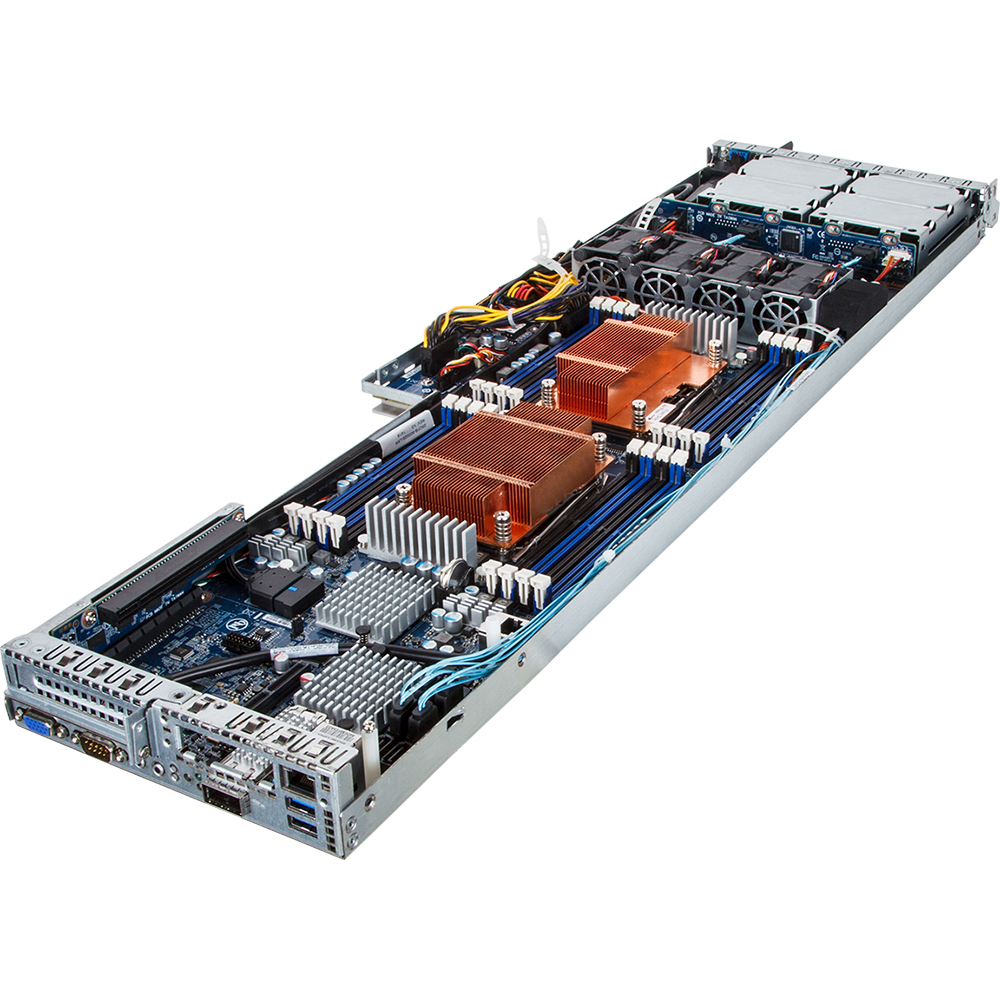

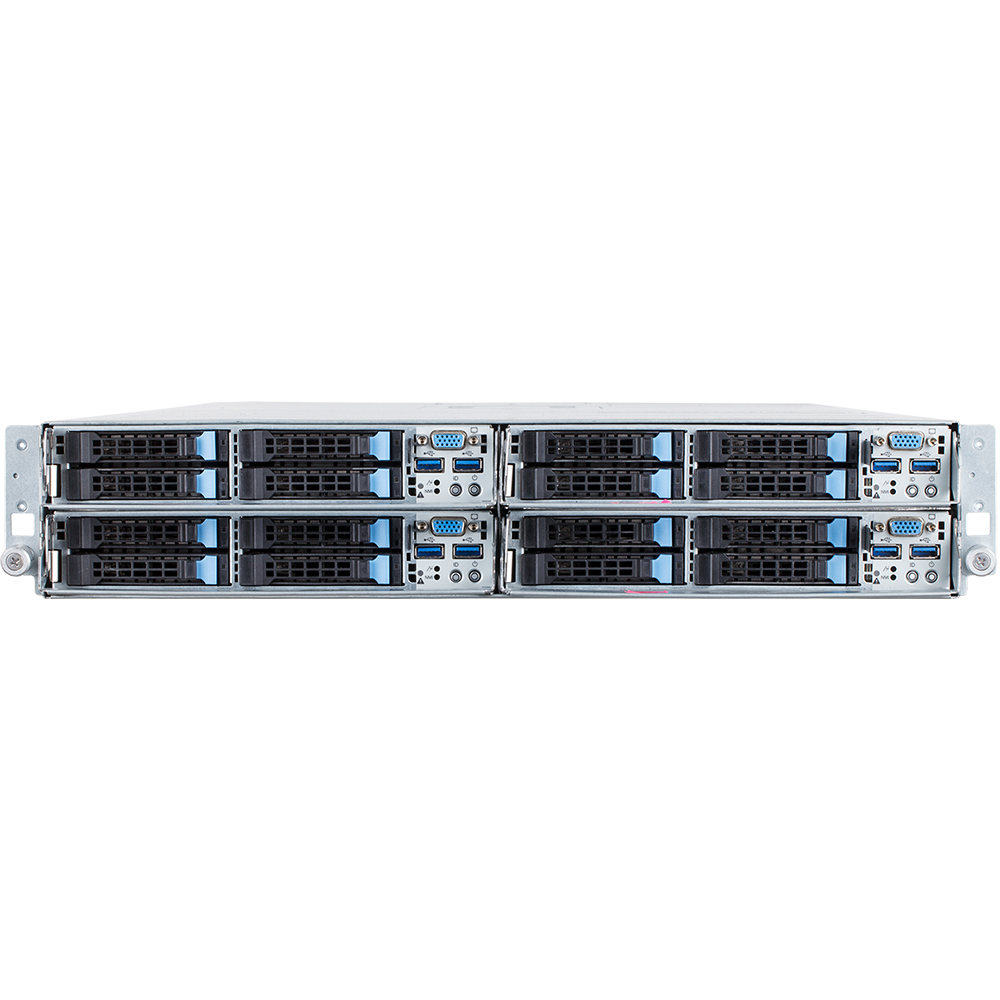

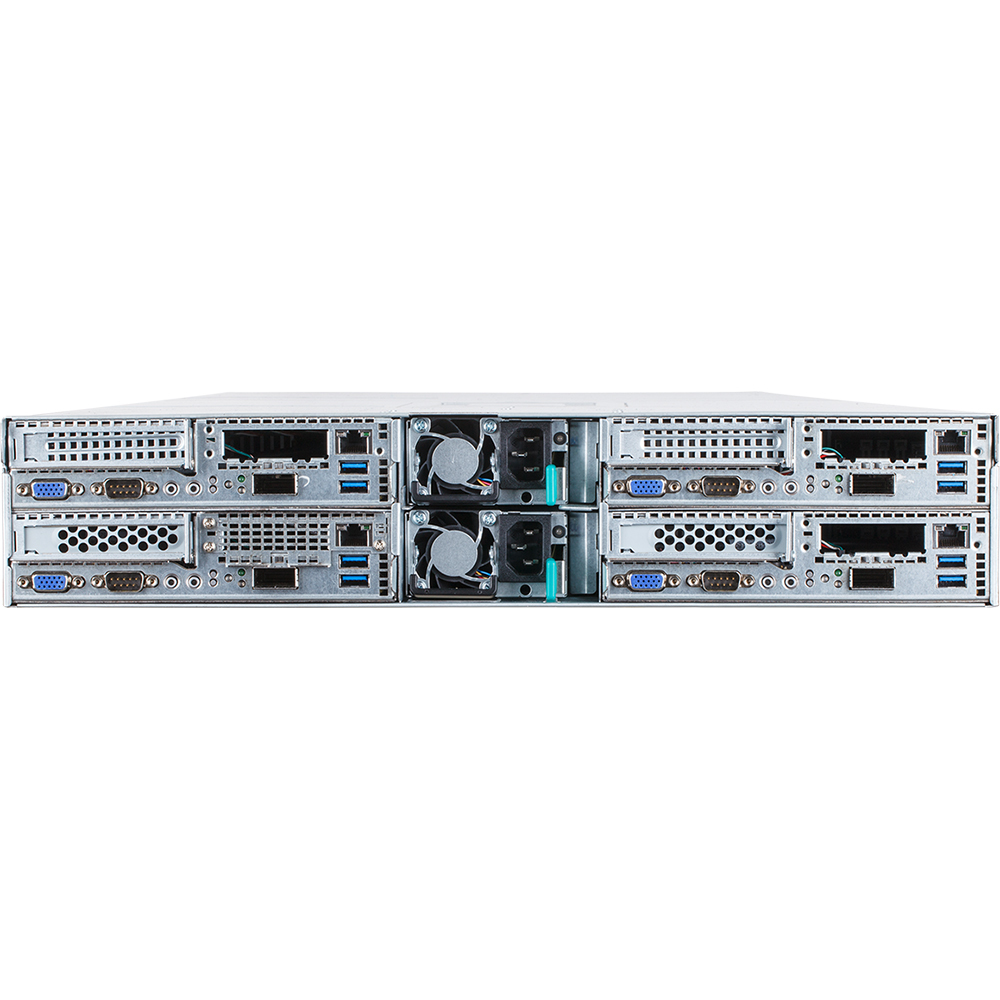

GIGABYTE H270-F4G Intel® C612 LGA 2011-v3 Rack (2U) Black, Grey
GIGABYTE

H270-F4G Intel® C612 LGA 2011-v3 Rack (2U) Black, Grey

Model H270-F4GPart no. 6NH270F4GMR-00EAN 4719331241704

64 specifications
  • Weight38 kg
  • ColourBlack, Grey
  • Built-in processorNo
  • Number of DIMM slots64
  • Number of storage drives supported16
  • Number of discrete graphics cards0
See all specifications

Overview

Weight
38 kg
Colour
Black, Grey
Built-in processor
No
Number of DIMM slots
64
Number of storage drives supported
16
Number of discrete graphics cards
0
Brand
GIGABYTE
Model
H270-F4G
Part number
6NH270F4GMR-00
EAN / UPC
4719331241704
Also known as
GIGABYTE H270-F4G Intel® C612 LGA 2011-v3 Rack (2U) Black, Grey

Specifications

64 specifications in 15 groups

Processor

Built-in processorNo
Motherboard chipsetIntel® C612
Processor socketLGA 2011-v3
Number of processors supported8
Compatible processor seriesIntel® Xeon®
Intel Xeon seriesE5-2600

Memory

Number of DIMM slots64
Supported memory typesDDR4-SDRAM
Supported RDIMM clock speeds1600,1866,2133,2400 MHz
Memory voltage1.2 V

Storage

Number of storage drives supported16
Hot-swap HDD baysYes
Number of 3.5" bays16
Storage drive sizes supported2.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA III
RAID levels0, 1, 5, 10

Graphics

Number of discrete graphics cards0
On-board graphics card modelAspeed AST2400

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000,10000 Mbit/s
LAN controllerIntel® 82599ES

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity16
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports4
HDMI ports quantity0
DisplayPorts quantity0
VGA (D-Sub) ports quantity8
Serial ports quantity4
Number of SATA III connectors6

Expansion slots

PCI Express x8 slots1
PCI Express x16 slots1
PCI Express x8 (Gen 1.x) slots1
PCI Express x16 (Gen 3.x) slots1

Features

Backplanes supportYes

Logistics data

Harmonized System (HS) code84714100

Processor special features

Intelligent Platform Management Interface (IPMI) supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Grey
LED indicatorsYes
Fan diameter4 cm
Number of fans16 fan(s)

Power

Power supply1600 W
Redundant power supply (RPS) supportYes
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency47 - 63 Hz
Input current12/9.48 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth780 mm
Height87.2 mm
Weight38 kg
Width447 mm

Packaging data

Package width1133 mm
Package depth724 mm
Package height261 mm
