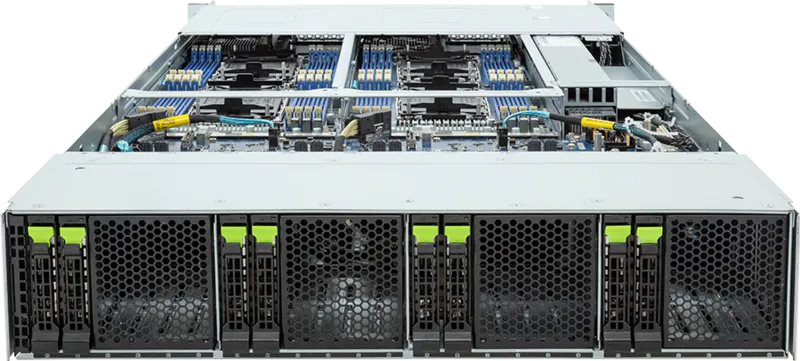

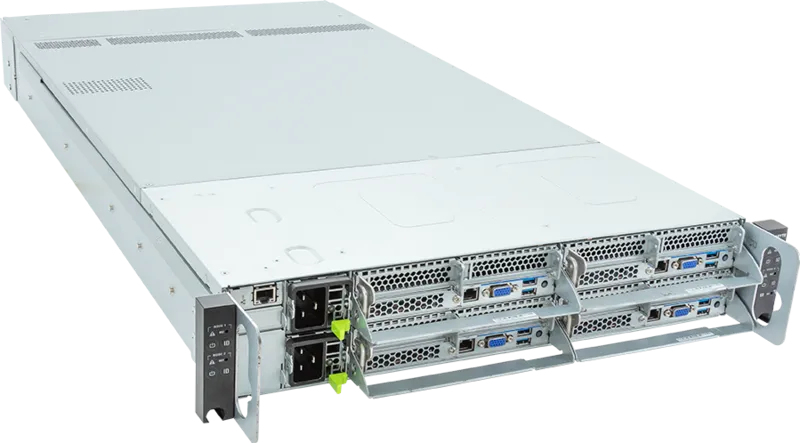

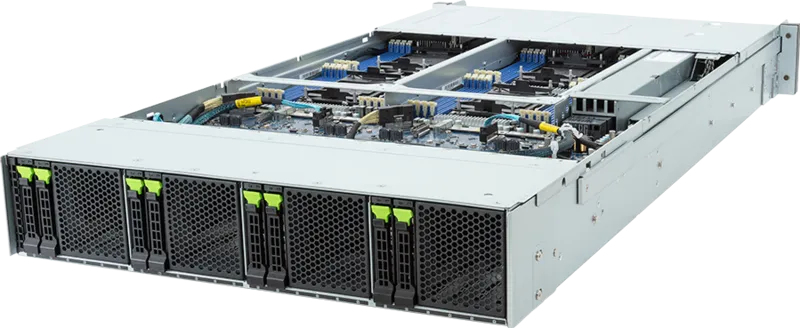

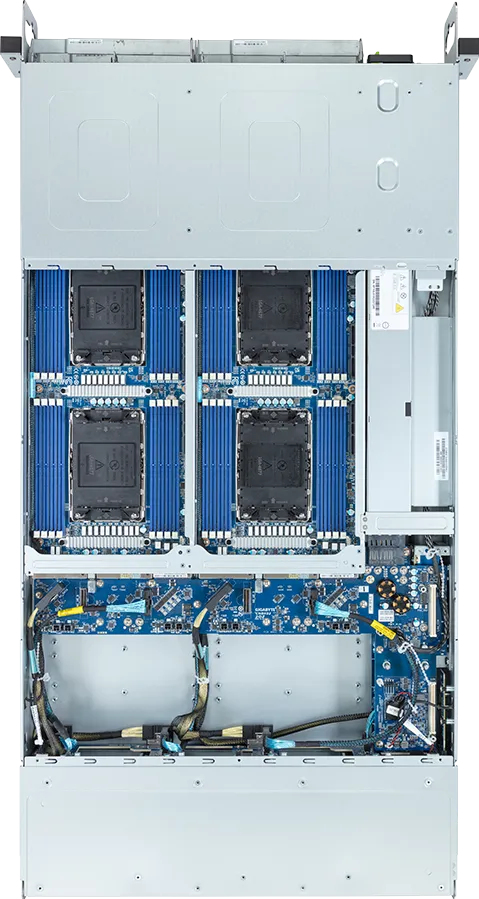

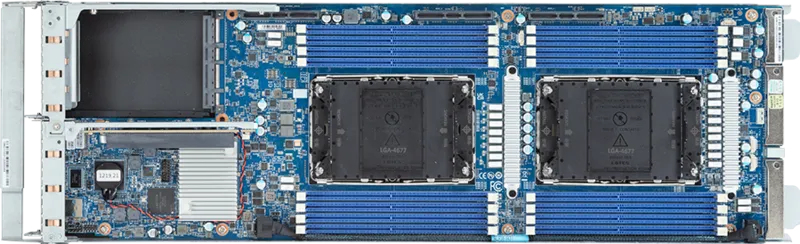

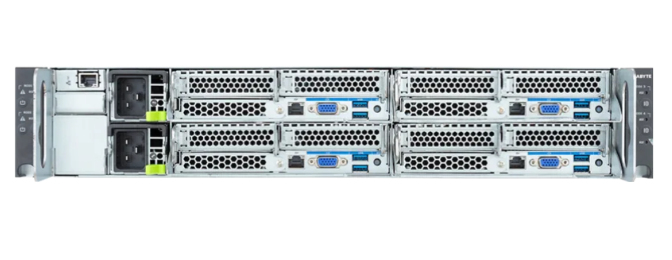

GIGABYTE H263-S64-IAW1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Steel
GIGABYTE

H263-S64-IAW1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Steel

Model H263-S64-IAW1Part no. 6NH263S64DR000IAW1EAN 4719331857899

52 specifications
  • Weight43.3 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots64
  • Number of storage drives supported12
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
43.3 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
64
Number of storage drives supported
12
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
H263-S64-IAW1
Part number
6NH263S64DR000IAW1
EAN / UPC
4719331857899
Also known as
GIGABYTE H263-S64-IAW1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Steel

Specifications

52 specifications in 12 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C741
Processor socketLGA 4677 (Socket E)
Number of processors supported8
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots64
Supported memory typesDDR5-SDRAM
Memory channelsOcta-channel

Storage

Number of storage drives supported12
Hot-swap HDD baysYes
Number of 2.5" bays8
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesPCI Express 4.0, Serial ATA, Serial Attached SCSI (SAS)
RAID levels0, 1
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
Ethernet LAN (RJ-45) ports0
VGA (D-Sub) ports quantity4

Expansion slots

PCI Express x16 (Gen 5.x) slots4
Number of M.2 (M) slots4

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsStatus
On/off switchYes
Reset buttonYes
Heat sink includedYes

Power

Power supply3000 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported3
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current16 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating temperature (T-T)25 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth850 mm
Height87.5 mm
Weight43.3 kg
Width440 mm

Packaging data

Packaging content1 x H263-S64-IAW1; 8 x CPU heatsinks; 24 x Carriers
Package width1184 mm
Package depth706 mm
Package height394 mm
Package weight48.3 kg
