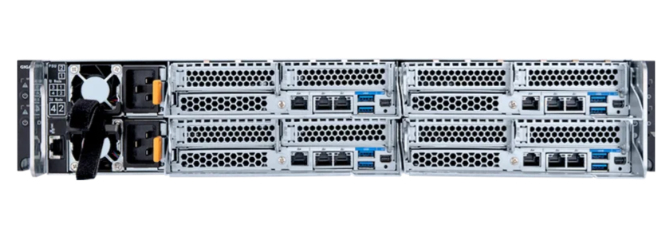

GIGABYTE H262-Z6B-ICP1 AMD SoC Socket SP3 Rack (2U) Black, Steel
GIGABYTE

H262-Z6B-ICP1 AMD SoC Socket SP3 Rack (2U) Black, Steel

Model H262-Z6B-ICP1Part no. 6NH262Z6BRR000ICP1EAN 4719331849559

54 specifications
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots64
  • Number of storage drives supported12
  • On-board graphics card modelAspeed AST2500
  • Ethernet LANYes
See all specifications

Overview

Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
64
Number of storage drives supported
12
On-board graphics card model
Aspeed AST2500
Ethernet LAN
Yes
Brand
GIGABYTE
Model
H262-Z6B-ICP1
Part number
6NH262Z6BRR000ICP1
EAN / UPC
4719331849559
Also known as
GIGABYTE H262-Z6B-ICP1 AMD SoC Socket SP3 Rack (2U) Black, Steel

Specifications

54 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetAMD SoC
Processor socketSocket SP3
Number of processors supported8
Compatible processor seriesAMD EPYC 7002, AMD EPYC 7003

Memory

Number of DIMM slots64
Supported memory typesDDR4-SDRAM
Memory channelsOcta-channel

Storage

Number of storage drives supported12
Hot-swap HDD baysYes
Number of 2.5" bays8
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, PCI Express 4.0
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
Ethernet LAN (RJ-45) ports8
Mini DisplayPorts quantity4

Expansion slots

PCI Express x16 (Gen 4.x) slots8
Number of M.2 (M) slots4

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes
Compatible operating systemsCitrix Hypervisor 8.2.0 or later; Red Hat Enterprise Linux 8.3 or later; Red Hat Enterprise Linux 9.0 or later; SUSE Linux Enterprise Server 12 SP5 or later; SUSE Linux Enterprise Server 15 SP2 or later; Ubuntu 18.04.5 LTS or later; Ubuntu 20.04 LTS or later; Ubuntu 22.04 LTS or later; VMware ESXi 6

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsStatus
On/off switchYes
Reset buttonYes
Heat sink includedYes

Power

Power supply3000 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current15.5 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating temperature (T-T)25 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth840 mm
Height87.5 mm
Width440 mm

Packaging data

Packaging content1 x H262-Z6B; 8 x CPU heatsinks
Package width1180 mm
Package depth779 mm
Package height300 mm
