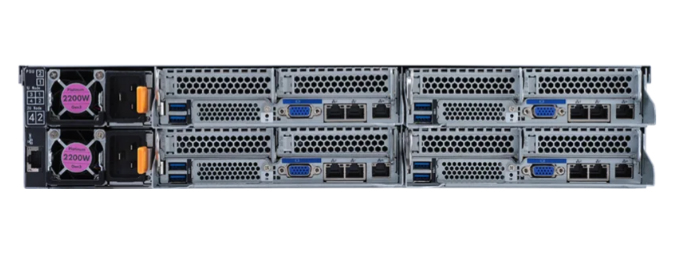

GIGABYTE H262-PC0 Intel C621A LGA 4189 Rack (2U) Black, Steel
GIGABYTE

H262-PC0 Intel C621A LGA 4189 Rack (2U) Black, Steel

Model H262-PC0Part no. 6NH262PC0MR-00EAN 4719331600327

60 specifications
  • Weight27.4 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots64
  • Number of storage drives supported8
  • On-board graphics card modelAspeed AST2500
See all specifications

Overview

Weight
27.4 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
64
Number of storage drives supported
8
On-board graphics card model
Aspeed AST2500
Brand
GIGABYTE
Model
H262-PC0
Part numbers
6NH262PC0MR-00, H262-PC0
EAN / UPC
4719331600327, 889523033449
Also known as
GIGABYTE H262-PC0 Intel C621A LGA 4189 Rack (2U) Black, Steel

Specifications

60 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C621A
Processor socketLGA 4189
Number of processors supported8
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots64
Supported memory typesDDR4-SDRAM
Maximum RDIMM memory128 GB
Memory channelsOcta-channel

Storage

Number of storage drives supported8
Hot-swap HDD baysYes
Number of 2.5" bays8
Storage drive sizes supported2.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, Serial Attached SCSI (SAS)
RAID levels0, 1
SSD form factor2.5"

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet
Ethernet LAN data rates10,100,1000,10000 Mbit/s
LAN controllerIntel X710-AT2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
Ethernet LAN (RJ-45) ports8
VGA (D-Sub) ports quantity4

Expansion slots

PCI Express x16 (Gen 4.x) slots8

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes
Compatible operating systemsCitrix Hypervisor 8.2.0 or later Red Hat Enterprise Linux 7.9 or later; Red Hat Enterprise Linux 8.2 or later; Red Hat Enterprise Linux 9.0 or later; SUSE Linux Enterprise Server 12 SP5 or later; SUSE Linux Enterprise Server 15 SP2 or later; Ubuntu 20.04 LTS or later; Ubuntu 22.04 LTS or later; VMwa

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsStatus
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Heat sink includedYes
Number of fans8 fan(s)

Power

Power supply2200 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current12.6 - 14 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 30 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth840 mm
Height87.5 mm
Weight27.4 kg
Width440 mm

Packaging data

Packaging content1 x H262-PC0; 8 x CPU heatsinks; 1 x 3-Section Rail kit
Package width1180 mm
Package depth779 mm
Package height300 mm
