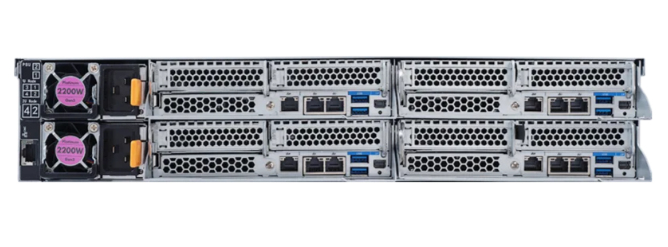

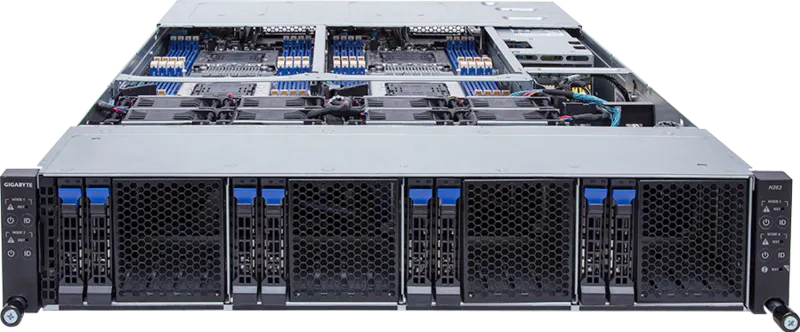

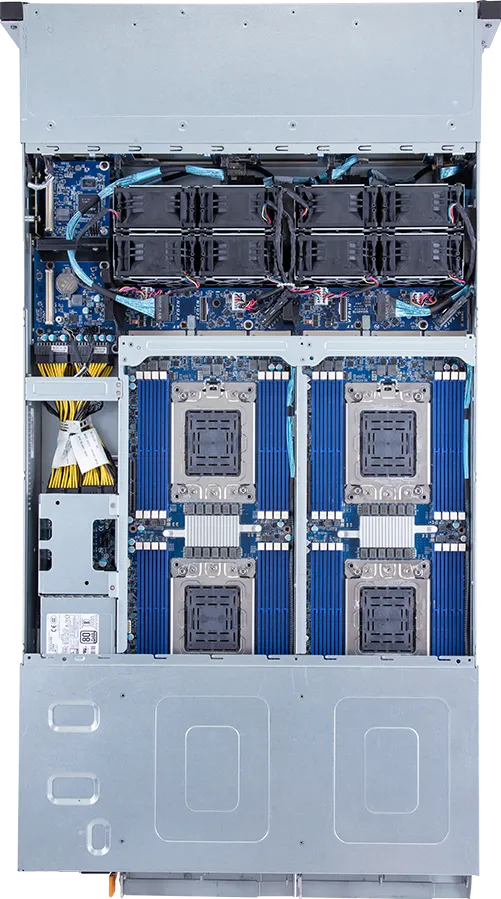

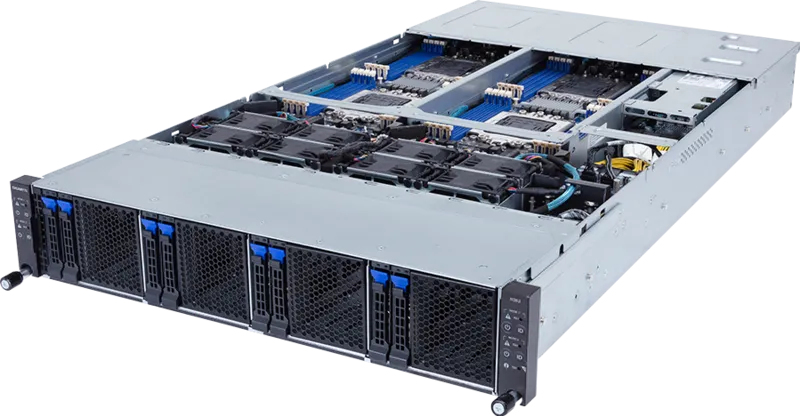

GIGABYTE H262-P61 LGA 4926 Rack (2U) Black, Steel
GIGABYTE

H262-P61 LGA 4926 Rack (2U) Black, Steel

Model H262-P61Part no. 6NH262P61MR-00EAN 4719331601935

58 specifications
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots64
  • Number of storage drives supported12
  • On-board graphics card modelAspeed AST2600
  • Ethernet LANYes
See all specifications

Overview

Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
64
Number of storage drives supported
12
On-board graphics card model
Aspeed AST2600
Ethernet LAN
Yes
Brand
GIGABYTE
Model
H262-P61
Part number
6NH262P61MR-00
EAN / UPC
4719331601935
Also known as
GIGABYTE H262-P61 LGA 4926 Rack (2U) Black, Steel

Specifications

58 specifications in 13 groups

Processor

Built-in processorNo
Processor socketLGA 4926
Number of processors supported8
Compatible processor seriesAmpere Altra

Memory

Number of DIMM slots64
Supported memory typesDDR4-SDRAM
Maximum RDIMM memory256 GB
Memory channelsOcta-channel

Storage

Number of storage drives supported12
Hot-swap HDD baysYes
Number of 2.5" bays8
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, PCI Express 4.0
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
Ethernet LAN (RJ-45) ports12
Mini DisplayPorts quantity4

Expansion slots

PCI Express x16 (Gen 4.x) slots8
Number of M.2 (M) slots4

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes
Compatible operating systemsRed Hat Enterprise Linux 8.3 or later; Red Hat Enterprise Linux 8.5 or later; SUSE Linux Enterprise Server 15 SP2 or later; SUSE Linux Enterprise Server 15 SP3 or later; Ubuntu 18.04.5 LTS or later; Ubuntu 20.04.1 LTS or later; Fedora Server 33-1.2 or later; Fedora Server 35-1.2 or later; OracleLinu

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsStatus
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Heat sink includedYes
Number of fans8 fan(s)

Power

Power supply2200 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current12.6 - 14 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 30 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth840 mm
Height87.5 mm
Width440 mm

Packaging data

Packaging content1 x H262-P61; 8 x CPU heatsinks; 1 x 3-Section Rail Kit
Package width1180 mm
Package depth779 mm
Package height300 mm
