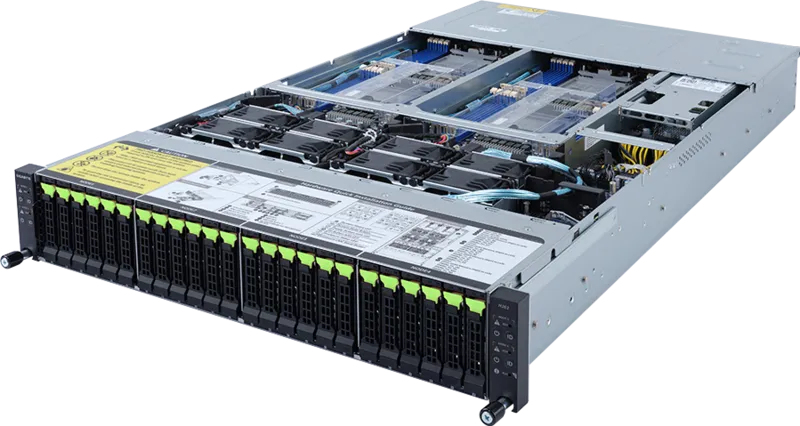

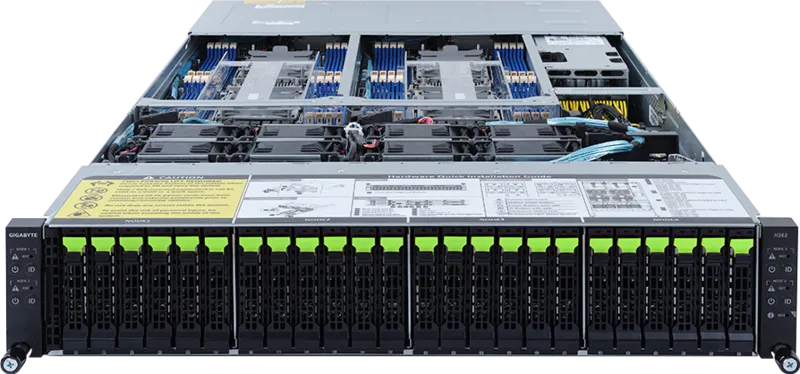

GIGABYTE H262-NO1 Intel C621A LGA 4189 Rack (2U) Black, Steel
GIGABYTE

H262-NO1 Intel C621A LGA 4189 Rack (2U) Black, Steel

Model H262-NO1Part no. 6NH262NO1MR-00EAN 4719331601454

56 specifications
  • Weight27.8 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots64
  • Number of storage drives supported24
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
27.8 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
64
Number of storage drives supported
24
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
H262-NO1
Part number
6NH262NO1MR-00
EAN / UPC
4719331601454
Also known as
GIGABYTE H262-NO1 Intel C621A LGA 4189 Rack (2U) Black, Steel

Specifications

56 specifications in 12 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C621A
Processor socketLGA 4189
Number of processors supported8
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots64
Supported memory typesDDR4-SDRAM
Maximum RDIMM memory128 GB
Memory channelsOcta-channel

Storage

Number of storage drives supported24
Hot-swap HDD baysYes
Number of 2.5" bays24
Storage drive sizes supported2.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesPCI Express 4.0, Serial ATA, Serial Attached SCSI (SAS)
RAID levels0, 1, 5, 10
SSD form factor2.5"

Graphics

On-board graphics card modelAspeed AST2600

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
Ethernet LAN (RJ-45) ports0
VGA (D-Sub) ports quantity4

Expansion slots

PCI Express x16 (Gen 4.x) slots8

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes
Compatible operating systemsCitrix Hypervisor 8.2.0 or later; Red Hat Enterprise Linux 7.9 or later; Red Hat Enterprise Linux 8.2 or later; Red Hat Enterprise Linux 9.0 or later; SUSE Linux Enterprise Server 12 SP5 or later; SUSE Linux Enterprise Server 15 SP2 or later; Ubuntu 20.04 LTS or later; Ubuntu 22.04 LTS or later; VMw

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsStatus
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Heat sink includedYes
Number of fans8 fan(s)

Power

Power supply2200 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current12.6 - 14 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 30 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth840 mm
Height87.5 mm
Weight27.8 kg
Width440 mm

Packaging data

Packaging content1 x H262-NO1; 8 x CPU heatsinks; 1 x 3-Section Rail kit
Package width1180 mm
Package depth779 mm
Package height300 mm
