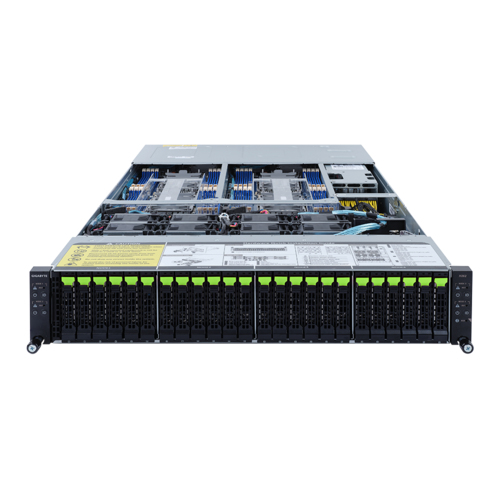

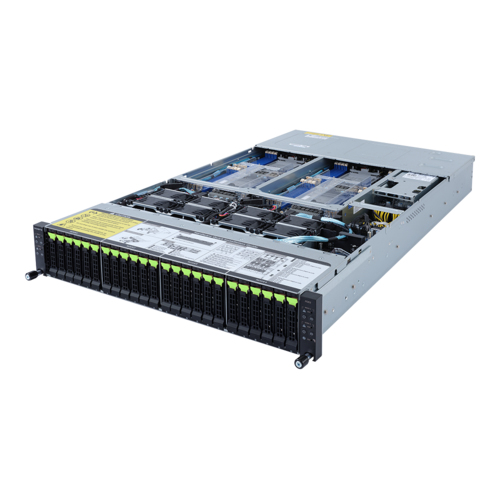

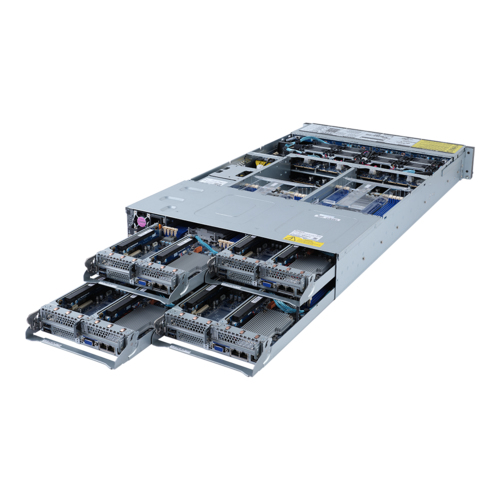

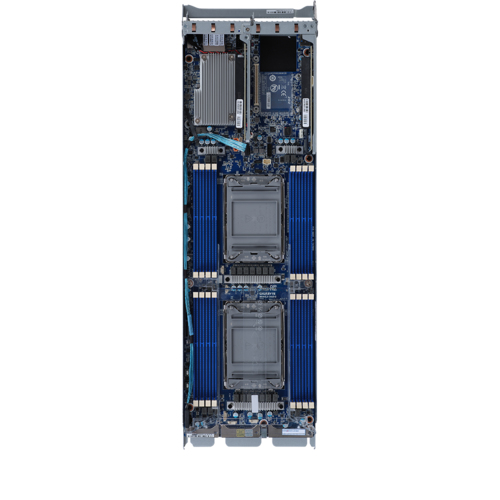

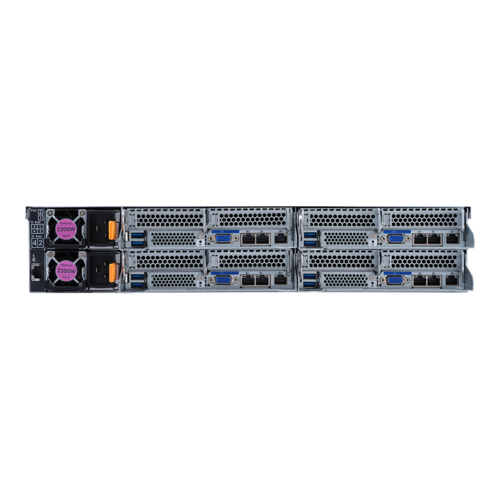

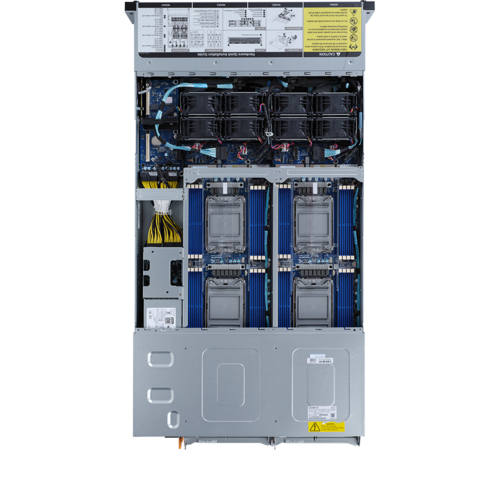

GIGABYTE H262-NO0 Intel® C621 LGA 4189 Rack (2U)
GIGABYTE

H262-NO0 Intel® C621 LGA 4189 Rack (2U)

Model H262-NO0Part no. 6NH262NO0MR-00EAN 4719331600334

51 specifications
  • ProcessorIntel® Xeon® Scalable
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported28
  • On-board graphics card modelAspeed AST2600
  • Ethernet LANYes
See all specifications

Overview

Processor
Intel® Xeon® Scalable
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
28
On-board graphics card model
Aspeed AST2600
Ethernet LAN
Yes
Brand
GIGABYTE
Model
H262-NO0
Part numbers
6NH262NO0MR-00, 6NH262NO0MR-00-1T
EAN / UPC
4719331600334
Also known as
GIGABYTE H262-NO0 Intel® C621 LGA 4189 Rack (2U)

Specifications

51 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetIntel® C621
Processor socketLGA 4189
Processor manufacturerIntel
Processor familyIntel® Xeon® Scalable
Number of processors supported8

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities8GB, 16GB, 32GB, 64GB, 128GB
Maximum RDIMM memory128 GB
Maximum UDIMM memory128 GB
Memory channelsOcta-channel

Storage

Number of storage drives supported28
Hot-swap HDD baysYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesPCI Express, Serial ATA, Serial Attached SCSI (SAS)
RAID levels0, 1, 5, 10

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet
Copper ethernet cabling technology10BASE-T
LAN controllerIntel X710-AT2

Ports & interfaces

Ethernet LAN (RJ-45) ports4
VGA (D-Sub) ports quantity4

Expansion slots

PCI Express slots version4.0
PCI Express x8 slots4
PCI Express x16 slots4

Features

Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Backplanes supportYes
Compatible operating systemsWindows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 8.2 ( x64) or later Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 20.04 LTS (x64) or later Ubuntu 20.04.1 LTS (x64) or later

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (2U)
LED indicatorsPower, Reset, Status
On/off switchYes
Reset buttonYes
Fan diameter8 cm
Number of fans8 fan(s)

Power

Power supply2200 W
Number of main power supplies2
AC input voltage220 - 240 V
AC input frequency47 - 63 Hz
Input current12.6 A
80 PLUS certification80 PLUS Platinum

Weight & dimensions

Depth87.5 mm
Height840 mm
Width440 mm

Packaging data

Packaging content1 x H262-NO0 8 x CPU heatsinks 1 x Rail Kit
Package width1180 mm
Package depth779 mm
Package height300 mm
