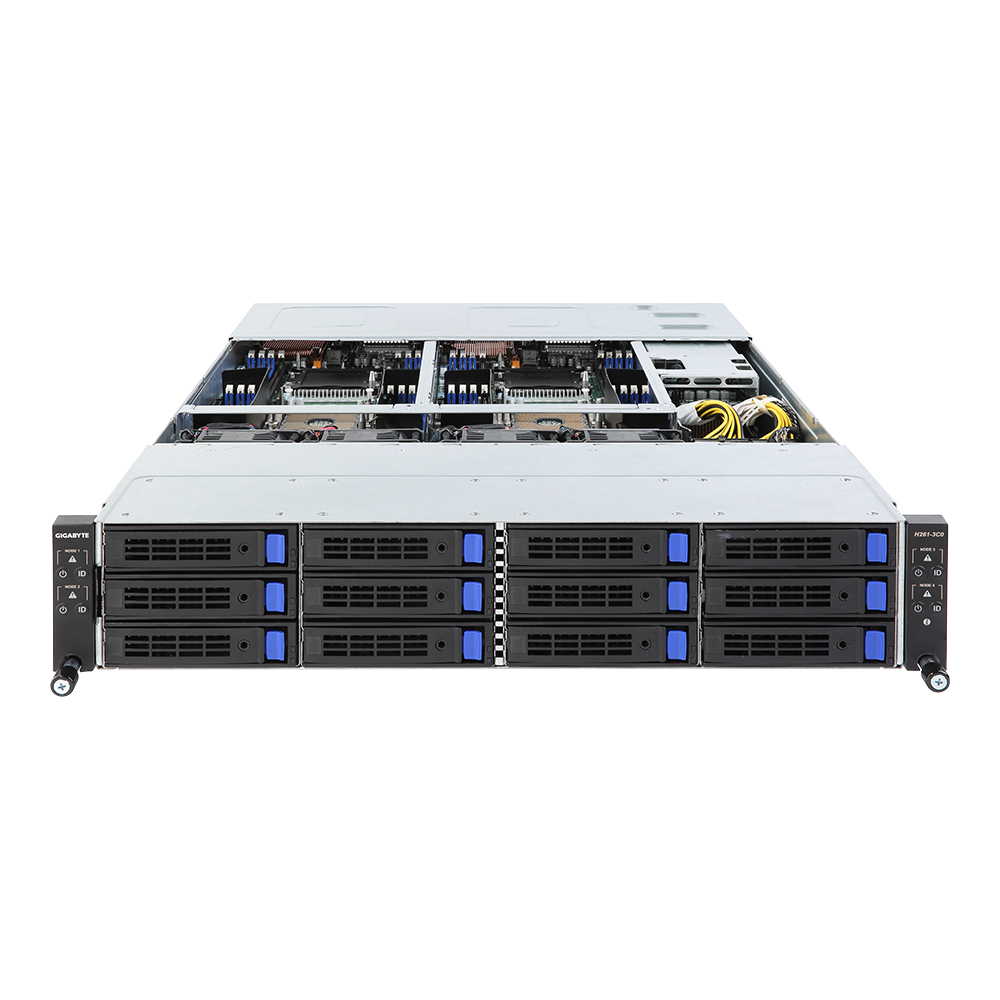

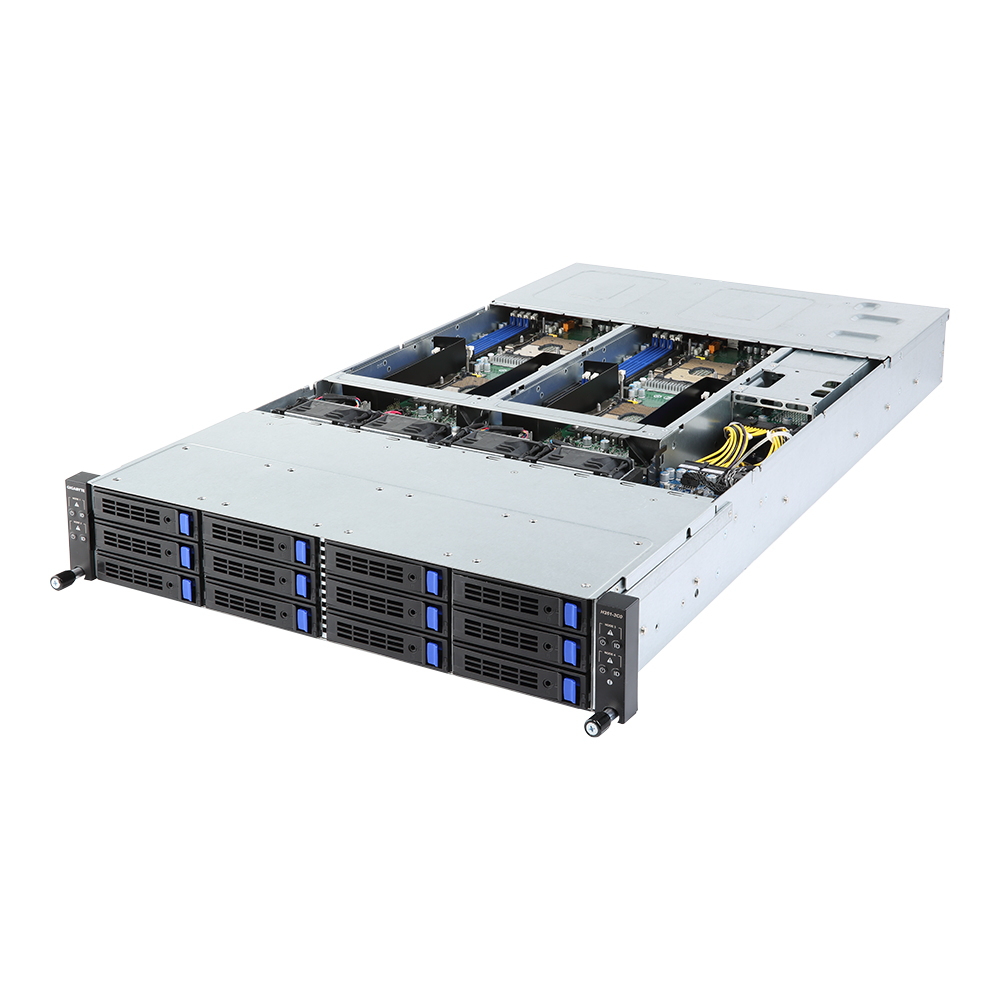

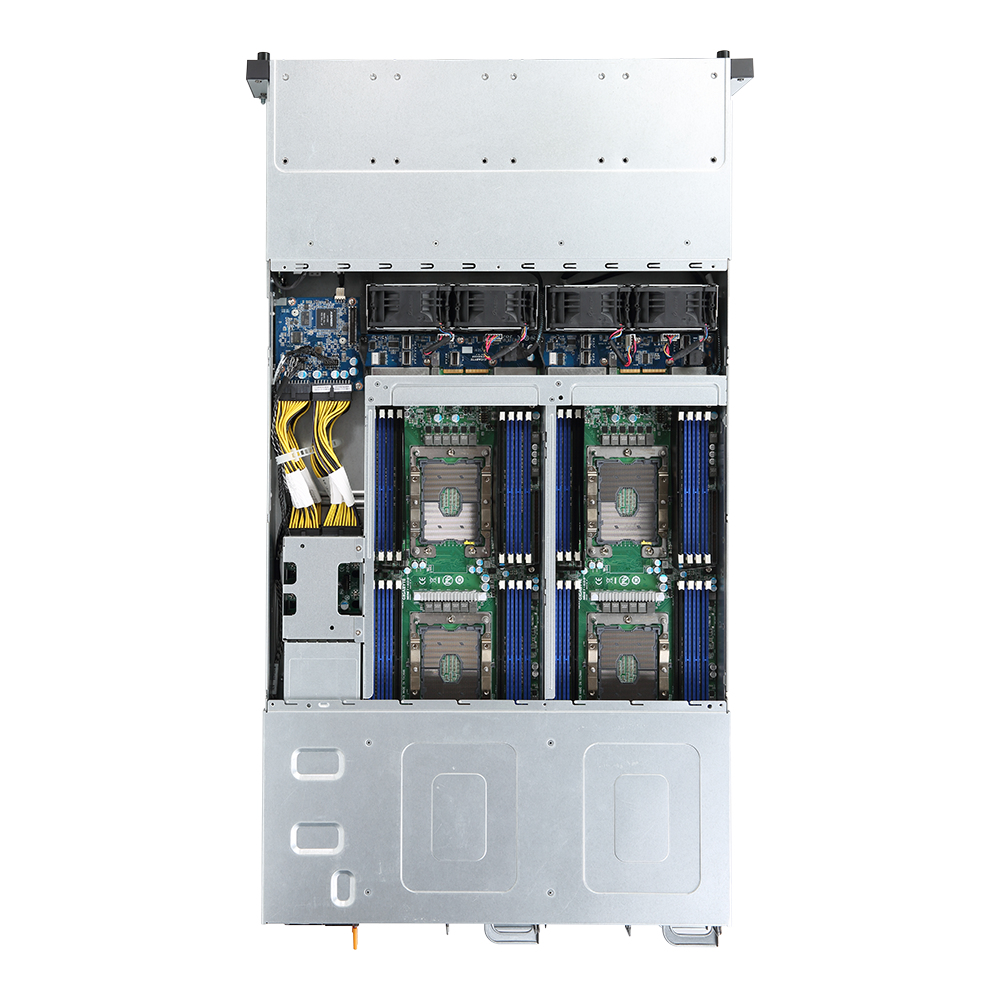

GIGABYTE H261-3C0 Intel® C621 LGA 3647 (Socket P) Rack (2U) Black, Grey
GIGABYTE

H261-3C0 Intel® C621 LGA 3647 (Socket P) Rack (2U) Black, Grey

Model H261-3C0Part no. 6NH2613C0MR-00EAN 4719331263201

61 specifications
  • ColourBlack, Grey
  • Built-in processorNo
  • Number of DIMM slots64
  • Number of storage drives supported12
  • On-board graphics card modelAspeed AST2500
  • Ethernet LANYes
See all specifications

Overview

Colour
Black, Grey
Built-in processor
No
Number of DIMM slots
64
Number of storage drives supported
12
On-board graphics card model
Aspeed AST2500
Ethernet LAN
Yes
Brand
GIGABYTE
Model
H261-3C0
Part numbers
6NH2613C0MR-00, 6NH261PC0MR-00
EAN / UPC
4719331263201, 4719331291358
Also known as
GIGABYTE H261-3C0 Intel® C621 LGA 3647 (Socket P) Rack (2U) Black, Grey

Specifications

61 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetIntel® C621
Processor socketLGA 3647 (Socket P)
Number of processors supported8
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots64
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities64GB
Supported RDIMM clock speeds2133,2400,2666 MHz
Memory voltage1.2 V

Storage

Number of storage drives supported12
Hot-swap HDD baysYes
Number of 3.5" bays12
Storage drive sizes supported3.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA
RAID levels0, 1, 5

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000,10000 Mbit/s
Copper ethernet cabling technology10GBASE-T
LAN controllerIntel® X550

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports12
HDMI ports quantity0
VGA (D-Sub) ports quantity4
Headphone outputs0
Microphone inNo

Expansion slots

PCI Express slots version3.0
PCI Express x8 slots4
PCI Express x16 slots4
PCI Express x8 (Gen 3.x) slots4
PCI Express x16 (Gen 3.x) slots4

Features

Optical drive typeNo
PC health monitoringFan, Temperature, Voltage
Backplanes supportYes

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (2U)
Product colourBlack, Grey
LED indicatorsYes
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply2200 W
Redundant power supply (RPS) supportYes
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency47 - 63 Hz
Input current12.6/14 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth1167 mm
Height309 mm
Width700 mm
