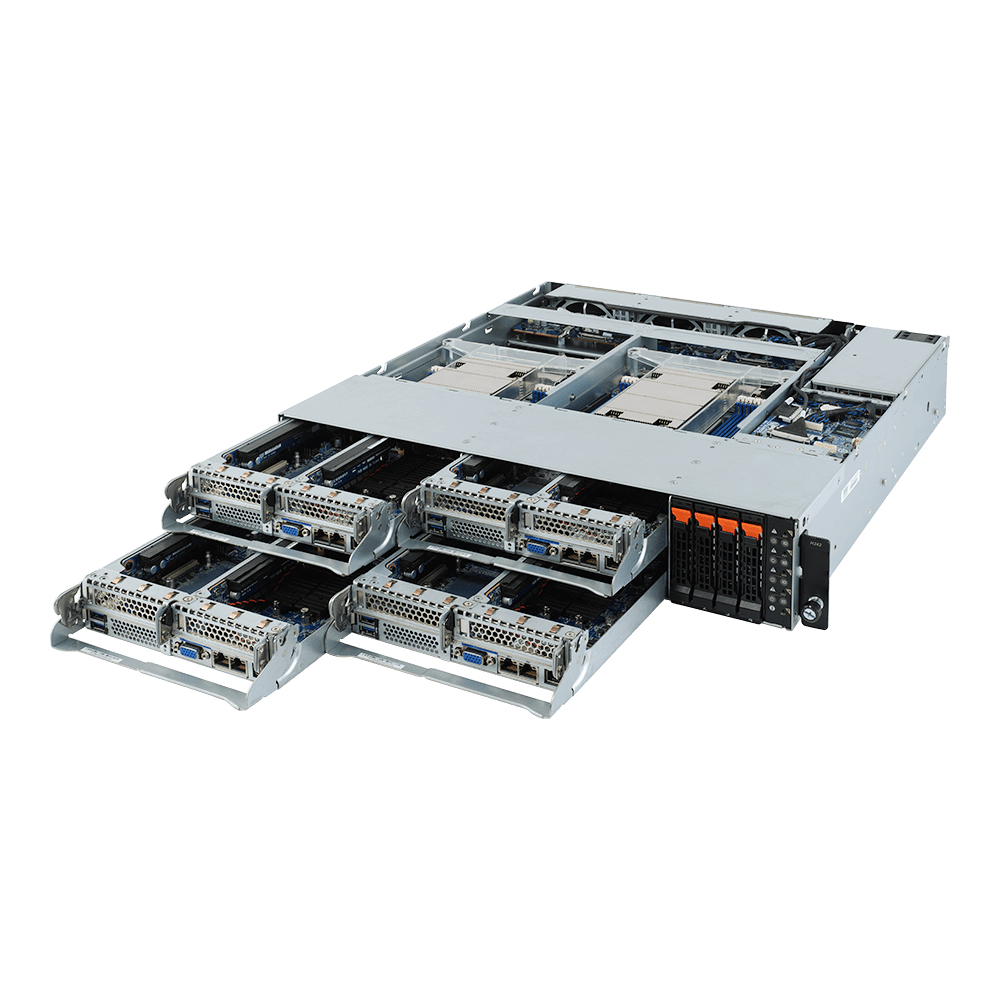

H242-Z11 server barebone Socket SP3 Rack (2U) Black, Grey
Model H242-Z11EAN 889523019825
45 specifications
- ProcessorAMD
- Weight19.7 kg
- ColourBlack, Grey
- Built-in processorNo
- Number of DIMM slots32
- Number of storage drives supported4
Overview
- Processor
- AMD
- Weight
- 19.7 kg
- Colour
- Black, Grey
- Built-in processor
- No
- Number of DIMM slots
- 32
- Number of storage drives supported
- 4
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- H242-Z11
- Part number
- H242-Z11
- EAN / UPC
- 889523019825
- Also known as
- GIGABYTE H242-Z11 server barebone Socket SP3 Rack (2U) Black, Grey
Specifications
45 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor socket | Socket SP3 |
| Processor family | AMD |
| Number of processors supported | 4 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 32 |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 128 GB |
| Maximum RDIMM memory | 64 GB |
| Memory channels | Octa-channel |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 4 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 4 |
| Supported storage drive types | SSD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2500 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 8 |
| VGA (D-Sub) ports quantity | 4 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 8 |
| Number of M.2 (M) slots | 8 |
Features
| Specification | Value |
|---|---|
| Backplanes support | Yes |
| Compatible operating systems | Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) Red Hat Enterprise Linux 8.0 ( x64) SUSE Linux Enterprise Server 12 SP4 ( x64) SUSE Linux Enterprise Server 15 SP1 ( x64) Ubuntu 16.04.6 LTS (x64) Ubuntu 18.04.2 LTS (x64) VMware ESXi 6.5 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Grey |
| On/off switch | Yes |
| Reset button | Yes |
| Number of fans | 4 fan(s) |

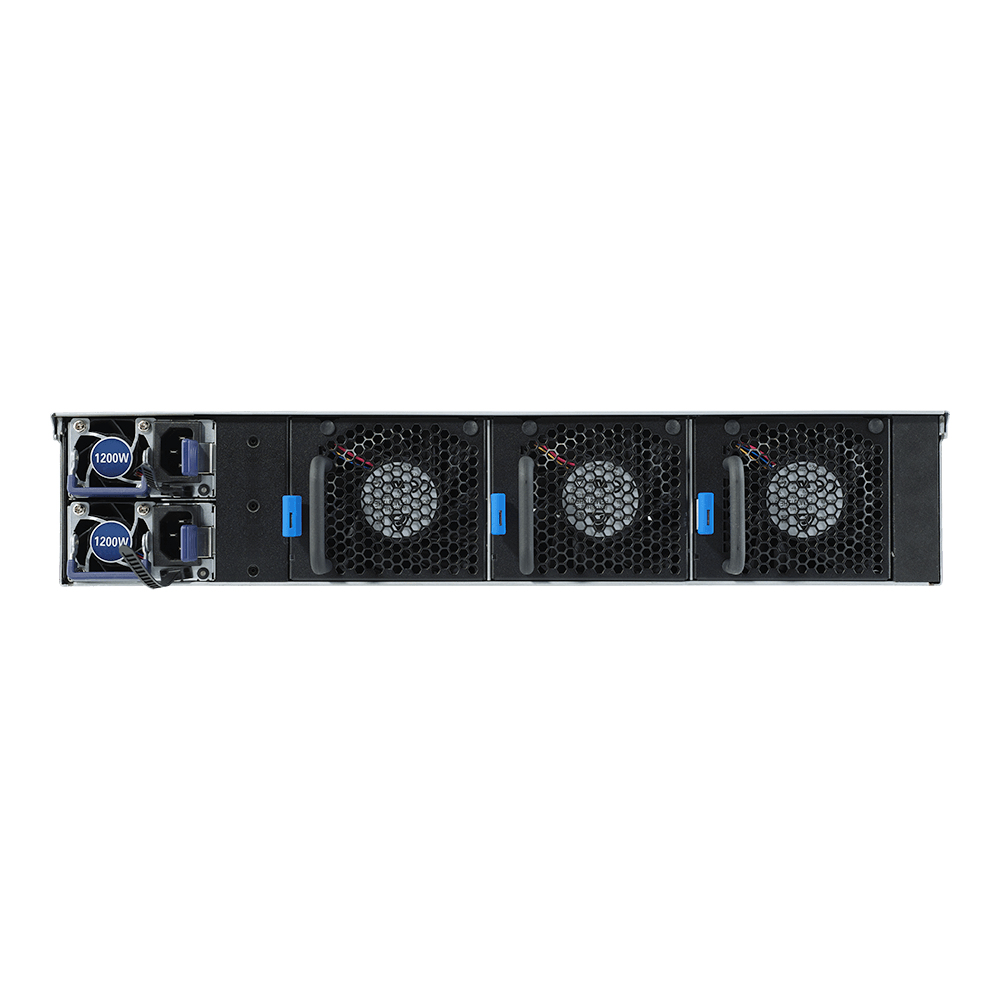

Power
| Specification | Value |
|---|---|
| Power supply | 1200 W |
| Number of main power supplies | 2 |
| Redundant power supply (RPS) support | Yes |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 475 mm |
| Height | 87.5 mm |
| Weight | 19.7 kg |
| Width | 440 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 857 mm |
| Package depth | 670 mm |
| Package height | 280 mm |
