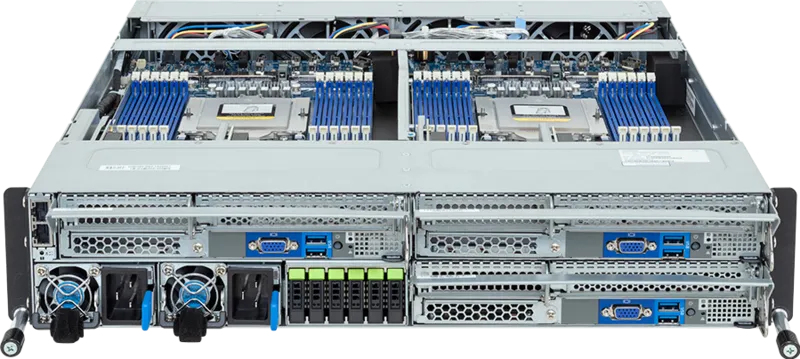

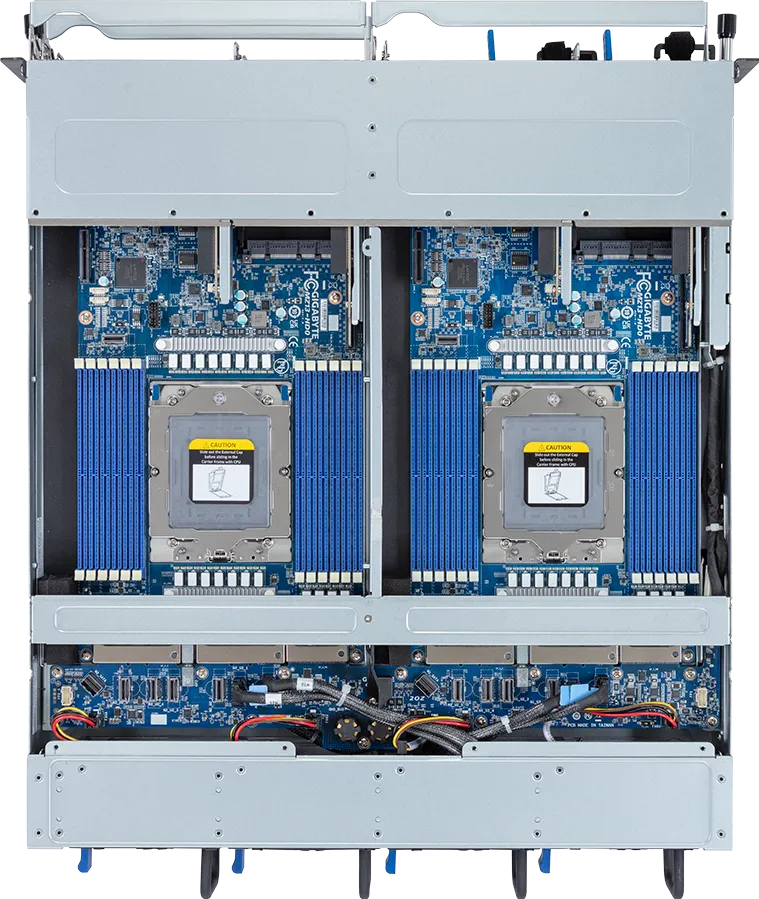

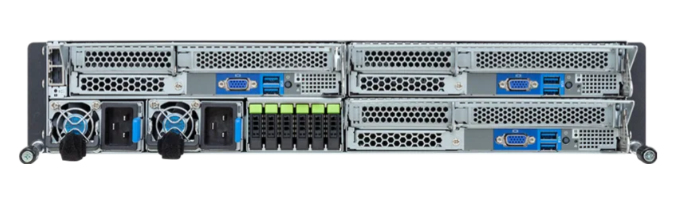

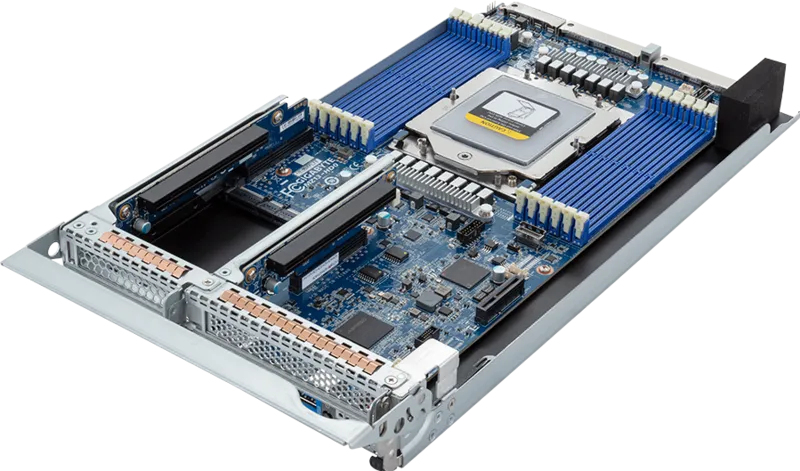

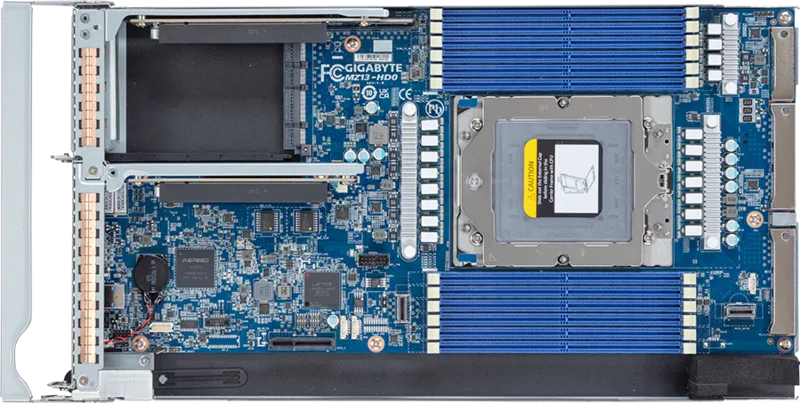

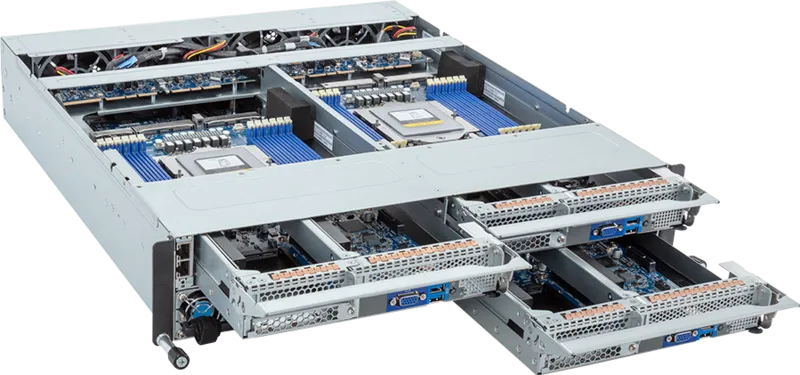

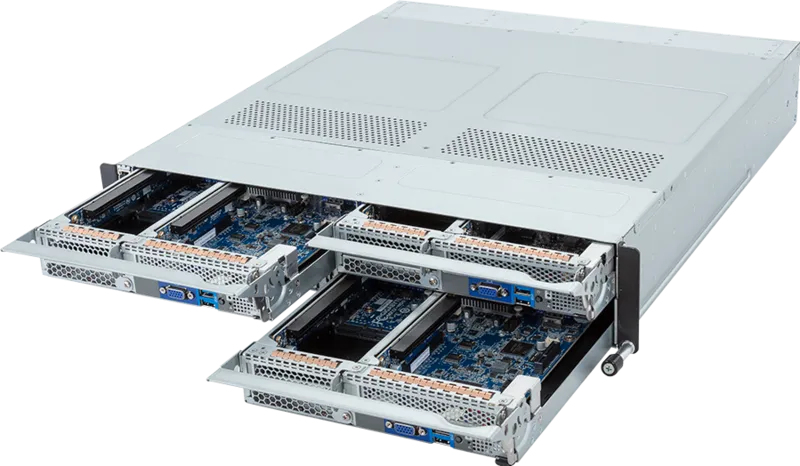

GIGABYTE H223-Z10-AAP1 AMD SoC Socket SP5 Rack (2U) Black, Steel
GIGABYTE

H223-Z10-AAP1 AMD SoC Socket SP5 Rack (2U) Black, Steel

Model H223-Z10-AAP1Part no. 6NH223Z10DR000AAP1EAN 4719331851439

53 specifications
  • Weight17.4 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots36
  • Number of storage drives supported9
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
17.4 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
36
Number of storage drives supported
9
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
H223-Z10-AAP1
Part number
6NH223Z10DR000AAP1
EAN / UPC
4719331851439
Also known as
GIGABYTE H223-Z10-AAP1 AMD SoC Socket SP5 Rack (2U) Black, Steel

Specifications

53 specifications in 12 groups

Processor

Built-in processorNo
Motherboard chipsetAMD SoC
Processor socketSocket SP5
Number of processors supported3
Compatible processor seriesAMD EPYC 9004

Memory

Number of DIMM slots36
Supported memory typesDDR5-SDRAM
Memory channelsDodeca-channel

Storage

Number of storage drives supported9
Hot-swap HDD baysYes
Storage drive sizes supportedE1.S,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesPCI Express 4.0
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Ethernet LAN (RJ-45) ports0
VGA (D-Sub) ports quantity3

Expansion slots

PCI Express x16 (Gen 5.x) slots6
Number of M.2 (M) slots3

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsStatus
On/off switchYes
Cooling typeActive
Fan diameter8 cm
Heat sink includedYes

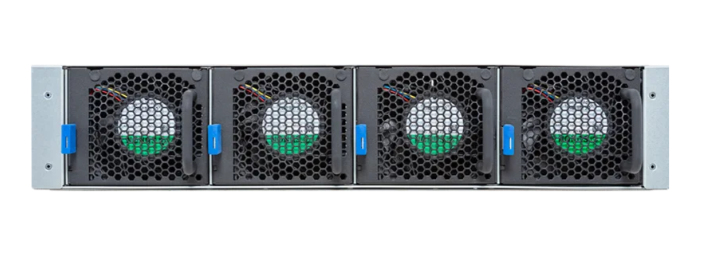

Number of fans4 fan(s)

Power

Power supply3000 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current15.5 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth500 mm
Height87.5 mm
Weight17.4 kg
Width447.8 mm

Packaging data

Packaging content1 x H223-Z10-AAP1; 3 x CPU heatsinks; 1 x L-shape Rail kit
Package width862 mm
Package depth676 mm
Package height294 mm
Package weight28.2 kg
