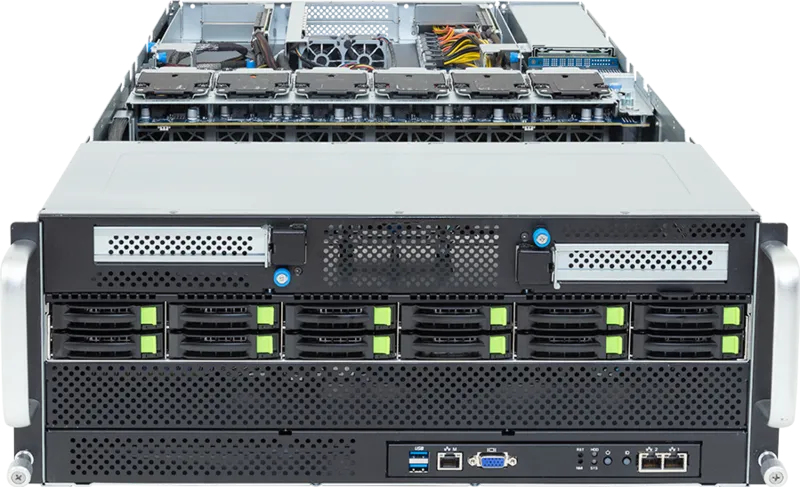

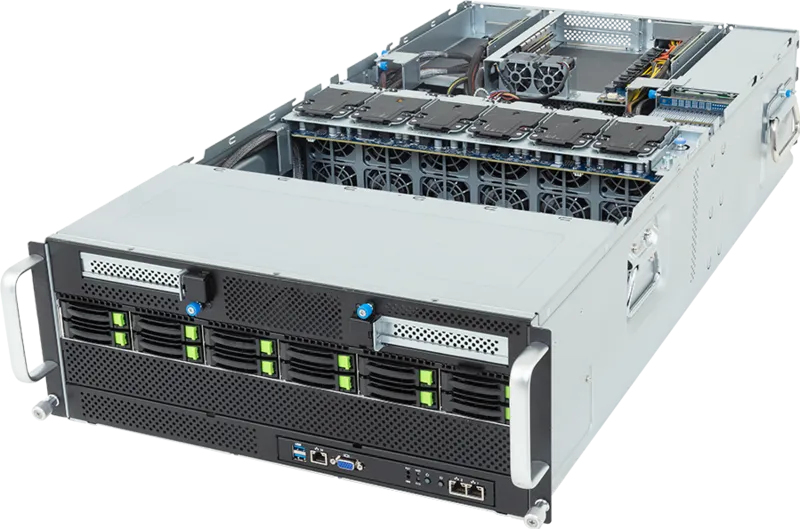

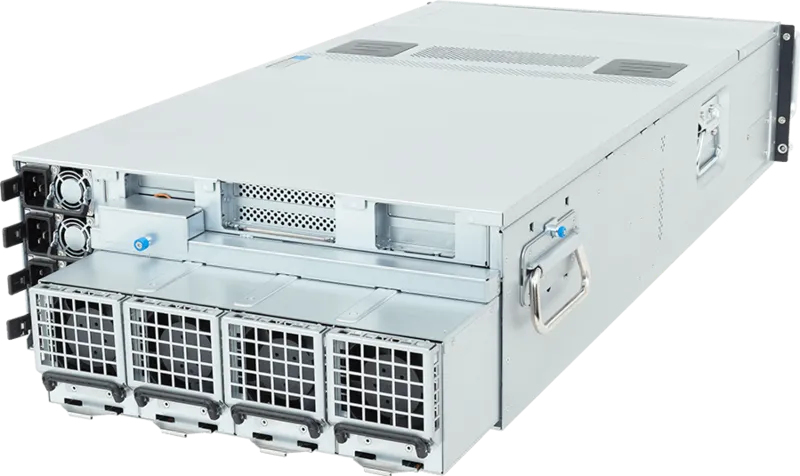

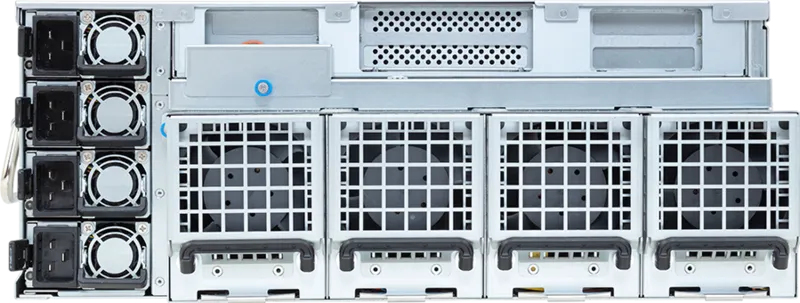

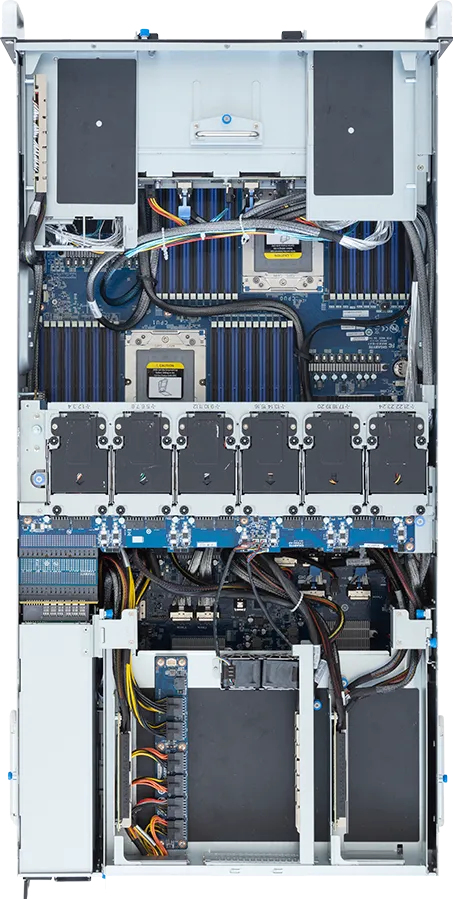

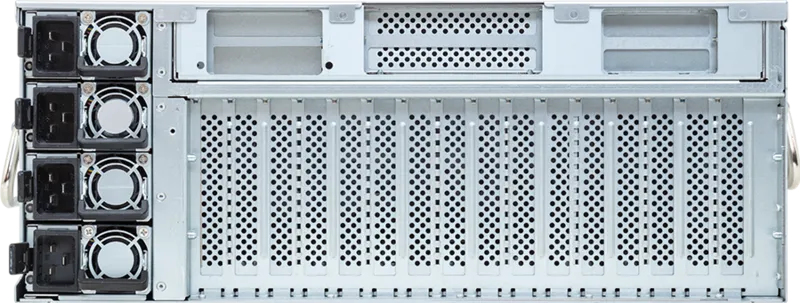

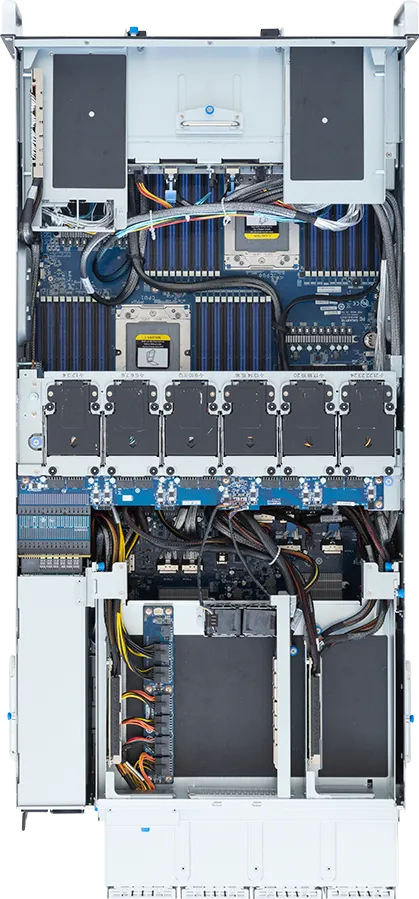

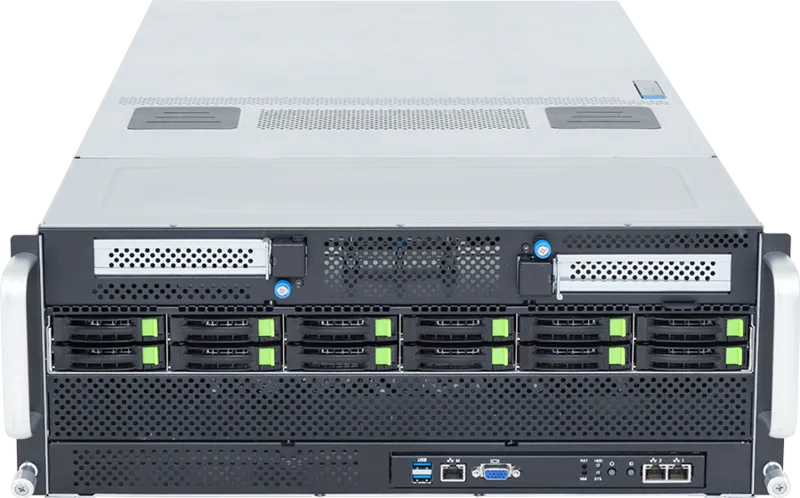

G494-ZB4-AAP2 AMD SoC Socket SP5 Rack (4U) Black, Steel
GIGABYTE

G494-ZB4-AAP2 AMD SoC Socket SP5 Rack (4U) Black, Steel

Model G494-ZB4-AAP2Part no. 6NG494ZB4DR000ACP2

57 specifications
  • Weight66.8 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots48
  • Number of storage drives supported14
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
66.8 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
48
Number of storage drives supported
14
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
G494-ZB4-AAP2
Part number
6NG494ZB4DR000ACP2
Also known as
GIGABYTE G494-ZB4-AAP2 AMD SoC Socket SP5 Rack (4U) Black, Steel

Specifications

57 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetAMD SoC
Processor socketSocket SP5
Number of processors supported2
Compatible processor seriesAMD EPYC 9004, AMD EPYC 9005

Memory

Number of DIMM slots48
Supported memory typesDDR5-SDRAM
Memory channelsDodeca-channel

Storage

Number of storage drives supported14
Hot-swap HDD baysYes
Number of 2.5" bays12
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, PCI Express 5.0, Serial Attached SCSI (SAS)-4, PCI Express 3.0
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express x16 (Gen 5.x) slots14

Features

Trusted Platform Module (TPM)Yes

Design

Chassis typeRack (4U)
Product colourBlack, Steel
LED indicatorsHDD, SSD, System
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter6 cm
Heat sink includedYes
Number of fans14 fan(s)

Power

Power supply3000 W
Number of main power supplies4
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported4
Number of redundant power supplies installed4
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current14.5 - 16 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth880 mm
Height176 mm
Weight66.8 kg
Width448 mm

Packaging data

Packaging content1 x G494-ZB4-AAP2; 2 x CPU fansinks; 8 x GPU power cables (16-pin, 150mm); 1 x L-shape Rail kit
Package width1300 mm
Package depth800 mm
Package height439 mm
Package weight68.8 kg
