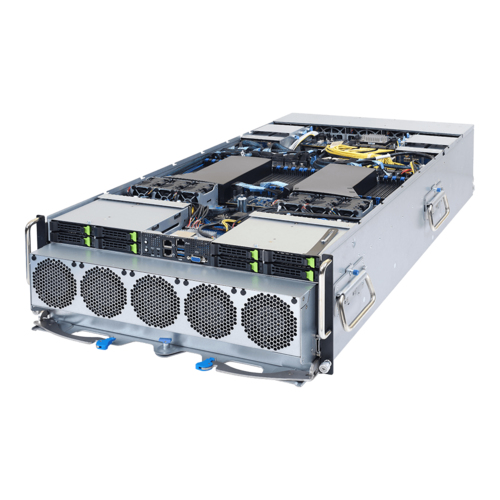

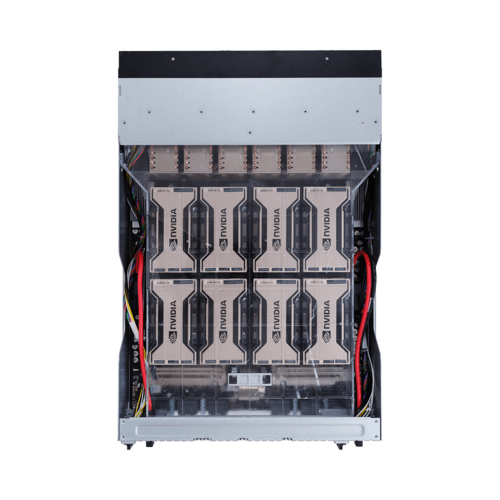

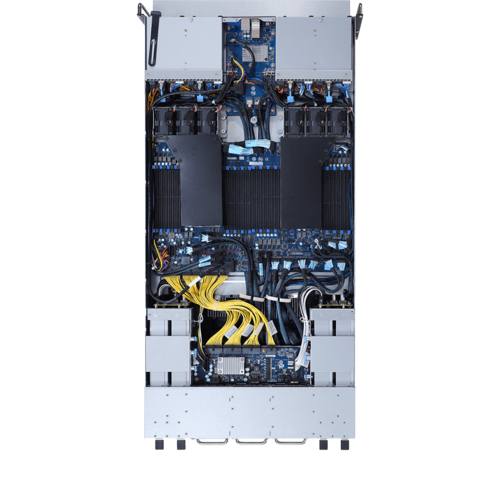

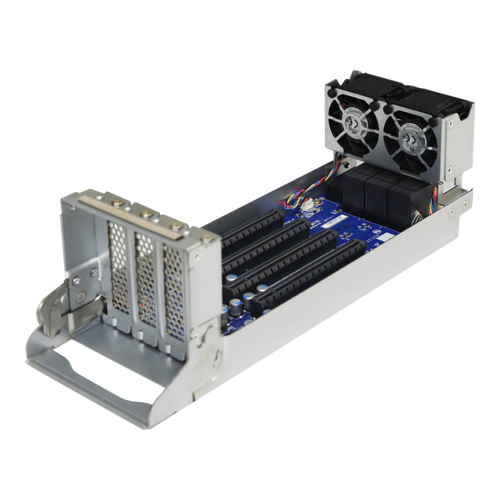

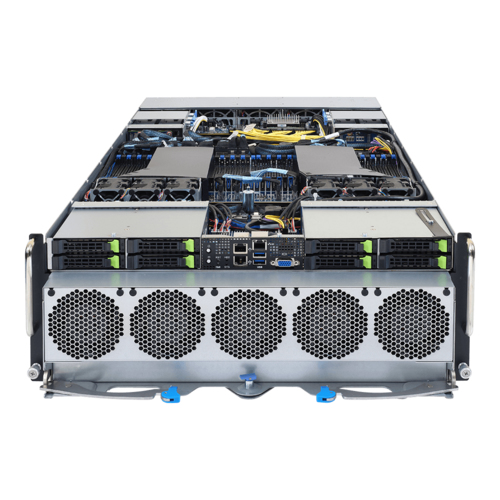

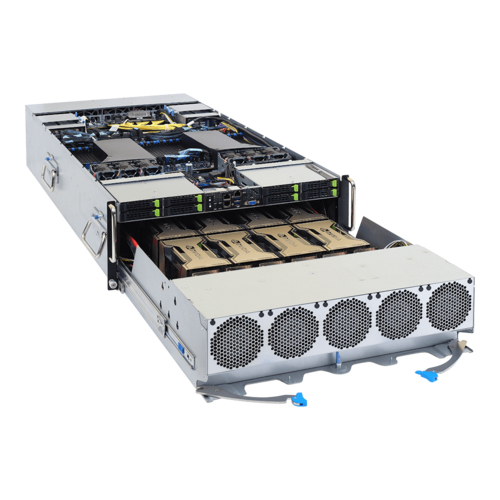

GIGABYTE G492-ZD0 Socket SP3 Rack (2U)
GIGABYTE

G492-ZD0 Socket SP3 Rack (2U)

Model G492-ZD0Part no. 6NG492ZD0MR-00EAN 4719331600570

49 specifications
  • ProcessorAMD
  • Built-in processorNo
  • Number of DIMM slots32
  • Number of storage drives supported8
  • On-board graphics card modelAspeed AST2500
  • Ethernet LANYes
See all specifications

Overview

Processor
AMD
Built-in processor
No
Number of DIMM slots
32
Number of storage drives supported
8
On-board graphics card model
Aspeed AST2500
Ethernet LAN
Yes
Brand
GIGABYTE
Model
G492-ZD0
Part number
6NG492ZD0MR-00
EAN / UPC
4719331600570
Also known as
GIGABYTE G492-ZD0 Socket SP3 Rack (2U)

Specifications

49 specifications in 13 groups

Processor

Built-in processorNo
Processor socketSocket SP3
Processor manufacturerAMD
Processor familyAMD
Number of processors supported2
AMD Opteron series7000

Memory

Number of DIMM slots32
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities2GB, 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Supported RDIMM clock speeds2933,3200 MHz

Storage

Number of storage drives supported8
Hot-swap HDD baysYes
Number of 2.5" bays8
Supported storage drive interfacesM.2, Serial ATA

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Copper ethernet cabling technology10BASE-T
LAN controllerIntel® X550-AT2

Ports & interfaces

Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express slots version4.0
PCI Express x16 slots8

Features

Trusted Platform Module (TPM)Yes
Compatible operating systemsWindows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 18.04.5 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.7

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (2U)
LED indicatorsHDD, Status
On/off switchYes
Reset buttonYes
Fan diameter8 cm
Number of fans21 fan(s)

Power

Power supply3000 W
Number of main power supplies3
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported1
AC input voltage200 - 240 V
AC input frequency50 - 60 Hz
Input current15.8 A
DC output current (+5 V)95.6 A
DC output current (+12 V)3.5 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Packaging data

Package width1176 mm
Package depth782 mm
Package height822 mm
