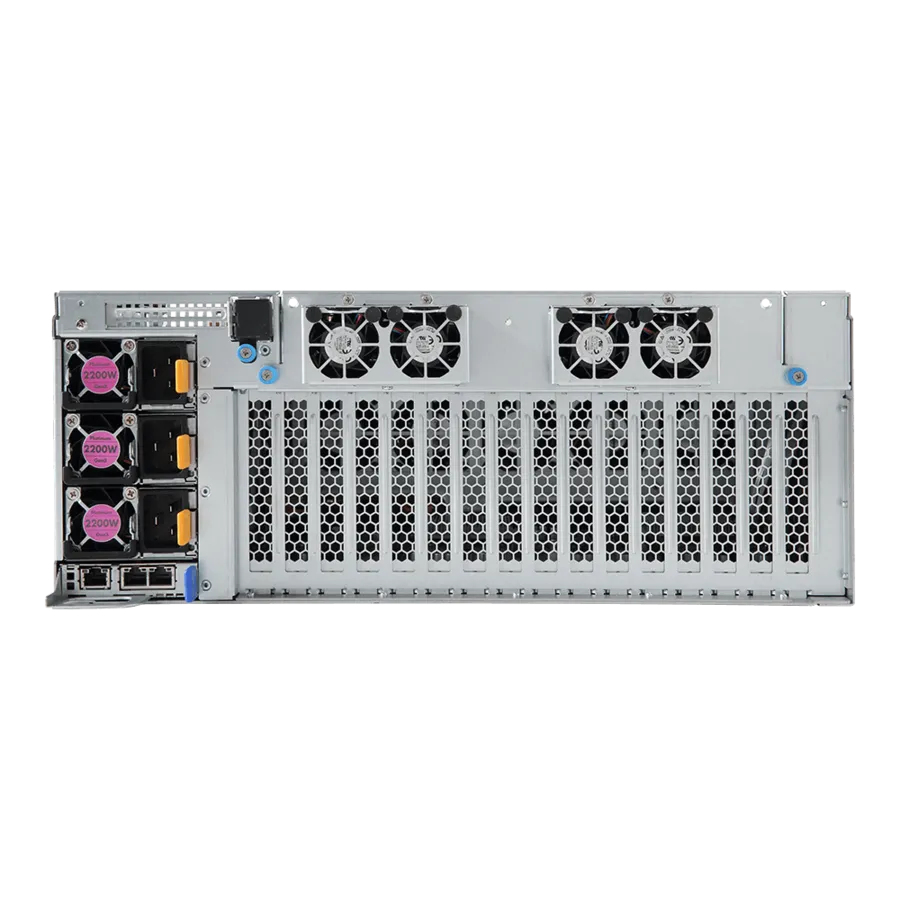

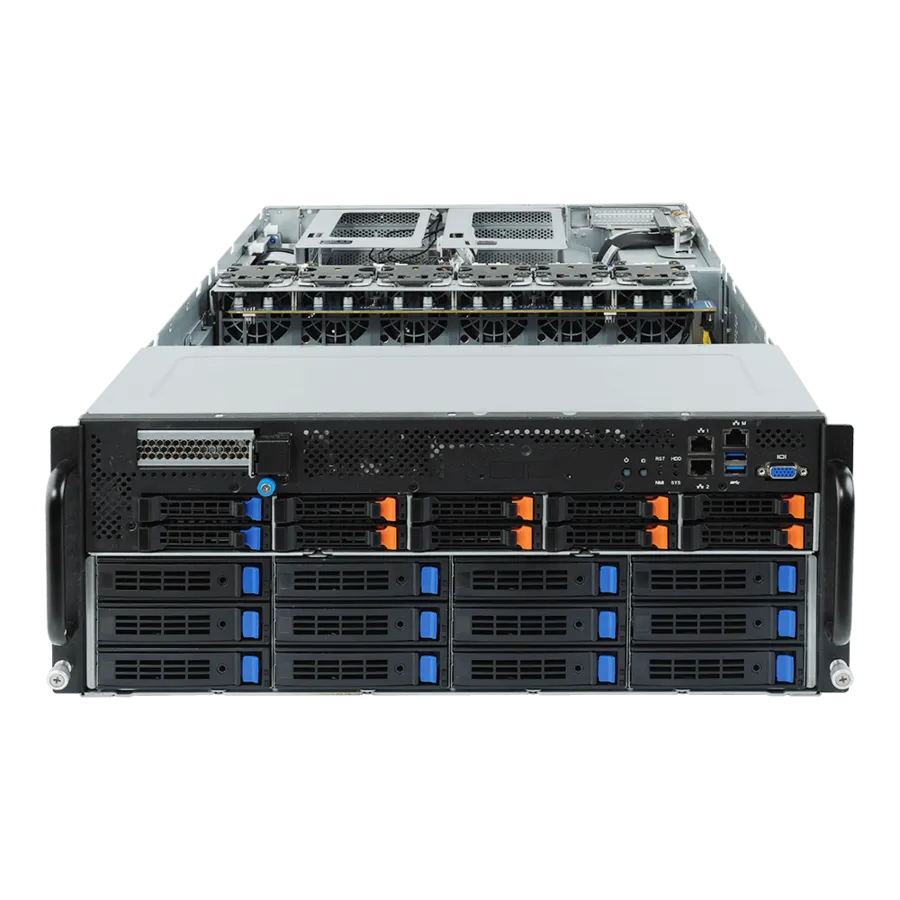

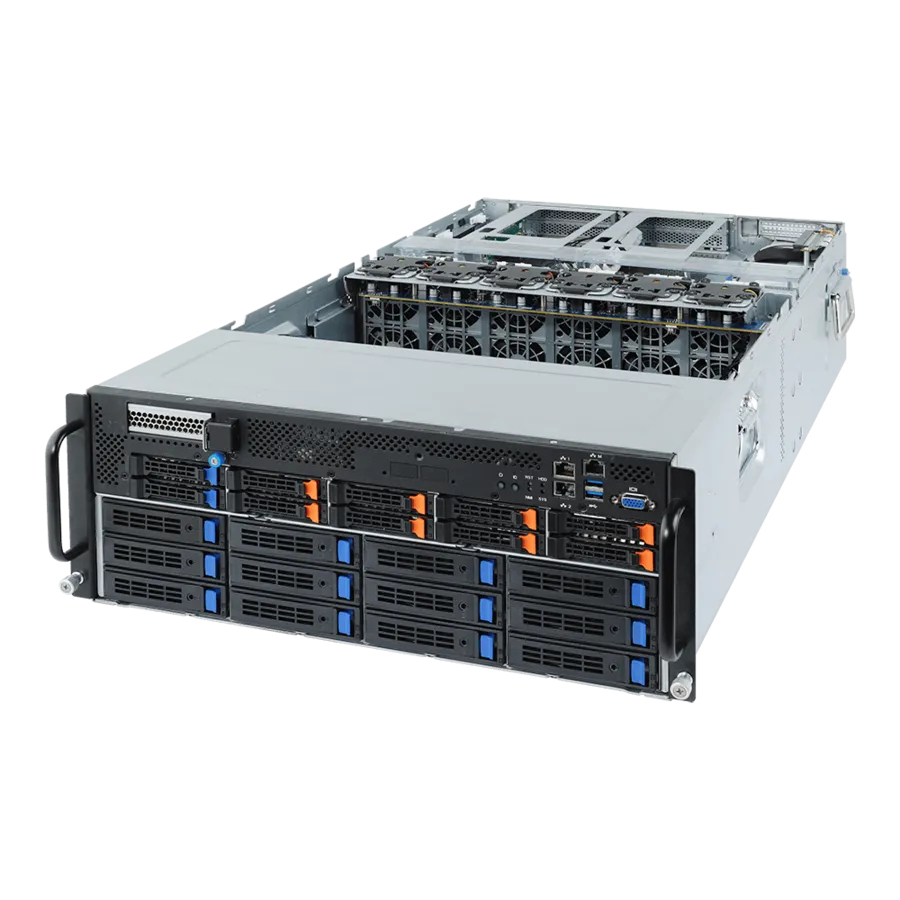

GIGABYTE G482-Z50 Socket SP3 Rack (4U)
GIGABYTE

G482-Z50 Socket SP3 Rack (4U)

Model G482-Z50Part no. 6NG482Z50MR-00EAN 4719331191412

45 specifications
  • Built-in processorYes
  • Number of DIMM slots32
  • Number of storage drives supported8
  • On-board graphics card modelAspeed AST2500
  • Ethernet LAN (RJ-45) ports2
  • PCI Express x16 slots9
See all specifications

Overview

Built-in processor
Yes
Number of DIMM slots
32
Number of storage drives supported
8
On-board graphics card model
Aspeed AST2500
Ethernet LAN (RJ-45) ports
2
PCI Express x16 slots
9
Brand
GIGABYTE
Model
G482-Z50
Part number
6NG482Z50MR-00
EAN / UPC
4719331191412, 5054444317755
Also known as
GIGABYTE G482-Z50 Socket SP3 Rack (4U)

Specifications

45 specifications in 14 groups

Processor

Built-in processorYes
Processor socketSocket SP3
Number of processors supported2

Memory

Number of DIMM slots32
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities8GB, 16GB, 32GB, 64GB, 128GB
Supported RDIMM clock speeds2933,3200 MHz
Memory channelsOcta-channel

Storage

Number of storage drives supported8
Hot-swap HDD baysYes
Number of 2.5" bays8

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s

Ports & interfaces

Ethernet LAN (RJ-45) ports2

Expansion slots

PCI Express x16 slots9

Features

Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Backplanes supportYes
Compatible operating systemsWindows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 18.04.5 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.7

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (4U)
LED indicatorsHDD, LAN, Power
On/off switchYes
Reset buttonYes
Fan diameter6 cm
Number of fans12 fan(s)

Power

Power supply2200 W
Number of main power supplies3
AC input voltage200 - 240 V
AC input frequency47 - 63 Hz
DC output current (+12 V)95.6 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth880 mm
Height176 mm
Width448 mm

Packaging data

Packaging content1 x G482-Z53 2 x CPU fan-sinks 1 x Rail kit
Package width1109 mm
Package depth609 mm
Package height606 mm
