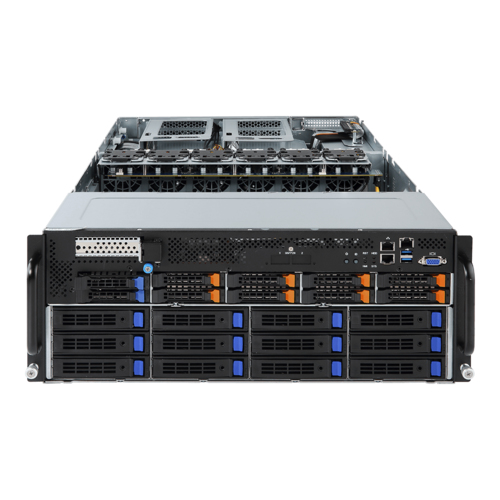

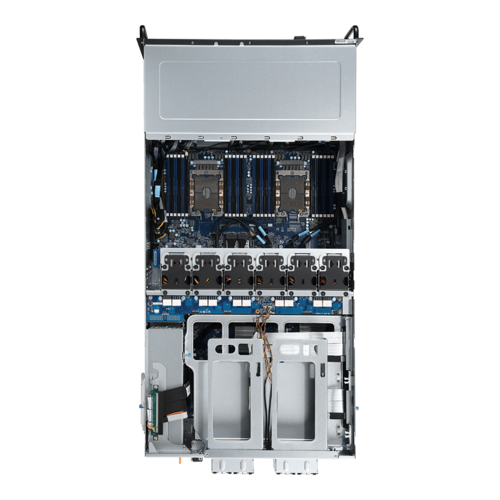

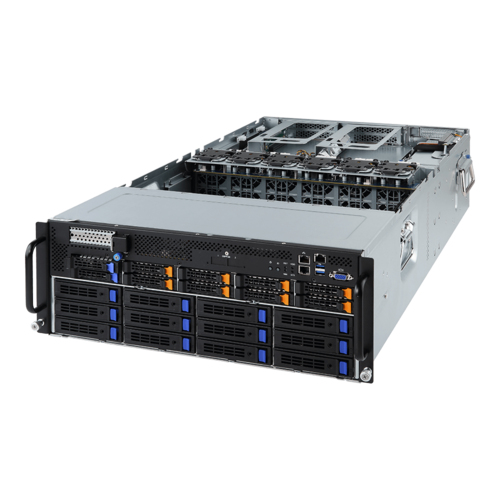

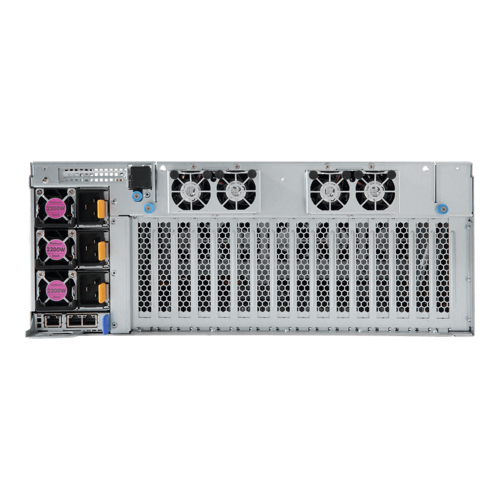

GIGABYTE G481-HA0 Intel® C621 LGA 3647 (Socket P) Rack (4U)
GIGABYTE

G481-HA0 Intel® C621 LGA 3647 (Socket P) Rack (4U)

Model G481-HA0Part no. 6NG481HA0MR-00EAN 4719331181246

51 specifications
  • ProcessorIntel® Xeon® Scalable
  • Weight39 kg
  • Built-in processorNo
  • Number of DIMM slots24
  • Number of storage drives supported22
  • On-board graphics card modelAspeed AST2500
See all specifications

Overview

Processor
Intel® Xeon® Scalable
Weight
39 kg
Built-in processor
No
Number of DIMM slots
24
Number of storage drives supported
22
On-board graphics card model
Aspeed AST2500
Brand
GIGABYTE
Model
G481-HA0
Part number
6NG481HA0MR-00
EAN / UPC
4719331181246
Also known as
GIGABYTE G481-HA0 Intel® C621 LGA 3647 (Socket P) Rack (4U)

Specifications

51 specifications in 14 groups

Processor

Built-in processorNo
Motherboard chipsetIntel® C621
Processor socketLGA 3647 (Socket P)
Processor manufacturerIntel
Processor familyIntel® Xeon® Scalable

Memory

Number of DIMM slots24
Supported memory typesDDR4-SDRAM
Supported RDIMM clock speeds2133,2400,2666,2933 MHz
Memory voltage1.2 V
Memory channelsHexa-channel

Storage

Number of storage drives supported22
Hot-swap HDD baysYes
Number of 2.5" bays10
Number of 3.5" bays12
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA III
RAID levels0, 1, 5, 10

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® X550-AT2

Ports & interfaces

Ethernet LAN (RJ-45) ports4
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express slots version3.0
PCI Express x16 slots12

Features

Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Compatible operating systemsWindows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 6.9 (x64) or later Red Hat Enterprise Linux 7.3 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.2 (x64) or l

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (4U)
LED indicatorsHDD, Power, System
Fan diameter6 cm
Number of fans10 fan(s)

Power

Power supply2200 W
Number of main power supplies3
AC input voltage200 - 240 V
AC input frequency47 - 63 Hz
Input current12.6 A
DC output current (+12 V)178.1 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth176 mm
Height880 mm
Weight39 kg
Width448 mm

Packaging data

Packaging content1 x G481-HA0 2 x CPU heatsinks 1 x Rail kit 1 x VROC module 2 x Non-Fabric CPU carrier
Package weight58.1 kg
